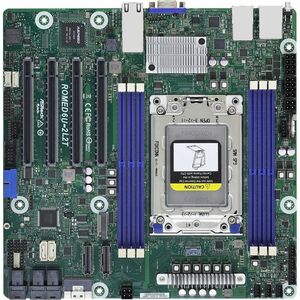

ASRock Rack ROMED6U-2L2T Server Motherboard — AMD EPYC, LGA 4094, Micro ATX

Powerful, scalable, and designed for dense data-center deployments, the ASRock Rack ROMED6U-2L2T Server Motherboard blends enterprise-grade reliability with a compact Micro ATX footprint. Built around an AMD chipset and the Socket SP3 LGA-4094 platform, this board unlocks the performance of AMD EPYC processors while delivering flexible memory configurations, expansive storage options, and essential I/O for modern servers. Whether you’re configuring a virtualization host, a high-availability database node, or a compact HPC node, the ROMED6U-2L2T is engineered to handle demanding workloads with efficiency, reliability, and ease of management.

• Compact Micro ATX form factor (9.6" x 9.6") delivers server-grade capability in a space-saving footprint, enabling dense chassis configurations and flexible rack deployments without sacrificing expandability.
• Supports AMD EPYC processors via Socket SP3 (LGA-4094), delivering enterprise-class performance, scalable core counts, and robust virtualization capabilities for data-intensive workloads.
• Memory versatility with 6 DIMM slots supporting DDR4 SDRAM up to 256 GB using DIMM, RDIMM, LRDIMM, or NVDIMM types—providing options for ECC reliability, memory density, and non-volatile persistence.
• Storage puissance with 31 SATA interfaces, enabling extensive onboard storage connectivity for databases, software-defined storage, and large-scale data collection directly from the motherboard.
• Onboard I/O including Gigabit Ethernet and DisplayPort, offering essential management, remote access, and local display output for headless operation or quick setup verification in server environments.

Technical Details of ASRock Rack ROMED6U-2L2T Server Motherboard

• Model: ROMED6U-2L2T
• Form Factor: Micro-ATX (9.6" x 9.6")
• CPU Socket: Socket SP3 (LGA 4094)
• CPU Support: AMD EPYC processors
• Chipset: AMD chipset
• Memory Slots: 6 x DIMM
• Memory Type: DDR4 SDRAM; supports DIMM, RDIMM, LRDIMM, NVDIMM
• Maximum RAM: 256 GB
• Storage Interfaces: 31 x SATA interfaces
• Networking: Gigabit Ethernet
• Video Output: DisplayPort

how to install ASRock Rack ROMED6U-2L2T

Preparing for installation begins with selecting a compatible server chassis and power supply that can accommodate a Micro ATX motherboard and the power requirements of your AMD EPYC processor. Ensure you have the correct CPU cooler and thermal solution; EPYC processors can generate significant heat under load, so a reliable cooling strategy is essential for sustained performance.

Step 1: Install the AMD EPYC processor into the Socket SP3 (LGA 4094) socket. Align the processor with the socket’s gold triangle indicator, seat it firmly without forcing, and secure the locking mechanism. Apply an appropriate thermal interface material and mount the compatible CPU cooler according to the cooler’s instructions to ensure optimal heat dissipation.

Step 2: Install memory modules into the six DIMM slots. Follow the motherboard’s memory population guidelines for optimal performance and ECC reliability, especially if you are using RDIMM, LRDIMM, or NVDIMM modules. Ensure modules are fully seated and that the total memory capacity does not exceed the 256 GB limit. When using non-volatile DIMMs (NVDIMM), verify BIOS settings for persistence and endurance features if available.

Step 3: Connect onboard storage devices or add-on controllers to the 31 SATA interfaces. Plan your storage topology—RAID, JBOD, or pass-through—according to your workload requirements. Route data cables for clear airflow and minimal interference with other components, and label connections for easy maintenance and future expansion.

Step 4: Attach power and data cables, then mount the ROMED6U-2L2T into the chassis. Ensure all standoffs are properly seated and the motherboard is grounded to prevent static damage. Double-check that all connectors (SATA, power, and management headers if present) are firmly connected before powering on.

Step 5: Power up and enter the BIOS/UEFI setup. Configure boot order, memory profiles (XMP/DC DIMM profiles if supported in BIOS), and any server-management features. Update the BIOS firmware to the latest version to maximize stability, security, and compatibility with newer EPYC generations. If you plan remote management, configure IPMI/IMM or similar out-of-band interfaces per your environment’s standards, then save settings and reboot to verify POST and initial-detection of installed hardware.

Frequently asked questions

• Q: What CPUs are compatible with the ROMED6U-2L2T motherboard?
  A: It supports AMD EPYC processors via the Socket SP3 (LGA 4094) socket, enabling enterprise-grade performance for virtualization, databases, and compute-intensive workloads.
• Q: How much memory can I install on this board?
  A: Up to 256 GB of DDR4 SDRAM across 6 DIMM slots, with support for DIMM, RDIMM, LRDIMM, and NVDIMM modules for flexibility and reliability.
• Q: How many SATA ports does it provide?
  A: The ROMED6U-2L2T includes 31 SATA interfaces for extensive direct storage connectivity, suitable for large storage arrays and data-intensive applications.
• Q: What form factor is this motherboard?
  A: Micro ATX, measuring 9.6" x 9.6", offering a compact footprint while preserving server-grade connectivity and expansion options.
• Q: What are the built-in I/O options?
  A: It includes Gigabit Ethernet for network connectivity and DisplayPort for onboard video output, supporting headless management and local diagnostics in server deployments.
• Q: Is this motherboard suitable for dense server environments?
A: Yes. Its Micro ATX form factor, large SATA-capacity, and AMD EPYC support make it well-suited for compact, high-density server racks and virtualization hosts. Always verify compatibility with your chassis, power supply, and cooling solution.
