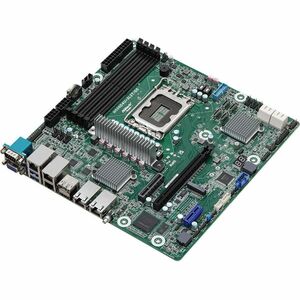

ASRock Rack W680D4U-2L2T/G5 Server Motherboard — Intel W680, LGA-1700, Micro ATX

Engineered for compact data centers, edge deployments, and reliable small-form-factor server builds, the ASRock Rack W680D4U-2L2T/G5 Server Motherboard combines enterprise-grade features with a space-saving Micro ATX footprint. Built around the Intel W680 chipset and the LGA-1700 socket, this board is designed to handle the latest 14th Gen Intel Core processors while delivering robust memory performance, flexible storage options, and solid onboard connectivity. Whether you’re constructing a compact virtualization node, a dedicated file and media server, or a compact NAS, this motherboard provides the core capabilities you need with a streamlined, space-efficient design.

• Powerful processing and memory platform: Intel W680 chipset paired with the LGA-1700 socket supports 14th Gen Intel Core processors, enabling strong single-thread and multi-thread performance for virtualization, databases, and multi-user workloads. The board offers 4 DDR5 SDRAM UDIMM slots with a maximum of 128 GB total memory, balancing high bandwidth with efficient power use for dense server configurations.
• Flexible storage and I/O: With 8 SATA interfaces, you gain ample drives and redundancy options for OS installations, data storage, and scratch space. Onboard video outputs include both HDMI and DisplayPort, offering convenient local management and test setups without needing separate GPUs in many configurations. The combination of these interfaces makes it easy to build reliable storage servers, media servers, or light-duty compute nodes in tight spaces.
• Compact, enterprise-ready form factor: Micro ATX (9.6" x 9.6") delivers a smaller footprint compared with full‑size server boards while delivering server-grade capabilities. This form factor is ideal for compact chassis, rack‑mount enclosures with space constraints, or dedicated edge servers requiring strong expandability in a restrained footprint.
• Reliability and network connectivity: The board includes Gigabit Ethernet for dependable network throughput essential for backups, remote management, and server administration. The board’s design emphasizes stable operation under heavier workloads, with careful board layout and quality components that are well-suited for 24/7 operation in smaller data-center or edge environments.
• Expandable, future-ready design: The combination of PCIe-ready resources (via the LGA-1700 platform), multiple memory slots, and abundant SATA storage options provides a flexible upgrade path. This makes the W680D4U-2L2T/G5 well-suited for evolving workloads—from virtualization to light container deployments—without sacrificing compact form factor or power efficiency.

Technical Details of ASRock Rack W680D4U-2L2T/G5 Server Motherboard

• Product: ASRock Rack W680D4U-2L2T/G5 Server Motherboard
• Chipset: Intel W680
• CPU Socket: LGA-1700
• Form Factor: Micro ATX (9.6" x 9.6")
• Memory: 4 x DDR5 SDRAM UDIMM slots, maximum 128 GB total
• Memory Type: DDR5 SDRAM, UDIMM
• Storage: 8 x SATA interfaces
• Graphics/Video: HDMI and DisplayPort onboard outputs
• Networking: Gigabit Ethernet
• Processor Support: Supports Intel Core 14th Gen processors (LGA-1700 platform)
• Other: Micro-ATX server board designed for compact deployments with enterprise-grade reliability

how to install ASRock Rack W680D4U-2L2T/G5 Server Motherboard

• Prepare your chassis and workspace: Ensure you have an anti-static mat or grounding strap, the proper standoffs for a Micro ATX board, and a clean workspace before handling any server components. Have your power supply ready and accessible for a safe, controlled install.
• Install the processor: Open the LGA-1700 socket lever, align the CPU with the socket using the correct orientation, gently place it into position, and secure the lever. Apply a minimal amount of thermal interface material if your cooling solution requires it, then install the CPU cooler as per your cooler’s instructions.
• Attach memory modules: Insert the DDR5 UDIMMs into the four memory slots, aligning notches with the connector keys. Seat each DIMM firmly until the latches lock on both sides. Verify memory configuration in the BIOS to ensure the modules are detected correctly and operating at the appropriate speed.
• Connect storage and I/O: Attach your SATA drives or drive cages to the 8 SATA ports, following the motherboard and chassis guidelines for drive orientation and cable routing. Connect essential I/O cables (front-panel USB, power LED, reset switch) as needed, and route cables to maintain airflow and serviceability.
• Power and BIOS setup: Install the motherboard into the chassis with the I/O shield in place. Connect the power supply cables, including main power and CPU power connectors, and attach any required fan power leads. Power on and enter the BIOS/UEFI to configure boot order, enable virtualization features if needed, set memory speeds (e.g., XMP profiles if supported and desired), and verify that all components (CPU, RAM, SATA ports) are recognized. Update the BIOS if a newer version is available to ensure compatibility with the latest 14th Gen Intel Core processors and memory.
• Final checks and deployment: After confirming system stability in BIOS, install your chosen operating system or hypervisor, apply storage configuration, and set up your network interfaces. Run stress tests and verify temperatures and fan behavior under load to guarantee reliable operation in your expected workload environment.

Frequently asked questions

• Q: What CPU socket and chipset does the ASRock Rack W680D4U-2L2T/G5 use? A: It uses the LGA-1700 socket on the Intel W680 chipset, designed to support contemporary Intel Core processors and related server workloads.
• Q: How much memory can I install on this motherboard? A: You can install up to 128 GB of DDR5 SDRAM across the four UDIMM memory slots.
• Q: How many SATA drives are supported? A: The board provides 8 SATA interfaces for storage connectivity and expansion.
• Q: What video outputs are available on the board? A: The motherboard includes onboard HDMI and DisplayPort outputs for local display or management tasks.
• Q: What is the form factor and physical size? A: This is a Micro ATX motherboard with dimensions of 9.6 inches by 9.6 inches, suitable for compact server chassis and edge deployments.
