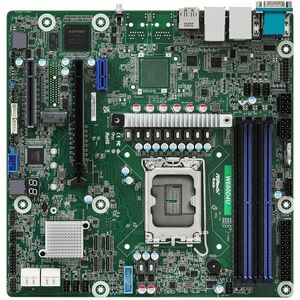

ASRock Rack W680D4U Server Motherboard - Intel W680 Chipset

The ASRock Rack W680D4U is a compact, high-performance server motherboard built around the Intel W680 chipset and designed for dependable, space-efficient deployments. With a Socket LGA-1700 socket compatible with Intel Core 13th and 14th Gen processors, this Micro ATX board brings enterprise-grade capability to compact builds, small form factor servers, and edge applications. It merges robust memory support, ample storage options, and flexible I/O into a single, streamlined platform that suits virtualization, media servers, and lightweight data services. Whether you’re outfitting a compact rack or a small office server, the W680D4U emphasizes simplicity of setup, easy upgrades, and reliable sustainment in a compact 9.6" x 9.6" footprint.

• Compact, enterprise-ready platform — The ASRock Rack W680D4U is a Micro ATX motherboard purpose-built for dense server deployments. Its 9.6" x 9.6" form factor enables efficient space planning in compact chassis while still delivering a server-grade foundation. The combination of the Intel W680 chipset and LGA-1700 socket supports modern CPUs with powerful single-thread and multi-thread performance, ideal for lightly threaded workloads, virtualization hosts, and network services in compressed environments.

• Memory flexibility with DDR5 and ample slots — Equipped with 4 DIMM slots for UDIMM DDR5 memory, the W680D4U delivers up to 48 GB of fast, modern RAM. This configuration supports contemporary workloads that benefit from higher memory bandwidth and improved efficiency, enabling smoother multi-tasking, larger memory footprints for virtualization, and responsive performance in server-side applications. The board’s four DIMM channels provide a balanced memory path for efficient data access under typical server workloads.

• Expansive storage and I/O options — With 8 SATA interfaces, the W680D4U delivers substantial storage connectivity to meet expansion and data capacity needs. This makes it well-suited for storage-intensive roles, such as local caching, media serving, and data aggregation tasks, without requiring additional adapters in many configurations. In addition to storage, the board provides essential display outputs (HDMI and DisplayPort) for quick BIOS access, debugging, or light display needs, along with standard network connectivity to keep servers connected and accessible.

• Flexible, back-end connectivity — The integrated Gigabit Ethernet interface offers straightforward network access for management, data transfer, and remote administration in small- to mid-sized deployments. Video outputs via HDMI and DisplayPort add versatility for local console usage, testing, or standalone media duties in compact server environments. The W680D4U’s design emphasizes practical I/O balance between storage, graphics, and networking for everyday server tasks.

• Ideal for modern core and edge workloads — By supporting Intel Core 14th Gen and 13th Gen processors on the LGA-1700 socket, this motherboard targets users who need modern compute power without stepping into larger, more expensive server boards. It’s a practical choice for virtualization hosts, home labs, edge servers, and small business deployments where efficiency, performance, and compact form factor converge.

Technical Details of ASRock Rack W680D4U

• Form Factor: Micro ATX (9.6" x 9.6")
• Chipset: Intel W680
• CPU Socket: LGA-1700
• Memory: 4 x DIMM, UDIMM DDR5 SDRAM, maximum 48 GB
• Memory Channels: Supports multi-channel memory architecture via 4 slots
• Storage: 8 x SATA interfaces
• Graphics Outputs: HDMI, DisplayPort
• Networking: Gigabit Ethernet
• CPU/Platform Support: Compatible with Intel Core 13th Gen and 14th Gen processors

How to Install ASRock Rack W680D4U

• Prepare your chassis and power supply. Confirm clearance for a Micro ATX board and ensure you have the standard 24-pin ATX and 8-pin (or 4/8-pin) CPU power connectors ready for the motherboard. Read the chassis manual to verify placement options and tool-less mounting features common to compact server builds.

• Install the CPU into the LGA-1700 socket following the processor orientation indicated on the motherboard. Engage the socket lever securely and apply thermal compound if your cooling solution requires it, then install the CPU cooler according to the cooler manufacturer’s instructions to ensure proper heat dissipation.

• Insert DDR5 UDIMM RAM modules into the four memory slots. Align modules with the slot keys, press firmly until they click into place, and confirm that each module is fully seated. For optimal performance, populate memory in recommended channel order as described in the motherboard manual.

• Mount the ASRock Rack W680D4U into the chassis and connect the SATA drives or storage devices to the eight SATA ports. Route cables cleanly to minimize airflow disruption and maintain a tidy interior. Connect the HDMI and DisplayPort cables if you plan to use local display output for BIOS setup or on-board diagnostics.

• Power up and enter BIOS/UEFI to configure basic system settings. Update the BIOS to the latest version if available, configure boot devices, and verify memory initialization. Install your operating system, drivers, and any server management utilities as needed. Validate network connectivity and verify that SATA devices are detected and accessible. Perform a final hardware check before placing the system into production.

Frequently asked questions

• Q: What CPUs are compatible with the ASRock Rack W680D4U?

  A: The board supports Intel Core 13th and 14th Gen processors on the LGA-1700 socket, enabling a modern compute platform for diverse server workloads.

• Q: How much memory can this motherboard support?

  A: It supports up to 48 GB of DDR5 SDRAM across 4 UDIMM slots, providing a balanced capacity for compact server tasks and light virtualization.

• Q: How many SATA drives can be connected?

  A: The board features 8 SATA interfaces, giving you substantial local storage options for data-intensive applications or media serving in compact builds.

• Q: What video outputs are available?

  A: The W680D4U includes both HDMI and DisplayPort outputs for onboard display needs, useful during BIOS setup, troubleshooting, or simple display tasks in a small server environment.

• Q: Is this motherboard suitable for edge or compact data-center applications?

  A: Yes. Its Micro ATX form factor, reliable Intel W680 platform, DDR5 memory support, and built-in storage options make it a practical choice for compact edge servers, small data-center deployments, or lab environments that require a space-efficient, upgrade-friendly foundation.
