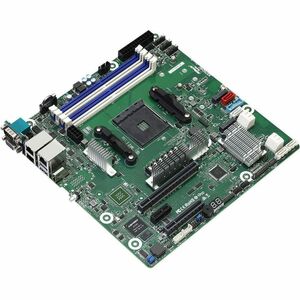

ASRock Rack X570D4U Server Motherboard - AMD X570 Chipset, Socket AM4, Micro ATX

Engineered for compact, high-efficiency server builds, the ASRock Rack X570D4U Server Motherboard delivers enterprise-grade reliability in a versatile Micro ATX form factor. Built around the AMD X570 chipset and the widely supported Socket AM4 ecosystem, this board is designed to power NAS appliances, virtualization nodes, and small business servers with solid performance, expandability, and long-term dependability. Its compact footprint makes it an ideal choice for dense rack enclosures or compact workstation deployments where space is at a premium but performance cannot be compromised.

At the heart of the X570D4U is compatibility with the modern Ryzen platform. It supports AMD Ryzen 5000 Series Desktop Processors, giving you access to streamlined multi-core performance for virtualization, media transcoding, and parallel workloads. The AM4 socket provides a broad ecosystem of processors, coolers, and memory configurations, allowing you to tune performance and efficiency for your specific server role. Whether you’re building a lean home lab, a small office server, or a compact edge node, this motherboard is designed to deliver consistent, scalable performance in a compact package.

The motherboard’s memory architecture is optimized for server workloads, offering four DDR4 DIMM slots that support a total of up to 32 GB of RAM. While compact, the X570D4U does not skimp on memory capacity, making it suitable for software-defined storage, virtualization staging, and database cache scenarios where memory headroom translates to snappier performance and smoother operation under load. The 32 GB maximum RAM constraint is paired with a robust power delivery design and thermal management approach that helps maintain stability during sustained workloads common to NAS and virtualization tasks.

Storage flexibility is another standout feature. The ASRock Rack X570D4U provides eight SATA interfaces for direct storage expansion, enabling you to attach multiple HDDs or SSDs for generous raw capacity and diverse RAID configurations. In addition to storage, the board includes HDMI output for direct video display in scenarios where onboard graphics are utilized or for quick troubleshooting and BIOS access without a dedicated graphics card. Integrated Gigabit Ethernet ensures reliable network connectivity for management, data transfer, and remote administration right out of the box. This combination of storage, networking, and display options makes the X570D4U a well-rounded choice for compact server deployments.

The Micro ATX form factor (9.6" x 9.6") provides a compelling balance of expansion and space efficiency. This has clear advantages in small rack enclosures, micro servers, and compact workstations where every inch of space matters. The board keeps essential server features accessible while enabling flexible chassis selection and straightforward cabling. The combination of AMD X570 chipset, PCIe 4.0-capable connections, and a compact footprint positions the X570D4U as a flexible platform for a range of SMB, lab, and edge workloads that require reliable performance in a smaller footprint.

• Powerful platform with AMD X570 chipset and PCIe 4.0 readiness: The X570 chipset delivers high-speed PCIe connections for NVMe storage devices, graphics, and expansion cards, enabling fast data transfers and responsive system performance under load.
• Ryzen 5000 Series Desktop Processor support with AM4 socket: Access modern multi-core performance and efficient operation for virtualization, media processing, and software development workloads.
• Memory capacity and flexibility: Four DDR4 DIMM slots support up to 32 GB of RAM total, balancing memory footprint with performance for NAS tasks, caching, and light virtualization.
• Robust storage and I/O options: Eight SATA interfaces for flexible storage expansion, plus HDMI output and Gigabit Ethernet for management, display, and network connectivity.
• Compact Micro ATX form factor with rack-friendly design: 9.6" x 9.6" footprint fits in compact chassis and dense rack configurations, delivering server-grade capability without sacrificing space.

Technical Details of ASRock Rack X570D4U Server Motherboard

• Chipset: AMD X570
• CPU Socket: AM4
• Form Factor: Micro ATX (9.6" x 9.6")
• Memory: 32 GB DDR4 SDRAM maximum; 4 x DIMM slots
• Memory Type: DDR4
• Storage: 8 x SATA Interfaces
• Video Output: HDMI
• Networking: Gigabit Ethernet
• CPU Support: Supports AMD Ryzen 5000 Series Desktop Processors

How to install ASRock Rack X570D4U

Before you begin, ensure you’re working in a static-free environment and have a suitable Micro ATX or rack-friendly chassis, an appropriate AMD-compatible CPU cooler, memory modules, and a compatible power supply. Verify BIOS availability and any firmware updates from ASRock Rack to ensure the best stability for server workloads.

Step 1: Install the CPU into the AM4 socket. Align the CPU with the socket’s orientation marker and lower it gently to seat it. Secure the socket latch to hold the processor in place. If your cooler requires thermal paste, apply a thin, even layer on the CPU heat spreader before mounting the cooler.

Step 2: Install RAM into the four DDR4 DIMM slots. Refer to the motherboard’s labeling to populate in the correct order for dual-channel operation. Press each module firmly until the latches snap into place and the memory is seated securely.

Step 3: Mount the motherboard in the chassis. Use the provided standoffs to align the board with the chassis holes and secure it with screws. Connect the 24-pin ATX power connector and the CPU power connector from your power supply. Attach any case fans or liquid cooling components as required, ensuring airflow over the VRMs and chipset for stable operation under load.

Step 4: Attach storage and peripheral connections. Connect SATA drives to the eight SATA ports as needed for your storage configuration. If you plan to use onboard HDMI, connect the display cable for initial BIOS setup or troubleshooting. Connect the Gigabit Ethernet cable for network configuration and remote management during the setup process.

Step 5: Power on and configure in BIOS. Enter the BIOS/UEFI during POST to set boot order, enable virtualization features (as required for your environment), and adjust memory timings if you’re optimizing for a specific workload. Save the settings and exit, then proceed to install your preferred operating system and drivers.

Step 6: Install the operating system and management utilities. After OS installation, install the chipset drivers and ASRock Rack management utilities or server-grade software provided by ASRock to monitor system health, temperature, fan profiles, and drive status. Validate that all drives, network interfaces, and any add-in cards are recognized and functioning as expected. Perform a final reboot to confirm system stability under load and verify network connectivity.

Frequently asked questions

Q: What processors does the ASRock Rack X570D4U support?

A: It supports AMD Ryzen 5000 Series Desktop Processors with the AM4 socket.

Q: How much RAM can I install?

A: The board supports up to 32 GB of DDR4 SDRAM across 4 DIMM slots (maximum total RAM).

Q: How many SATA ports does it have?

A: The motherboard features 8 SATA interfaces for storage expansion and configuration.

Q: Does it include HDMI output?

A: Yes. The onboard HDMI provides video output when using compatible integrated graphics or Ryzen APUs that support display output.

Q: What is the form factor?

A: The ASRock Rack X570D4U uses a Micro ATX form factor, measuring 9.6" x 9.6", suitable for compact server builds and space-constrained enclosures.

Note: This description reflects the features provided in the product specifications and ASRock Rack’s commonly advertised capabilities for the X570D4U motherboard. For the most current compatibility and supported configurations, consult the official ASRock Rack documentation and your chassis hardware guidelines.
