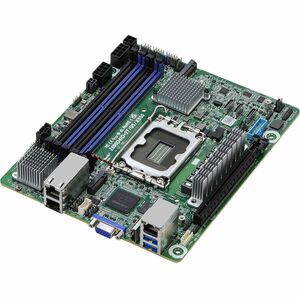

ASRock Rack Z690D4ID-2T/G5/X550 Server Motherboard — Deep Mini ITX Intel Z690 Power for Small Form Factor Servers

Designed for compact, performance-driven server and storage solutions, the ASRock Rack Z690D4ID-2T/G5/X550 blends enterprise-grade connectivity with a space-saving Deep Mini ITX footprint. Built around the Intel Z690 chipset and LGA-1700 socket, this motherboard is purpose-built for small-form-factor deployments such as home labs, edge servers, NAS appliances, and light virtualization workloads. It delivers robust RAM capacity, multiple storage options, and essential I/O to support efficient data processing, reliable management, and scalable expansion in a tight chassis.

• Processor and chipset compatibility: The board leverages the Intel Z690 chipset and an LGA-1700 socket to support Intel Core, Pentium, and Celeron processors, including 12th and 13th generation CPUs. This gives you a flexible upgrade path and improved efficiency for demanding workloads, all within a compact server platform.
• Memory capacity and speed: With 4 DIMM slots for DDR5 SDRAM and a maximum of 48 GB, you gain higher bandwidth and better power efficiency compared with older generations. This memory configuration is well-suited for virtualization hosts, lightweight databases, and multitasking environments in a dense micro server setup.
• Storage and expansion: Eight SATA interfaces provide abundant storage options for OS drives, data drives, backups, and registry or scratch volumes. The generous SATA count helps you deploy RAID configurations, large data pools, and scalable storage without adding extra expansion cards.
• Video and networking: An HDMI output enables local management display when needed, while onboard Gigabit Ethernet supports reliable network connectivity for administration, data transfer, and standard IT workflows in a compact rack or chassis.
• Form factor and reliability: The Deep Mini ITX form factor (6.7" x 8.2") is engineered for compact server deployments, micro-towers, and small racks. Built with ASRock Rack’s focus on reliability and long-term support, it provides a stable foundation for 24/7 operation in demanding environments.

Technical Details of ASRock Rack Z690D4ID-2T/G5/X550 Server Motherboard

• Form factor: Deep Mini ITX (6.7" x 8.2")
• Chipset: Intel Z690
• Socket: LGA-1700
• Memory: 4 x DIMM slots; supports DDR5 SDRAM; maximum 48 GB
• Storage: 8 x SATA interfaces
• Graphics/Video: HDMI output
• Networking: Gigabit Ethernet
• Supported processors: Intel Core, Pentium, and Celeron series via LGA-1700

How to install ASRock Rack Z690D4ID-2T/G5/X550 Server Motherboard

Preparing for installation begins with selecting a compatible chassis that accommodates a Deep Mini ITX board and provides adequate cooling for server workloads. Before handling components, power down all equipment, unplug cables, and discharge static electricity. Gather a compatible LGA-1700 CPU, DDR5 memory modules, and storage drives that fit your deployment plan.

Step 1: Install the CPU into the LGA-1700 socket. Align the processor with the socket’s key, gently place it, and lock the retaining lever. If your cooler requires thermal paste, apply a thin, even layer before attaching the cooler. Secure the cooler firmly to ensure reliable heat dissipation during continuous operation.

Step 2: Install DDR5 memory modules in the four DIMM slots. Follow the motherboard manual’s recommended population pattern to maximize memory bandwidth and stability. DDR5 modules bring higher speeds and improved efficiency, which can translate into smoother virtualization and data processing in a compact server environment.

Step 3: Attach storage drives to the eight SATA ports. Organize cabling to facilitate airflow and serviceability within a cramped chassis. If you plan to implement RAID, configure the storage arrays via the BIOS/UEFI during initial setup or after OS installation to meet your redundancy and performance goals.

Step 4: Mount the motherboard in your chassis using the supplied standoffs. Connect the 24-pin ATX power connector, the CPU power connector, and any additional power leads specified by your chassis. Attach the HDMI display and connect USB and network cables as needed for on-site management or initial configuration.

Step 5: Power on and enter the BIOS/UEFI. Update firmware if available, set memory timings and boot order, and enable any server-oriented features your workload requires. From here, install your preferred operating system or hypervisor, configure storage pools, and begin provisioning virtual machines, containers, or storage services. Regular firmware updates and security patches help maintain stability and security for continuous operation.

Practical tips for deployment include planning cable management to preserve airflow, labeling drives for easy maintenance, and documenting BIOS settings for rapid recovery if a component needs replacement. In dense rack environments, consider redundancy for power, cooling, and storage to ensure uptime and straightforward maintenance. The Deep Mini ITX form factor makes this board ideal for compact 1U or 2U enclosures, micro data centers, or compact NAS appliances where space is at a premium but the need for reliable connectivity remains high.

Frequently asked questions

• What processors are compatible with this motherboard? It supports Intel Core, Pentium, and Celeron processors using the LGA-1700 socket on an Intel Z690 platform, including 12th and 13th generation CPUs. This enables a broad range of performance profiles from energy-efficient office tasks to demanding compute workloads.
• How much memory can I install? The board provides four DIMM slots for DDR5 SDRAM with a maximum capacity of 48 GB. This configuration balances speed, capacity, and power efficiency for compact server roles.
• How many SATA drives does it support? Eight SATA interfaces are available, offering flexible options for OS disks, data volumes, backups, and storage pools in a single compact board.
• Does it include video output? Yes, there is an HDMI output for local management displays or troubleshooting, which complements remote management capabilities over the network.
• What is the form factor, and where is this board best used? The motherboard follows a Deep Mini ITX form factor (6.7" x 8.2"), making it well suited for compact servers, edge deployments, small racks, NAS devices, and lab environments where space efficiency is critical.
