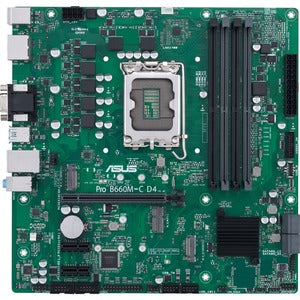

Asus B660M-C D4-CSM Desktop Motherboard

The Asus B660M-C D4-CSM Desktop Motherboard is a compact, feature-rich solution built around the Intel B660 chipset and the LGA-1700 socket. Engineered for versatile micro ATX systems, this board delivers a balanced mix of performance, expandability, and reliability for mainstream builds, gaming rig upgrades, and workstation desktops. It supports a wide range of processors—from Pentium Gold and Celeron to Core i3, i5, i7, and i9—making it suitable for budget-friendly home PCs and productivity machines alike. With DDR4 memory up to 128 GB across four DIMM slots, Optane memory readiness, and essential connectivity options, the B660M-C D4-CSM is designed to maximize efficiency while keeping your chassis compact and budget-conscious. Whether you’re assembling a compact gaming PC, a quiet home workstation, or a reliable daily driver, this motherboard is built to handle modern workloads with ease.

• CPU compatibility and chipset: Optimized for Intel LGA-1700 processors with the B660 chipset, the Asus B660M-C D4-CSM provides a solid foundation for mainstream gaming, streaming, and productivity. The board’s design embraces a broad processor range including Pentium Gold, Celeron, Core i3, i5, i7, and i9, ensuring users can upgrade within a single platform as needs evolve—without changing the motherboard. This broad compatibility makes it an excellent choice for users who want robust performance without stepping up to premium platforms.
• Memory capacity and speed: With support for up to 128 GB of DDR4 SDRAM across 4 DIMMs, this motherboard is ready for memory-intensive workloads, multitasking, and modern applications. The four DIMM slots enable flexible memory configurations and future upgrades, so you can start with a practical amount of RAM and scale up as your tasks demand more memory bandwidth. DDR4 compatibility also helps you choose from a wide range of affordable, high-performance memory kits to suit your build and budget.
• Integrated graphics connectivity: For systems that rely on integrated graphics, the Asus B660M-C D4-CSM provides essential display outputs including HDMI and DisplayPort. This combination ensures compatibility with most modern displays and offers flexible multi-monitor setups for work, entertainment, or gaming. The DisplayPort option, paired with HDMI, allows you to route video and audio through a single cable and configure diverse monitor configurations with ease.
• Storage readiness and Optane compatibility: Intel Optane Memory Ready means the motherboard is prepared to leverage Optane acceleration for faster responsiveness and snappier boot times when paired with compatible optane memory modules. Coupled with the motherboard’s storage controller capabilities, users can create a balanced storage strategy that prioritizes both capacity and speed for everyday tasks, media editing, and data-rich workloads.
• Form factor and build practicality: The Micro ATX form factor strikes a practical balance between compact chassis compatibility and expandability. This size enables easy builds in small to mid-sized cases while still delivering essential PCIe expansion and connectivity. The B660M-C D4-CSM is designed for straightforward assembly, simple BIOS navigation, and dependable operation, making it a fitting choice for first-time builders and experienced technicians alike who want a sturdy, upgrade-friendly motherboard without unnecessary bulk.

Technical Details of Asus B660M-C D4-CSM Desktop Motherboard

• Chipset: Intel B660
• CPU Socket: LGA-1700
• Memory: DDR4 SDRAM, 128 GB maximum, 4 x DIMMs
• Form Factor: Micro ATX
• Graphics Outputs: HDMI, DisplayPort
• Networking: Gigabit Ethernet
• Expansion: PCIe slots (typical for micro ATX boards), PCIe-based storage support (NVMe/M.2 where available)
• Optane Ready: Intel Optane Memory Ready

how to install Asus B660M-C D4-CSM Desktop Motherboard

• Prepare your workspace with a clean, static-free surface. Gather your CPU, cooler, memory, power supply, and case hardware.
• Install the CPU into the LGA-1700 socket on the motherboard, aligning the notches properly and securing the lever. Apply a small amount of thermal paste if your cooler requires it, then mount the CPU cooler according to its instructions for proper contact and cooling.
• Open the RAM slots and align the DDR4 modules with the notches. Press firmly until the modules click into place and are fully seated in all four banks. Ensure the memory is installed in the correct slots for your desired dual-channel or quad-channel configuration as specified by the motherboard manual.
• Place the motherboard into the case, align with the standoffs, and secure using screws. Connect the 24-pin ATX power connector and the 8-pin (or 4+4) CPU power connector from your power supply. Connect case fans and any optional cooling devices.
• Attach storage drives (SSD/HDD) using the appropriate SATA or M.2 slots as available, then connect data cables and power. Connect the front-panel USB, audio, and power/reset buttons to their corresponding headers on the motherboard. Boot into the BIOS to verify hardware detections, set boot order, and configure memory XMP profiles if desired. Save changes and exit to start your operating system installation.

Frequently asked questions

• What CPU socket does the Asus B660M-C D4-CSM use? It uses the Intel LGA-1700 socket designed for 12th and newer generation Intel processors. It is a versatile platform that supports a range of CPUs including Pentium Gold, Celeron, Core i3/i5/i7/i9 on the B660 chipset.
• How much memory can I install? The motherboard supports up to 128 GB of DDR4 RAM across 4 DIMM slots, allowing you to configure memory for 2x8 GB, 2x16 GB, or higher-capacity kits depending on your needs and motherboard specifications.
• Does this board support Intel Optane memory? Yes, the Asus B660M-C D4-CSM is Intel Optane Memory Ready, enabling faster system responsiveness when paired with Optane memory modules and compatible storage configurations.
• What display outputs are available? The board provides HDMI and DisplayPort outputs for integrated graphics, enabling multi-monitor setups and flexible display connections without requiring a discrete GPU for basic tasks and IGP-focused use cases.
• Is this motherboard suitable for compact builds? Yes. The Micro ATX form factor offers a compact footprint while maintaining essential expansion and connectivity, making it a solid choice for small-to-mid-sized PC cases, home offices, and budget gaming rigs.
