Asus M.2 to PCI Express Adapter

AsusSKU: 6324345

Price:
Sale price$97.04

Description

Asus M.2 to PCI Express Adapter

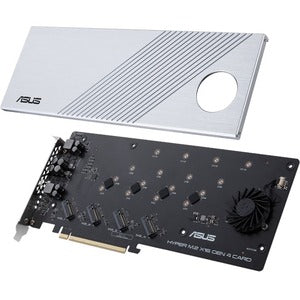

Unlock extreme NVMe performance with the ASUS Hyper M.2 x16 Gen 4 Card, a dedicated PCIe expansion solution built for creators, enthusiasts, and power users who demand maximum drive density and blistering speeds. This ASUS M.2 to PCI Express Adapter transforms a single PCIe slot into a compact four-slot NVMe RAID powerhouse, letting you scale storage for 4K video editing, large-scale 3D rendering, database workloads, or fast scratch disks. Engineered for both AMD and Intel platforms, it combines a robust power design, efficient cooling, and broad NVMe compatibility to deliver reliable, sustained performance under demanding workloads.

  • Four NVMe M.2 slots for massive storage expansion: The card supports four NVMe M.2 drives in common lengths (2242/2260/2280/22110), enabling high-density RAID configurations. This makes it ideal for creative workflows that require large, fast scratch disks or for data-intensive workloads that benefit from parallel throughput across multiple drives.
  • Broad compatibility across AMD and Intel platforms: Designed to work with AMD TRX40 and X570 motherboards using PCIe 4.0 NVMe RAID, as well as Intel platform RAID-on-CPU configurations, the adapter provides flexible installation options across different system builds and generations.
  • High theoretical bandwidth up to 256 Gbps: With four NVMe lanes feeding the drives, the card enables substantial sustained throughput for sequential reads and writes. While actual performance depends on drive choice and system configuration, this design is optimized for demanding workloads that benefit from parallel NVMe access.
  • Two-phase power design delivering up to 14W: The dedicated two-phase power solution ensures stable, ample power to all four drives, promoting consistent performance during long, heavy workloads and helping to prevent throttling during peak activity.
  • Efficient cooling with a large heatsink: A substantial heatsink is engineered to dissipate heat efficiently, maintaining drive performance and longevity even when four NVMe drives operate simultaneously at high speeds. Thermal management helps sustain peak performance and reliability over extended use.

Technical Details of Asus M.2 to PCI Express Adapter

  • Drive support: Four NVMe M.2 slots (2242/2260/2280/22110) for flexible capacity and compatibility with a wide range of NVMe drives.
  • Interface: PCIe 4.0/3.0 compatibility, enabling use with both PCIe 4.0-enabled and PCIe 3.0 systems depending on motherboard capabilities.
  • RAID and performance: Supports NVMe RAID on AMD TRX40/X570 platforms and RAID-on-CPU configurations on Intel-based systems, delivering accelerated multi-drive throughput where supported.
  • Power delivery: Two-phase power design providing up to 14W of output to support multiple NVMe drives under load.
  • Thermal management: Large heatsink designed to keep drives cool for sustained performance and reliable operation in demanding workloads.
  • Form factor: PCIe add-in card designed for desktop workstations and enthusiast builds needing high-density NVMe expansion.
  • Drive compatibility: Supports the latest NVMe drives, enabling modern endurance and speed improvements across diverse use cases.

how to install Asus M.2 to PCI Express Adapter

To install this adapter and start maximizing NVMe storage performance, follow these steps carefully. Ensure you have a compatible motherboard with an available PCIe x16 or supported slot and adequate clearance for the card and its heatsink. Prepare your NVMe drives and a backup plan for data safety before configuring a RAID array.

  • Power down your computer completely and unplug from the power source to prevent electrical damage during installation.
  • Open your system case and locate an appropriate PCIe slot that can accommodate the ASUS Hyper M.2 x16 card. Ensure there is enough clearance around the heatsink to prevent contact with other components.
  • Insert the ASUS adapter into the PCIe slot, pressing gently until it seats securely. Use any mounting screws or brackets provided by your case to stabilize the card if required.
  • Install up to four NVMe M.2 drives into the card’s slots. Verify drive lengths (2242/2260/2280/22110) and ensure each drive is properly seated with the connectors securely engaged.
  • Connect any required power connectors if your specific motherboard or card design requires additional power delivery. Some configurations rely on the motherboard’s PCIe slot for power, while others may need supplemental power.
  • Close the case, reconnect power, and boot into your system BIOS/UEFI. Configure the NVMe RAID setup as needed (RAID levels, boot priority, and cache settings) according to your performance and redundancy requirements.
  • Boot into your operating system and initialize the drives if necessary. Install any required motherboard or chipset drivers to ensure full PCIe/NVMe functionality and optimal performance.

Frequently asked questions

Q: How many NVMe drives can I install with this adapter?

A: The ASUS Hyper M.2 x16 Gen 4 Card supports four NVMe M.2 drives (sizes 2242/2260/2280/22110), allowing you to build a high-capacity, high-throughput NVMe RAID configuration.

Q: Is this expansion card compatible with PCIe 4.0 and PCIe 3.0 motherboards?

A: Yes. It supports PCIe 4.0 and 3.0, making it suitable for AMD TRX40/X570 platforms with PCIe 4.0 NVMe RAID and Intel platforms with RAID-on-CPU functionality. Your actual performance will depend on your motherboard's PCIe revision and the NVMe drives used.

Q: What kind of power deliverable does the card require?

A: The card features a two-phase power design capable of up to 14W output to reliably drive multiple NVMe drives under heavy workloads without throttling.

Q: What cooling solution does the card provide?

A: It includes a large heatsink designed to dissipate heat effectively, helping to maintain drive performance during sustained, parallel NVMe operations.

Q: Can I use this card for non-RAID NVMe setups?

A: Yes. You can configure the drives in non-RAID modes if your workflow requires independent NVMe volumes, though RAID configurations are common to maximize throughput and convenience for large, concurrent workloads.
