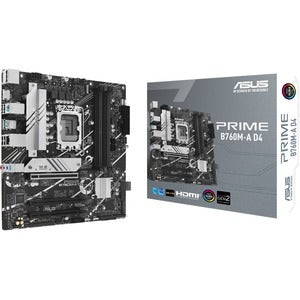

Asus Prime B760M-A D4 Desktop Motherboard – Intel B760 Chipset, LGA 1700, Micro ATX

Designed to unleash the power of 13th Gen Intel Core processors, the Asus Prime B760M-A D4 blends a robust power delivery system, advanced cooling, and intuitive tuning in a compact Micro ATX form factor. This motherboard delivers dependable performance for gaming, content creation, and everyday computing, while offering flexible memory, storage, and expansion options to grow with your needs. Built to satisfy DIY builders and enthusiasts, Prime B760M-A D4 combines reliability, efficiency, and a clean aesthetic that fits neatly into compact builds and mid-tower cases alike.

• Powerful, efficient performance: A robust VRM design with multiple heatsinks and smart cooling controls helps maintain stability when pushing 13th Gen Intel Core processors, gaming, streaming, and multitasking workloads.
• DDR4 memory flexibility: Four DIMM slots support DDR4 memory with high-speed up to 5333 MHz (OC) for fast multitasking, rapid load times, and smooth gameplay, while maintaining solid compatibility across a wide memory range.
• Storage and speed: Dual M.2 NVMe slots combined with four SATA 6Gb/s ports provide fast OS and application loads, ample data storage, and flexible configurations for boot drives, scratch disks, and mass storage.
• Connectivity and expansion: One PCIe 4.0 x16 slot for modern GPUs, additional PCIe slots for expanders, plus a comprehensive USB footprint for fast peripherals and external storage, all accessible from a well-organized rear I/O.
• User-friendly design and aesthetics: The ASUS Prime line emphasizes reliable BIOS with EZ mode and tuning options, plus Aura Sync RGB compatibility to personalize your build’s lighting without compromising stability or airflow.

Technical Details of Asus Prime B760M-A D4

• CPU compatibility: Supports 13th and 12th Gen Intel Core processors with the LGA 1700 socket.
• Chipset: Intel B760
• Form factor: Micro ATX motherboard (9.6 x 9.6 inches)
• Memory: 4 x DDR4 DIMM slots, total system memory up to 128GB; DDR4 memory speeds up to high frequencies (OC) supported for faster data transfer and responsiveness
• Memory technology: DDR4
• Storage: 2 x M.2 NVMe slots (PCIe 4.0/3.0) for fast boot drives and high-performance applications; 4 x SATA 6Gb/s ports for additional storage
• Expansion slots: PCIe 4.0/3.0 configuration on primary PCIe x16 and supplementary PCIe slots for expansion cards
• Networking: Built-in Gigabit Ethernet LAN for reliable wired connectivity
• Audio: High-quality onboard audio for immersive sound with multi-channel support
• USB ports: Comprehensive USB I/O including USB 3.x front and rear ports for fast peripheral and storage connections
• RGB and software: Aura Sync-compatible lighting for synchronized RGB effects; ASUS software utilities for tuning, cooling profiles, and system optimization
• BIOS and firmware: UEFI BIOS with EZ Mode and AI-driven tuning features to simplify overclocking, fan curves, and system monitoring
• Other features: Durable build quality, reinforced PCIe slots where applicable, and fan/header support for reliable cooling across a compact chassis

How to Install Asus Prime B760M-A D4

Follow these steps to assemble a stable, high-performance system with the Asus Prime B760M-A D4:

• Step 1: Prepare your workspace and components. Ensure you have a compatible power supply, the 24-pin ATX and 8-pin CPU power connectors, a compatible CPU, and DDR4 memory ready for installation.
• Step 2: Install the CPU into the LGA 1700 socket. Open the socket lever, align the notch on the processor with the corresponding markings on the motherboard, seat the CPU firmly, and re-secure the lever.
• Step 3: Install memory modules. Open the DDR4 DIMM slots, orient the sticks correctly, and firmly press until the latches click into place. Use the board’s recommended slots if you plan to run in dual-channel mode for optimal performance.
• Step 4: Mount the motherboard in your case. Use the included standoffs to align with the chassis, then secure the motherboard with screws. Route and connect chassis power, CPU power, front panel connectors, USB headers, and audio cables as indicated in the motherboard manual.
• Step 5: Install storage devices. Insert NVMe SSDs into the M.2 slots and secure with screws; connect SATA drives to the SATA ports as needed. Attach cooling solutions to M.2 drives if your board requires it.
• Step 6: Install expansion cards and connect peripherals. Install a discrete GPU into the PCIe x16 slot, secure with screws, and connect PCIe power if required. Attach any additional PCIe cards in the remaining slots and connect USB peripherals, network cables, and audio devices.
• Step 7: Configure BIOS and software. Power on the system and enter the BIOS/UEFI to set boot order, enable XMP/DOCP profiles for memory, and configure fan curves for optimal cooling. Save settings and reboot to install your operating system and drivers.

Frequently asked questions

• Is the Asus Prime B760M-A D4 compatible with 13th Gen Intel Core processors?
  Yes. The motherboard is designed around the LGA 1700 socket and Intel B760 chipset to support 13th Gen Intel Core processors, providing a platform optimized for performance and reliability.
• Does it support DDR4 memory?
  Yes. This model uses DDR4 memory, offering flexible compatibility with a wide range of DDR4 kits and speeds while maintaining a compact Micro ATX footprint.
• How many M.2 slots and SATA ports are available?
  The board includes two M.2 NVMe slots for high-speed storage and four SATA 6Gb/s ports for additional drives and data storage options.
• What form factor is this motherboard?
  The Asus Prime B760M-A D4 is a Micro ATX motherboard, designed to fit in smaller cases without sacrificing essential connectivity and expansion.
• Are there any special BIOS features or tuning options?
  Yes. The motherboard features a user-friendly UEFI BIOS with EZ Mode and tuning options, including AI-based performance tuning and cooling profiles to help optimize your system for stability and performance.
