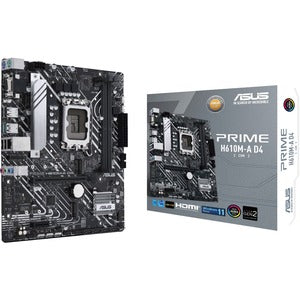

Asus Prime H610M-A D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX

AsusSKU: 7236057

Price:
Sale price$135.45

Description

Asus Prime H610M-A D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX

Designed to empower compact, modern desktops, the Asus Prime H610M-A D4-CSM motherboard blends dependable performance with flexible connectivity. Built on the Intel H610 chipset and LGA 1700 socket, this micro ATX board supports 12th Gen Intel processors, DDR4 memory, and a rich set of features that cater to everyday computing, entry-level gaming, and small form factor builds. With dual M.2 storage, robust cooling, comprehensive I/O, and Aura Sync lighting, it’s a versatile platform for creators, professionals, and home entertainment setups seeking a reliable, all-around motherboard without compromising space or style. Whether you’re assembling a compact workstation, a media center PC, or a budget gaming rig, the Prime H610M-A D4-CSM delivers stability, efficiency, and room to grow.

  • Efficient cooling and stability: The motherboard features a comprehensive VRM heatsink and well‑designed power delivery architecture to maintain steady performance during demanding tasks. This cooling-focused design helps extend component life, reduces thermal throttling, and keeps your system quiet and reliable during prolonged workloads, casual gaming sessions, or multitasking across several applications.
  • DDR4 memory with PCIe 4.0 readiness: Enjoy fast, power-efficient DDR4 memory with dual-channel support and PCIe 4.0 readiness for compatible NVMe SSDs and graphics cards. This combination delivers snappy system responsiveness, quicker boot times, and smooth multitasking when running modern software, games, and media editing tools on a budget-friendly platform.
  • Dual M.2 slots and versatile storage options: Two M.2 slots offer high-speed NVMe storage for your OS and programs, while SATA 6 Gbps ports provide additional room for mass storage and media libraries. The flexible layout makes it easy to assemble a fast boot drive and large data drives without sacrificing PCIe lanes or clearance for other components.
  • Rich I/O and display connectivity: Onboard DisplayPort and HDMI outputs enable direct video output from compatible integrated graphics, with an additional D-Sub (VGA) option for legacy displays. USB 3.2 Gen 2 ports ensure fast peripheral connections, delivering vibrant transfer speeds for external drives, peripherals, and modern devices.
  • Aura Sync lighting and ARGB headers: Addressable Gen 2 headers alongside Aura Sync compatibility let you synchronize lighting across a compatible ecosystem of Asus components and peripherals, enabling personalized aesthetics for your build whether you’re streaming, gaming, or working late at night.

Technical Details of Asus Prime H610M-A D4-CSM Desktop Motherboard

  • Chipset: Intel H610 — optimized for value-focused performance with robust I/O and modern connectivity.
  • Socket: LGA 1700 — ready for 12th Gen Intel processors and future compatibility within the LGA1700 family.
  • Form Factor: Micro ATX — compact footprint ideal for small form factor cases and versatile desk setups without sacrificing expansion options.
  • Memory: DDR4 support with dual-channel architecture — enables efficient memory bandwidth for everyday tasks, multimedia workloads, and light gaming when paired with capable RAM kits.
  • Memory Slots: 2 x DIMM slots — provides flexible memory configurations, allowing upgrades as your needs evolve while preserving PCIe and storage lanes for other devices.
  • Expansion and PCIe: PCIe 4.0 readiness — supports modern GPUs and NVMe adapters with enhanced throughput for faster data transfers and improved responsiveness in demanding applications.
  • Storage Options: Dual M.2 slots and SATA 6 Gbps support — fast NVMe drives for boot and applications, plus additional SATA storage to house media libraries and backups.
  • Graphics and Display: DisplayPort and HDMI outputs on-board; D-Sub (VGA) for legacy displays — flexible video options when using integrated graphics or compatible discrete graphics configurations.
  • Networking: Intel 1 Gb Ethernet — reliable wired networking for consistent online gaming, streaming, and file transfers.
  • USB Connectivity: USB 3.2 Gen 2 ports — high-speed USB connectivity for fast external storage, peripherals, and USB-C devices where applicable.
  • RGB and Lighting: Addressable Gen 2 headers and Aura Sync support — easy, synchronized lighting control for a cohesive, customizable look across compatible components.
  • Cooling and Durability: Comprehensive VRM heatsink and solid build quality — designed to endure steady workloads while maintaining performance and longevity.
  • BIOS and Compatibility: BIOS designed to support 12th GenIntel processors with proper updates — ensuring compatibility and stability for current and future software environments.

How to install Asus Prime H610M-A D4-CSM motherboard

  • Prepare your workspace and components: connect a grounded anti-static strap and lay out the motherboard, CPU, memory, GPU (if applicable), storage drives, and case connectors in an organized area.
  • Install the CPU into the LGA 1700 socket: lift the retention arm, align the notches on the processor with the socket, seat it firmly, and close the socket latch. Apply thermal paste as required and attach the CPU cooler according to the cooler’s mounting hardware.
  • Install memory modules: insert the DDR4 RAM into the correct DIMM slots, ensuring full engagement with the locking latches. Use the motherboard manual to verify the preferred slots for your memory configuration.
  • Mount the motherboard in the case: align the rear I/O ports and screw holes with the case standoffs, then secure the board with the appropriate screws. Ensure there is clearance for the CPU cooler and power connectors.
  • Connect power: attach the 24-pin ATX power connector and the 8-pin (or 4+4) CPU power connector to the motherboard. Route power cables neatly to minimize airflow obstruction.
  • Install storage and expansion options: insert NVMe SSDs into the M.2 slots and tighten the standoff screws. Attach any SATA drives using SATA cables and connect power from the power supply.
  • Connect front panel and peripheral headers: attach the power switch, reset switch, power LED, HDD LED, USB headers, and any front-panel audio cables to the appropriate motherboard pins. Reference the manual for exact pin layouts.
  • Install a graphics card (if using discrete GPU): insert the GPU into the primary PCIe x16 slot, secure with screws, and connect any required auxiliary power cables from the PSU.
  • BIOS setup and updates: power on the system, enter the BIOS/UEFI to configure boot order, memory profiles (XMP/DOCP), and priority for NVMe drives if applicable. Update the BIOS to the latest version if recommended by Asus for optimal 12th Gen CPU compatibility.
  • First boot and OS installation: save BIOS settings, boot from your installation media, and install your operating system and drivers. After OS installation, install chipset drivers, utilities, and any required motherboard software from Asus to ensure full functionality.

Frequently asked questions

  • Q: Does the Asus Prime H610M-A D4-CSM support 12th Gen Intel processors? A: Yes. It uses the LGA 1700 socket and Intel H610 chipset, designed to work with 12th Gen Intel CPUs, with BIOS support for compatibility and stability.
  • Q: What type of memory does it use? A: It supports DDR4 memory in a dual-channel configuration, delivering reliable performance for everyday tasks, productivity, and entry-level gaming when paired with suitable RAM.
  • Q: How many M.2 slots does it have? A: It features two M.2 slots for high-speed NVMe storage, enabling fast boot drives and accelerators for applications and data.
  • Q: What display outputs are available? A: The motherboard provides DisplayPort and HDMI outputs for modern integrated graphics, plus a D-Sub (VGA) option for legacy displays, offering flexible display setups.
  • Q: Is Aura Sync lighting supported? A: Yes. The board includes Addressable Gen 2 headers and Aura Sync compatibility to synchronize lighting with other Asus components and compatible peripherals, allowing cohesive customization for your build.
