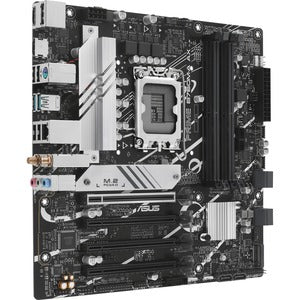

Asus Prime PRIME B760M-A AX Desktop Motherboard - Intel B760 Chipset | LGA1700 Socket | Micro ATX

Experience a balanced blend of performance, efficiency, and intelligent tuning with the Asus Prime PRIME B760M-A AX. Engineered to unleash the full potential of 13th Gen Intel Core processors, this Micro ATX motherboard combines a robust power design, comprehensive cooling, and thoughtful features that appeal to both first‑time builders and seasoned PC enthusiasts. Its compact footprint makes it a perfect fit for compact towers and small form factor cases, while intelligently placed headers and optimized traces ensure reliable connectivity and expansion. For creators, gamers, and productivity users who demand stability, energy efficiency, and future‑proofing, PRIME B760M‑A AX delivers a premium foundation with ASUS engineering that emphasizes longevity and smooth, hassle‑free performance.

• Optimized for 13th Gen Intel Core – Built around the Intel B760 chipset with an advanced digital power design, PRIME B760M‑A AX provides stable, clean power to the processor, enabling dependable performance under load for gaming, content creation, and multitasking.
• Intelligent cooling and tuning – A thoughtfully engineered cooling solution keeps VRMs and critical components within safe temperatures, while ASUS tuning features such as AI Overclocking and comprehensive fan controls help maintain quiet operation and performance consistency even during long sessions.
• Integrated connectivity with Wi‑Fi and Ethernet – The board comes with built‑in wireless connectivity for fast, flexible networking and a reliable wired option via 2.5 Gb Ethernet, ensuring smooth online gaming, streaming, and data transfers without bottlenecks.
• Storage and expansion built for speed – Dual M.2 slots with heat spreaders speed up NVMe drives, while PCIe slots and ample SATA ports offer flexible expandability for GPUs, high‑capacity storage, and accelerators as your needs grow.
• User‑friendly design and long‑lasting quality – Durable BIOS access, Easy Debug support, USB BIOS FlashBack, and a clean, well‑organized layout help you assemble, troubleshoot, and upgrade with confidence while maintaining a clean cable management profile.

Technical Details of Asus Prime PRIME B760M-A AX

• Model: Asus Prime PRIME B760M-A AX
• Form Factor: Micro ATX
• Socket: LGA 1700
• Chipset: Intel B760
• Memory: DDR5 memory support, dual‑channel configuration
• Expansion Slots: PCIe 4.0 x16 slot for discrete GPUs, PCIe 4.0/3.0 x1 and additional lanes for expansion cards
• Storage: 2 x M.2 slots with heatsinks, several SATA 6Gb/s ports
• Networking: Built‑in Wi‑Fi 6E (Intel/ASUS module) and 2.5 Gb Ethernet for fast, flexible networking
• USB Connectivity: USB 3.x front/back headers with Type‑A and Type‑C options for fast data transfer
• Audio: High‑quality onboard audio with a modern high‑definition codec for clear, immersive sound
• BIOS/UEFI: User‑friendly firmware with AI features, robust fan profiles, and easy BIOS updates

How to install Asus Prime PRIME B760M-A AX

• Prepare your workspace with an anti‑static mat or a grounded wrist strap to avoid damaging sensitive components.
• Install the CPU into the LGA 1700 socket, aligning the notches correctly and securing the socket lever. Apply a small amount of thermal paste if your cooler requires it, or follow the cooler’s mounting instructions for pre‑applied paste.
• Install memory modules in the correct DIMM slots as indicated by the motherboard manual. Secure the modules with the side clips until they click into place, ensuring proper seating for reliable operation.
• Place the motherboard into your case, aligning the I/O shield with the rear cutout and securing the standoffs. Connect the 24‑pin ATX power cable and the 8‑pin (or 4+4) CPU power cable from your power supply to the motherboard.
• Install storage devices: insert NVMe SSDs into the M.2 slots and secure with screws; attach any SATA SSDs or HDDs to the appropriate ports. If you plan to use multiple drives, route cables neatly to maintain airflow and a clean build.
• Connect case USB, audio, and front panel headers to the motherboard as indicated in the manual. This includes power/reset buttons, power LEDs, and speaker connections.
• Power on and enter the BIOS to configure XMP/DOCP memory profiles, verify CPU performance options, and set up fan curves. Save settings and boot into your OS installation media or your preferred operating system.
• Install drivers and update the BIOS to the latest version using ASUS utilities. This ensures compatibility with the 13th Gen CPUs, Wi‑Fi 6E updates, and future hardware additions.

Frequently asked questions

• Q: What CPUs are supported by the Asus Prime PRIME B760M-A AX? A: The motherboard is designed for 13th Gen Intel Core processors and supports compatible 12th Gen CPUs as well, leveraging the LGA 1700 socket and the Intel B760 chipset for strong performance and efficiency.
• Q: Does this board support DDR5 memory? A: Yes. The PRIME B760M‑A AX supports DDR5 memory in dual‑channel configurations, delivering higher bandwidth and improved energy efficiency suitable for modern workloads and gaming.
• Q: Is Wi‑Fi included on this motherboard? A: Yes. The board includes built‑in Wi‑Fi 6E connectivity, providing fast wireless networking for gaming, streaming, and downloads without relying solely on Ethernet.
• Q: How many M.2 slots does it have? A: It features two M.2 slots with heatsinks, offering fast NVMe storage options alongside additional SATA ports for additional drives.
• Q: Is this motherboard good for overclocking? A: The PRIME series includes intelligent tuning features and a robust digital power design to support stable performance. While not a high‑end overclocking board, it offers AI‑assisted tuning for balanced speed and reliability on mainstream builds.
