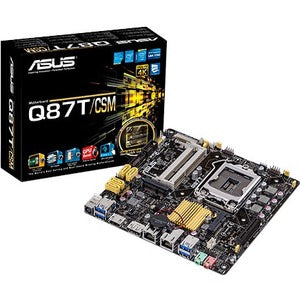

Asus Q87T/CSM Desktop Motherboard - Intel Q87 Express Chipset

A compact, dependable Mini-ITX motherboard built on the Intel Q87 Express chipset, designed to power small form factor PCs with 4th generation Intel Core processors. The Asus Q87T/CSM combines essential expansion, solid onboard graphics support, and enterprise-friendly stability in a slim footprint—perfect for compact gaming rigs, home theater PCs, and space-conscious workstations.

• Compact Mini-ITX design with a robust feature set: The Asus Q87T/CSM fits into compact cases without sacrificing core connectivity, delivering reliable performance for media centers, small offices, and space-constrained desktops. Its thoughtful layout and standard mini-ITX mounting ensure easy installation and tidy cable management, while maintaining room for essential upgrades and peripherals.
• Intel Q87 Express chipset and LGA1150 socket compatibility: Built around the Intel Q87 Express chipset and Socket H3 LGA1150, this motherboard is optimized for energy-efficient Haswell-based CPUs. It supports 4th Gen Intel Core processors (i7/i5/i3/Pentium/Celeron) in the LGA1150 package, giving you a broad performance range—from multitasking and media editing to everyday productivity—paired with integrated iGPU for smooth graphics output.
• Flexible memory and storage options for modern workflows: The Q87T/CSM supports DDR3 memory in a dual-channel configuration, enabling faster data transfers and improved multitasking. Combined with multiple SATA 6Gb/s ports for HDDs and SSDs, you can configure a responsive boot drive and ample storage for applications and media. This flexibility makes it suitable for both multimedia workloads and office productivity, all within a compact build.
• Expansion and connectivity tailored for small form-factor builds: The motherboard offers a PCIe x16 slot for discrete graphics or other expansion cards, plus a PCIe x1 slot for additional I/O options. It provides USB 3.0 and USB 2.0 ports, onboard Ethernet, and onboard audio to support modern peripherals and high-speed storage devices. Onboard graphics output from the Intel iGPU enables immediate display support, while the option to add a dedicated GPU lets you scale performance for gaming or GPU-accelerated tasks.
• Reliability, management, and user-friendly features: ASUS engineering brings stability and ease of use to compact systems. The board includes a straightforward UEFI BIOS with EZ Mode for quick setup, solid power delivery suitable for continuous operation, and comprehensive hardware monitoring to help you keep temperatures and voltages in check. For builders prioritizing quiet operation and long-term value, the Q87T/CSM offers a dependable foundation with clear upgrade paths and robust driver support.

Technical Details of Asus Q87T/CSM Desktop Motherboard

• Chipset: Intel Q87 Express
• CPU Socket: LGA 1150 (Socket H3)
• Form Factor: Mini-ITX
• Memory Support: DDR3 SDRAM, dual-channel
• CPU Support: 4th Generation Intel Core processors (i7/i5/i3/Pentium/Celeron) in the LGA1150 package
• Expansion Slots: PCI Express x16 and PCI Express x1
• Storage: SATA 6Gb/s ports for HDDs/SSDs
• Graphics: Onboard graphics output via Intel integrated graphics (iGPU)
• Networking: Integrated Ethernet port
• Audio: Onboard multi-channel audio
• USB Connectivity: USB 3.0 and USB 2.0 ports
• BIOS: UEFI BIOS with ASUS EZ Mode

How to install Asus Q87T/CSM

• Prepare your workspace and safety: unplug power, discharge static, and gather the components you need—Q87T/CSM motherboard, compatible CPU, cooler, memory, power supply, and case.
• Install the CPU into the LGA1150 socket: align the processor with the socket notches, place it gently, and secure the locking lever. Apply thermal paste as required and mount the cooler according to its instructions to ensure proper cooling.
• Install memory modules: insert DDR3 DIMMs into the dual-channel memory slots, ensuring they click into place with even pressure on both sides for a stable memory channel.
• Mount the motherboard in the case: align the I/O shield with the back of the case, position the motherboard over the standoffs, and secure it with screws. Connect front-panel connectors (power, reset, LEDs) to the appropriate headers as described in the motherboard manual.
• Attach power and storage components: connect the 24-pin ATX and 8-pin CPU power cables from the power supply, install SATA data and power cables for drives, and add any PCIe expansion cards if needed. Attach USB and front-panel USB headers as required.
• First boot and BIOS setup: power on and enter the UEFI BIOS. Load optimized defaults, configure boot order to your OS installation media, and enable features like XMP if your memory supports it. Save changes and exit, then install the operating system and all necessary drivers from the ASUS support site to ensure full chipset, audio, LAN, and USB functionality.

Frequently asked questions

• Q: What CPUs are supported by the Asus Q87T/CSM? A: It supports 4th Generation Intel Core processors in the LGA1150 socket, including i7/i5/i3, Pentium, and Celeron SKUs.
• Q: What is the form factor of this motherboard? A: Mini-ITX, designed for compact builds and small form-factor cases.
• Q: Can I overclock with this motherboard? A: The Q87 Express chipset paired with non-K CPU models does not support CPU overclocking; this board focuses on stability, efficiency, and reliable everyday performance rather than manual overclocking.
• Q: How many storage options does it provide? A: It features multiple SATA 6Gb/s ports to connect hard drives and solid-state drives for operating systems, applications, and media libraries.
• Q: Does it include built-in Wi-Fi? A: Built-in Wi-Fi is not typical for this model; you can add wireless functionality via a PCIe Wi-Fi card or USB wireless adapter if required.
