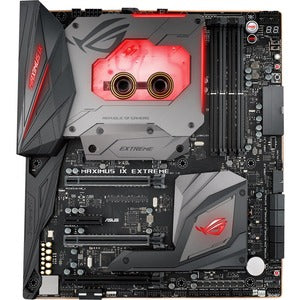

ASUS ROG MAXIMUS IX EXTREME — Z270 E-ATX Gaming Motherboard

Upgrade your battlestation with the ASUS ROG MAXIMUS IX EXTREME, a premier Z270 E-ATX motherboard engineered for 6th and 7th Gen Intel Core processors. It blends extreme cooling, expansive connectivity, and striking Aura Sync RGB lighting to deliver tournament-grade stability, lightning-fast storage, and elite overclocking potential. Built for enthusiasts and content creators who demand precision, this board pairs a water-cooling monoblock with robust power delivery to help you push limits while maintaining temperature control and reliability during long gaming sessions or intense benchmarking.

• Premium cooling and real-time monitoring: The integrated ROG water-cooling monoblock is designed to manage heat where it matters most. It includes flow and temperature sensing to actively optimize cooling performance, helping you sustain higher clock speeds without thermal throttling during extended gaming marathons or computational workloads.
• Dual M.2 for blistering storage: Equipped with two M.2 slots, this board enables PCIe NVMe SSDs to deliver ultra-fast boot times, rapid game loading, and smooth multitasking. The dual-M.2 setup gives you abundant, bandwidth-rich storage options for the fastest system responsiveness.
• Aura Sync RGB lighting for immersive styling: Fully addressable Aura Sync lighting across heatsinks, M.2 shields and the monoblock creates a vivid, customizable aesthetic. Sync compatible components and peripherals to achieve a cohesive look that can be tailored to your build’s theme and mood.
• Blazing-fast connectivity and wireless capability: Thunderbolt 3 support, USB 3.1 Gen 2 Type-A/C ports, and built-in 802.11ac Wi‑Fi provide high-speed peripherals, external storage, and reliable wireless networking for streaming, gaming, and productivity without bottlenecks.
• Extreme memory support and robust overclocking: Supports DDR4 memory up to 4133MHz (OC), enabling ultra-low latency and smoother frame rates. Combined with a refined power design and comprehensive overclocking features, the MAXIMUS IX EXTREME is built for competitive tuning and demanding workloads.

Technical Details of Asus ROG MAXIMUS IX EXTREME

• Chipset: Intel Z270
• CPU Socket: LGA1151 (Socket H4)
• Form Factor: Extended ATX (E-ATX)
• Memory Support: DDR4, up to 4133MHz (OC)
• Storage: Dual M.2 slots with PCIe NVMe support
• Networking: 802.11ac Wi‑Fi built-in; Thunderbolt 3 support
• USB Connectivity: USB 3.1 Gen 2 Type-A and Type-C
• Cooling: Integrated ROG water-cooling monoblock with flow and temperature sensing
• Lighting: Aura Sync RGB lighting across supported components
• CPU Compatibility: Supports 6th and 7th Generation Intel Core processors

How to install Asus ROG MAXIMUS IX EXTREME

• Prepare your workspace with an anti-static mat or wrist strap and ensure the system is powered off before handling the motherboard.
• Install the CPU into the LGA1151 socket, aligning the notches carefully and locking the socket lever into place. Apply thermal paste as recommended by your cooling solution and mount the water-cooling monoblock if you’re using this integration.
• Insert the RAM modules into the correct dual-channel DIMM slots, following the motherboard’s manual for optimal slot configuration. Ensure each module seats firmly with even pressure.
• Attach the M.2 storage drives to the two M.2 slots, securing them with screws. If you’re using both slots, configure BIOS settings to enable PCIe/NVMe for each drive to maximize performance.
• Mount the MAXIMUS IX EXTREME into your case using the appropriate standoffs. Connect the 24-pin ATX, 8-pin CPU, and any additional power connectors. Attach case fans, RGB controllers, and front-panel headers according to the user guide.
• Power on briefly to enter the UEFI BIOS. Update the BIOS to the latest version, enable XMP profiles for memory, and configure Aura Sync if you want synchronized lighting. Fine-tune fan curves and the overclocking profile if desired, then save settings and reboot.
• Install the operating system and drivers, including Intel chipset drivers, network adapters, USB drivers, and any ROG utilities for monitoring and performance tuning.

Frequently asked questions

• Q: What processors are supported by the ASUS ROG MAXIMUS IX EXTREME? A: It supports 6th and 7th Generation Intel Core processors on the LGA1151 socket, leveraging the Z270 chipset for optimized performance.
• Q: Does this motherboard include built-in wireless connectivity? A: Yes, it features 802.11ac Wi‑Fi, providing solid wireless networking without the need for an external card, along with USB 3.1 Gen 2 connectivity.
• Q: What cooling options does it offer? A: It includes an integrated ROG water-cooling monoblock with flow and temperature sensing to help maintain temperatures during heavy workloads and overclocking.
• Q: Can I use dual M.2 drives with this board? A: Absolutely. The MAXIMUS IX EXTREME provides two M.2 slots for high-speed NVMe storage, enabling fast system boot times and game loads.
• Q: Is Aura Sync lighting compatible with other components? A: Yes. Aura Sync can synchronize lighting across compatible ASUS devices and many third-party Aura-enabled components for a cohesive look.
