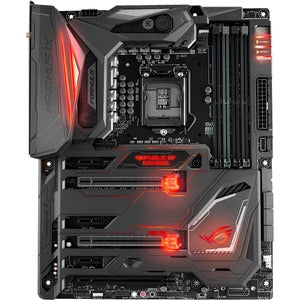

Asus ROG Maximus IX Formula: Elite Water-Cooled Z270 Gaming Motherboard

The Asus ROG Maximus IX Formula is the pinnacle of performance and style for serious gamers and overclocking enthusiasts. Built on the Intel Z270 platform with the LGA 1151 socket, this ATX motherboard is engineered to push high-end CPUs to their limits while keeping temperatures in check through advanced cooling integrations. Designed for hardcore water cooling, it features a dedicated CrossChill EK II VRM block that channels coolant directly to the power delivery system, enabling cooler operation, reduced throttling, and steadier boost clocks under heavy loads. Beyond cooling prowess, the Maximus IX Formula brings Aura Sync RGB ambience, an integrated I/O shield for a seamless build, and a full backplate that adds rigidity and a premium finish. If you crave extreme gaming performance, precision tuning, and a visually striking build, this board delivers with the reliability and stability that ROG is known for.

• CrossChill EK II VRM block integration: The Maximus IX Formula is purpose-built for liquid cooling enthusiasts. The CrossChill EK II VRM block draws coolant directly through the VRM area, enabling efficient thermal management for voltage regulation during aggressive overclocking. This design helps maintain lower temperatures under peak loads, reducing thermal throttling and preserving boost clocks while you push your system toward extreme performance. It’s ideal for enthusiasts who want to experiment with custom cooling loops without sacrificing stability or long-term reliability.
• Advanced power delivery and cooling architecture: Built to support high-core-count CPUs and sustained gaming workloads, the board features a robust VRM configuration with quality components and intelligent cooling considerations. The combination of premium chokes, solid capacitors, and adaptive cooling paths provides clean, stable power rails across the CPU and memory. When paired with the CPU and GPU overclocking potential of the Z270 platform, this design yields higher headroom, smoother operation, and more consistent frame rates in demanding titles. The result is a platform that remains steady under stress, enabling you to chase higher base and boost clocks with confidence.
• AURA Sync lighting and integrated I/O shield: The Maximus IX Formula delivers customizable RGB lighting across the motherboard and connected peripherals via Aura Sync. With multiple lighting zones and effects, you can tailor the look to match your rig’s theme, sync with RAM, GPUs, and other Aura-enabled devices, and create a cohesive end-user experience. In addition to lighting, the integrated I/O shield streamlines installation, delivering a clean, tool-free exterior while providing excellent EMI shielding and a tidy appearance inside the case. It’s a design that emphasizes both aesthetics and practical assembly.
• Rigid backplate and premium build quality: A full backplate reinforces the motherboard’s structure, improves rigidity, and contributes to more predictable thermal behavior by promoting uniform case airflow across the PCB. The combined engineering reduces flex during heavy component mounting and improves longevity in rugged builds. The overall chassis-friendly design not only looks striking under a glass side panel but also stands up to the rigors of frequent upgrades, cable management, and long gaming sessions.
• Expansion, storage, and multi-GPU readiness: The Maximus IX Formula offers a sophisticated expansion footprint for high-performance gaming rigs. Expect multiple PCIe slots that accommodate modern GPUs, fast NVMe storage through M.2 slots, and SATA options to suit a wide array of storage configurations. The motherboard is engineered to support multi-GPU configurations where appropriate, as well as RAID configurations that suit power-user and enthusiast needs. The result is a flexible platform that adapts to evolving game titles and demanding software environments, while preserving signal integrity and bandwidth for critical components.

Technical Details of Asus ROG Maximus IX Formula

• Chipset: Intel Z270
• CPU Socket: LGA 1151
• Form Factor: ATX
• Memory: 4 x DIMM DDR4 slots, support for high-speed memory with overclocking (configurations vary by CPU and memory kit)
• Expansion Slots: PCIe 3.0 support with multiple x16/x8 configurations for GPUs and add-in cards
• Storage: 2 x M.2 slots with heatsinks for ultra-fast NVMe storage, plus multiple SATA 6Gb/s ports
• Networking: High-speed onboard connectivity designed for gaming and content creation (assembly and BIOS options support optimized network performance)
• Audio: Premium onboard audio solution designed for immersive multi-channel sound and clear voice capture
• RGB and Lighting: Aura Sync lighting with multiple zones for synchronized effects across compatible devices
• Cooling: CrossChill EK II VRM block integrated for optimized cooling of power delivery during heavy overclocking

How to Install Asus ROG Maximus IX Formula

• Prepare your case with the appropriate standoffs and ensure the PSU is removed or unplugged before handling the motherboard.
• Install the CPU into the LGA 1151 socket, making sure the orientation notch aligns with the socket. Secure the CPU by lowering the retention lever and applying the appropriate amount of thermal interface material if your cooler requires it.
• Place the memory modules into the correct DDR4 slots according to the motherboard’s manual to enable dual-channel operation. Ensure they are fully seated with the latches engaged.
• Mount your M.2 NVMe drives into the two M.2 slots, securing them with screws. If you are using a dual-drive configuration, arrange each drive so heat is effectively dissipated by the included heatsinks and board airflow.
• Install the water-cooling loop or include the CrossChill EK II VRM block connectors as designed. Route tubing for easy maintenance, avoiding sharp bends and ensuring the cooling path covers the VRM area as intended.
• Attach the motherboard to the case using the standoffs provided. Connect the 24-pin ATX and 8-pin (or 4+4) CPU power cables, along with necessary motherboard power connectors from the PSU.
• Connect case fans, front-panel USB, audio, power/reset buttons, and LEDs according to the motherboard manual. Use the Fan Xpert or BIOS to configure cooling curves for CPU and chassis fans, ensuring quiet operation during idle and robust cooling during load.
• Install your graphics card(s) into the primary PCIe slots and secure them with screws. If using SLI or CrossFire, follow the GPU vendor’s guidance for configuration and driver installation.
• Power on and enter the BIOS. Update to the latest firmware and apply any recommended profiles, including AI Overclocking or 5-Way Optimization if you want automated tuning. Configure Aura Sync settings to match your lighting preferences, and calibrate fans and pump speeds for your cooling setup.
• Install your operating system and motherboard drivers from the ASUS support site or bundled media. Run stability tests and monitor temperatures to ensure the CrossChill EK II cooling integration is performing as expected and that all components are stable under load.

Frequently asked questions

• What CPUs does the Asus ROG Maximus IX Formula support? It is built for Intel processors that fit the LGA 1151 socket on the Z270 platform, typically supporting 6th and 7th generation Intel Core processors depending on BIOS updates. Always verify CPU compatibility and microcode support on the official ASUS support page for your exact BIOS revision.
• Is this motherboard designed for water cooling? Yes. The Maximus IX Formula is specifically engineered for hardcore water cooling setups, featuring the CrossChill EK II VRM block to optimize VRM temperatures and enable stable, high-performance overclocking in sustained gaming or benchmarking scenarios.
• Can I use multiple GPUs with this board? The ROG Maximus IX Formula supports multi-GPU configurations, with PCIe lanes allocated for dual graphics cards where supported by the CPU and BIOS settings. Ensure you follow the motherboard manual and GPU vendor recommendations for proper configuration and driver installation.
• What kind of storage options does it offer? It includes multiple M.2 slots with heatsinks for fast NVMe storage and several SATA ports to accommodate a mix of SSDs and hard drives, enabling flexible and high-capacity storage configurations for games, media, and software.
• Does it have RGB lighting? Yes. Aura Sync lighting lets you personalize the motherboard’s look and synchronize lighting with compatible components and peripherals, creating a cohesive and immersive setup. You can adjust colors, brightness, and effects to fit your build theme.
