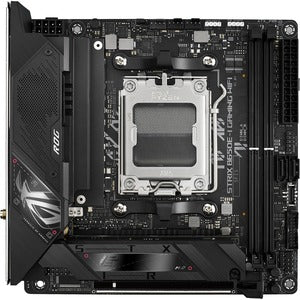

Asus ROG Strix B650E-I GAMING WIFI Mini ITX Motherboard

Experience desktop-grade performance in a compact, stealthy build with the Asus ROG Strix B650E-I GAMING WIFI. Engineered for Ryzen 7000 on the AM5 platform, this Mini ITX motherboard blends a robust VRM, DDR5 memory support, and PCIe 5.0 readiness into a tight 6.7 x 6.7 inch footprint. It’s the ideal foundation for a high-end, space-saving gaming PC that doesn’t compromise on power, cooling, or features. From DIY-friendly M.2 installation with Q-LATCH to integrated Wi‑Fi 6E and a premium audio path, the Strix B650E-I is built to elevate small-form-factor builds into a new standard of performance and style.

• Compact powerhouse: A true Mini ITX board that doesn’t trade performance for size, delivering Ryzen 7000-ready power in a small footprint for stealthy, space-saving builds.
• DDR5 and PCIe 5.0 ready: Supports fast DDR5 memory with generous overclocking headroom and PCIe 5.0 connectivity to maximize future-proofing for GPUs and NVMe storage.
• Dual M.2 with Q-LATCH: Easy, tool-less M.2 installation using Asus’ Q-LATCH for rapid NVMe upgrades and tidy cable management in compact builds.
• Networking for gamers: Built-in Wi‑Fi 6E plus a high-speed 2.5Gb Ethernet port ensures low-latency, high-bandwidth connectivity for online play and streaming.
• DIY-friendly design with Aura Sync: Pre-mounted I/O shield, user-friendly BIOS, robust VRM cooling, and RGB lighting control through Aura Sync to customize your rig’s look and performance.

Technical Details of Asus ROG Strix B650E-I GAMING WIFI

• CPU Socket: AM5
• Chipset: AMD B650E
• Form Factor: Mini-ITX (6.7 x 6.7 inches)
• Memory: 2 x DDR5 DIMM slots, up to 64GB total, DDR5 supported with high-frequency overclocking (DDR5-6400+ OC typical range)
• Memory Features: Dual-channel memory architecture with optimized trace routing for stability at high speeds
• PCIe: PCIe 5.0 readiness for graphics and one or more PCIe x4 slots for M.2 storage; other M.2 slots support PCIe 4.0 for versatile NVMe options
• M.2 Storage: 2 x M.2 slots with Q-LATCH for tool-less installation and secure retention
• Networking: Integrated Wi‑Fi 6E with Bluetooth connectivity for wireless peripherals and updates
• Ethernet: 2.5Gb Ethernet for low-latency online gaming and fast local transfers
• USB Connectivity: Front USB 3.2 Gen 2 Type-C header and rear I/O options for fast peripheral access
• Audio: Premium onboard audio path with shielded design and quality codecs for immersive game and chat audio
• RGB and Optics: Aura Sync-compatible lighting with customizable effects to match motherboard, components, and case aesthetics
• VRM and Cooling: Robust VRM design tailored for Ryzen 7000 workloads, complemented by efficient heatsinks and fan headers for optimal thermal performance
• Backplate and Shield: Pre-mounted I/O shield for quick alignment and easier installation, reducing build time
• BIOS/Software: User-friendly UEFI BIOS with intuitive tuning options and streamlined software for performance optimization

How to install Asus ROG Strix B650E-I GAMING WIFI

• Prepare your case and power supply: Ensure your chassis supports Mini ITX form factor and that you have a compatible power supply with the necessary connectors for Ryzen systems.
• Install the CPU: Open the AM5 motherboard socket, align the Ryzen 7000 processor, and securely latch the socket. Apply a small amount of thermal paste if your cooler requires it and seat your CPU evenly.
• Insert memory: Open the DDR5 DIMM slots, align the notches, and firmly press the modules until they click into place. Ensure both sticks are fully seated for dual-channel operation.
• Mount M.2 drives: Insert your NVMe SSDs into the two M.2 slots. Use the Q-LATCH levers to lock the drives in place with minimal effort and promote clean, tidy cable management.
• Install the board into the case: Align the motherboard standoffs, screw the Strix B650E-I into the chassis, and attach the I/O shield for a snug fit.
• Connect power and front panel: Attach the 24-pin ATX and 8-pin or 4+4 CPU power connectors, along with any required PCIe power for your GPU. Connect the case’s front panel buttons, USB headers, audio, and fans to the appropriate headers on the motherboard.
• Cool and configure: Install your cooler and case fans, then power on to enter the BIOS. Configure memory XMP profiles, enable PCIe storage options, and set boot priority for your OS.
• Network and software: Install the latest Wi‑Fi drivers if needed, update the BIOS to the latest version, and customize Aura Sync lighting to match your build’s theme.
• Test and optimize: Run stress tests to verify stability, power delivery, and cooling performance. Adjust VRM cooling, fan curves, and memory settings to balance performance with acoustics.

Frequently asked questions

Is the Asus ROG Strix B650E-I GAMING WIFI compatible with Ryzen 7000 processors?

Yes. The ROG Strix B650E-I GAMING WIFI is designed for the AMD Ryzen 7000 family and uses the AM5 socket with the B650E chipset to deliver optimized power delivery, memory support, and feature sets for modern Ryzen CPUs. It’s built to provide stable performance, efficient cooling, and reliable overclocking headroom for a compact Mini ITX build.

What networking options does this motherboard include?

The motherboard includes integrated Wi-Fi 6E for fast wireless connectivity and Bluetooth for peripherals, along with a dedicated 2.5Gb Ethernet port for wired networking. This combination ensures low-latency online gaming, smooth streaming, and rapid data transfer in a variety of network environments.

How many M.2 slots are available, and what are the PCIe configurations?

The Strix B650E-I GAMING WIFI provides two M.2 slots with tool-less Q-LATCH installation. PCIe 5.0 support is available for primary GPU connections and certain NVMe slots, with additional M.2 slots supporting PCIe 4.0. This mix enables high-speed storage options while maintaining ample room for a compact, high-performance build.

Can I overclock memory and CPU on this board?

Yes. The board is designed for Ryzen 7000 systems with DDR5 memory capable of high-frequency overclocking. While actual overclocking results depend on the processor silicon quality and cooling, the motherboard offers tuning options and robust VRM cooling to optimize stability and performance in demanding tasks and gaming.

What cooling and aesthetic features does the board offer?

The Strix B650E-I GAMING WIFI emphasizes DIY-friendly design with a solid heatsink setup for the VRM and M.2 drives, pre-mounted I/O shield for easy alignment, and Aura Sync RGB lighting to customize the look of your build. It’s ideal for gamers who want a visually striking system without sacrificing thermal performance or features.
