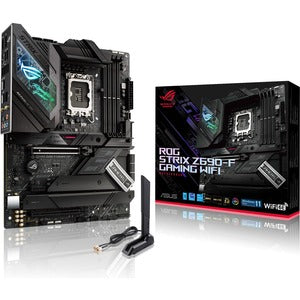

Asus ROG Strix Z690-F GAMING WIFI Desktop Motherboard – Intel Z690, LGA-1700, DDR5 & PCIe 5.0 Ready

Elevate your gaming rig with the Asus ROG Strix Z690-F GAMING WIFI motherboard. Built on the Intel Z690 chipset and the LGA-1700 socket, this ATX motherboard is engineered to unleash the full potential of 12th Gen Intel Core processors. It pairs premium power delivery with sophisticated cooling to maintain peak performance under load, whether you’re streaming, editing, or racing to the top of the esports ladder. With native DDR5 memory support, PCIe 5.0 readiness for next‑gen graphics and storage, and ASUS‑exclusive tuning features, the Strix Z690-F delivers responsive gameplay, faster load times, and a future‑proof platform for powerful builds and dynamic customization.

• Robust power design and cooling: The Strix Z690-F Gaming WIFI uses a premium voltage regulator module and large heatsinks to efficiently dissipate heat during overclocking or sustained gaming sessions, ensuring stability and cooler operation for long hours of play or heavy workloads.
• DDR5 memory and PCIe 5.0 readiness: Enjoy higher memory bandwidth and snappier system responsiveness with DDR5 support, plus PCIe 5.0 lanes for future‑proof GPUs and storage, delivering faster frame rates, quicker texture loads, and smoother multitasking in demanding titles.
• High‑performance networking: Built for competitive play, this motherboard features integrated WiFi 6E plus wired connectivity (2.5 Gb Ethernet) and ASUS networking optimizations to reduce latency, improve consistency, and support seamless streaming and online gaming at high speeds.
• Flexible storage and expansion: Multiple M.2 NVMe slots and PCIe expansion provide abundant, fast storage and versatile GPU configurations, enabling rapid boot drives, data‑heavy game libraries, and expansive workstation setups without compromise.
• Premium aesthetics and software suite: Signature ROG design with Aura Sync RGB, intuitive UEFI BIOS, AI overclocking tools, robust fan control, and comprehensive software support empower gamers and creators to tailor performance and visuals to their exact preferences.

Technical Details of Asus ROG Strix Z690-F GAMING WIFI

• Form Factor: ATX
• CPU Socket: LGA 1700
• Chipset: Intel Z690
• Memory Support: DDR5 memory with xmp/DOCP profiles for easy overclocking and higher bandwidth
• Expansion: PCIe 5.0 readiness for graphics cards and storage devices
• Networking: Integrated WiFi 6E (region dependent) and 2.5 Gb Ethernet for fast, low‑latency connectivity
• USB Connectivity: Multiple USB ports including high‑speed Type‑C and USB 3.x interface across rear I/O and front panel
• Storage: Several M.2 NVMe slots for ultra‑fast boot drives and game libraries, plus SATA options for additional storage
• Cooling and VRM: Robust VRM design with substantial cooling solution and multiple fan headers to manage CPU and chipset temperatures
• BIOS and Software: User‑friendly UEFI BIOS with AI overclocking, firmware‑level optimization, and Aura Sync support for synchronized lighting across compatible devices
• Audio: High‑quality onboard audio solution designed for immersive game sound and clear voice chat
• Other Features: ASUS‑exclusive features for tuning, cooling, BIOS FlashBack, and secure boot options for a stable, customizable build

How to install Asus ROG Strix Z690-F GAMING WIFI

Preparation: Before you begin, power down your system, unplug the power cord, and discharge any static electricity. Have your CPU, memory, GPU, storage, and power supply ready along with your motherboard manual for reference.

Step 1 — Prepare the chassis: Remove the side panels, install compatible case standoffs that align with the motherboard mounting holes, and ensure the rear I/O cutout is unobstructed for easy access to ports after installation.

Step 2 — Install the CPU: Lift the CPU socket lever, align the LGA‑1700 processor with the socket notch, gently seat it, and close the lever. Apply thermal compound if your cooler requires it, and secure the CPU cooler later in this sequence to avoid disturbing the socket.

Step 3 — Install memory: Open the DDR5 DIMM latches, insert memory modules in the recommended slots for dual‑channel operation, and press firmly until you hear a click. Verify both modules are fully seated and secured.

Step 4 — Mount the motherboard: Place the I/O shield in the case, align the motherboard with the standoffs, and slide it into place. Secure the board with screws, ensuring even pressure and no warping.

Step 5 — Attach cooling and fans: Mount the CPU cooler, connect its power to the designated CPU fan header, and connect chassis fans to the appropriate headers. Route cables to minimize obstruction to airflow and keep them away from fans and moving parts.

Step 6 — Install storage: Insert M.2 NVMe SSDs into the M.2 slots at a shallow angle and secure with screws. If your case includes shielded slots or heat shields, follow the board’s guidance to ensure proper contact and cooling.

Step 7 — Connect power: Attach the 24‑pin main power connector and the 8‑pin (or 4+4) CPU power connector from your power supply. Depending on your overclocking plans, you may add supplemental PCIe power to support high‑end graphics cards.

Step 8 — Install expansion cards: Seat the graphics card(s) in the PCIe x16 slots, secure with screws, and connect any required power cables. Install additional PCIe add‑ones or NVMe drives as needed for your build.

Step 9 — Front panel and peripherals: Connect the case’s front panel USB, audio, and power/reset cables to the motherboard headers as described in the manual. Attach any case lighting if applicable and confirm front‑panel indicators operate correctly.

Step 10 — BIOS setup and updates: Power on and enter the BIOS/UEFI. Enable XMP/DOCP for memory to reach rated speeds, set boot priority, configure fan curves for optimal cooling, and enable any preferred overclocking profiles or Aura lighting options. Save changes and exit, and perform a firmware update if needed for best compatibility and security.

Post‑installation checks: Boot into your operating system, install chipset drivers, GPU drivers, and any ASUS utilities you plan to use (AI Overclocking, Aura Sync, and Fan Expert). Run stability tests and monitor CPU, GPU, and memory temperatures to verify cooling efficiency and reliability.

Frequently asked questions

• Q: Does the Asus ROG Strix Z690-F support DDR5 memory?
• A: Yes. The motherboard is designed to support DDR5 memory with profiles that enable higher bandwidth and better efficiency, ideal for modern gaming and productivity workloads.
• Q: Is PCIe 5.0 available on this motherboard?
• A: The board is designed for PCIe 5.0 readiness, providing compatibility with next‑gen GPUs and fast storage devices as the ecosystem matures.
• Q: Does it include built‑in Wi‑Fi connectivity?
• A: Yes. It features integrated WiFi 6E (region dependent) alongside wired 2.5 Gb Ethernet for flexible, low‑latency networking options.
• Q: How many M.2 slots does the Strix Z690‑F have?
• A: It typically includes multiple M.2 NVMe slots, offering fast NVMe storage options for system drives and game libraries while leaving room for additional SATA storage as needed.
• Q: Can I customize RGB lighting on this board?
• A: Absolutely. The motherboard includes Aura Sync lighting that can be synchronized with other Aura‑enabled devices for a cohesive, immersive look across your PC build.
• Q: Are ASUS AI features available to help with overclocking?
• A: Yes. The Strix Z690‑F Gaming WIFI includes AI‑based tuning tools within the BIOS/firmware to assist with optimized performance while maintaining stability and cooling efficiency.
