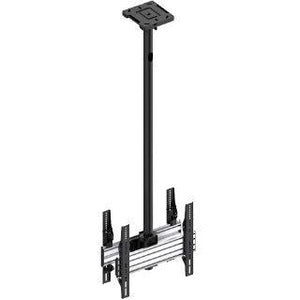

Atdec Ceiling Mount for Display — Dual Back-to-Back Digital Signage Solution

Elevate your digital signage with a purpose-built, pre-configured ceiling-mounted solution from Atdec’s ADB family. This dual-back-to-back system suspends two displays from the ceiling, delivering a clean, highly visible presentation for high-traffic environments such as lobbies, retail storefronts, airports, and concourses. Each display can weigh up to 110 lb (50 kg), giving you the flexibility to deploy a range of professional panels while maintaining a streamlined, professional aesthetic. The design prioritizes safety, reliability, and ease of installation, so you can deploy compelling signage quickly without compromising on performance or security.

With tilting brackets that enable downward tilt, these displays are optimized for pedestrian viewing, ensuring legibility even from street level or busy walkways. The dual-back-to-back configuration maximizes visibility from multiple angles while keeping floor space free, making it an ideal solution for wayfinding, promotions, real-time information, and broadcast content. The pre-configured nature of the system reduces on-site guesswork, allowing installers to focus on precise alignment and cable management. Built to withstand demanding commercial environments, the Atdec ceiling mount combines rugged construction with refined cable routing to keep installations neat and unobtrusive.

• Dual-display back-to-back configuration: A single ceiling-mounted package that supports two screens, delivering enhanced visibility without consuming floor space.
• High payload capacity: Each display supports up to 110 lb (50 kg), enabling a broad range of professional monitors and larger-format screens.
• Tilting brackets for optimal viewing: Downward tilt supported by sturdy brackets to maximize readability for pedestrians while preserving a compact ceiling footprint.
• Pre-configured ADB solution: Harnesses Atdec’s trusted ADB family components for reliable performance, easier setup, and consistent results across deployments.
• Clean, integrated cable management: Thoughtful routing and concealment of power and signal cables to maintain a tidy, professional appearance.

Technical Details of Atdec Ceiling Mount for Display

• Load capacity: Up to 110 lb (50 kg) per display in a dual-back-to-back configuration.
• Mount type: Ceiling suspension system designed for indoor environments and high-traffic spaces.
• Display orientation: Back-to-back layout with tilting brackets to provide downward tilt for pedestrians and improved viewing angles.
• Configuration: Pre-configured digital signage solution utilizing the Atdec ADB family components for streamlined deployment.

How to install Atdec Ceiling Mount for Display

Installing this dual-display ceiling mount is designed to be straightforward for professional integrators. Follow these steps to ensure a secure and visually appealing result that delivers reliable performance for digital signage applications.

• Plan the layout: Determine the optimal ceiling anchor points and ensure structural support is sufficient for two displays weighing up to 110 lb (50 kg) each. Verify clearances for tilt movement and viewing angles.
• Prepare mounting hardware: Use the included mounting plate, arms, tilting brackets, fasteners, and any required cable management components from the Atdec ADB family package. Confirm hardware compatibility with your ceiling type.
• Attach the ceiling plate: Secure the ceiling plate to structural members or appropriate anchors, following local building codes. Ensure the plate is level to maintain alignment of the two displays.
• Hang the display assemblies: Attach the dual-back-to-back mounting arms to the ceiling plate, then mount each display onto its respective bracket. Ensure both displays are securely fastened and balanced.
• Route and tidy cables: Use the integrated cable management paths to conceal power and video cables. Leave enough slack for tilt adjustments, and position cables to avoid pinch points during tilting.
• Configure tilt and alignment: With the displays mounted, adjust the tilting brackets to achieve the desired downward angle for pedestrian visibility. Fine-tune horizontal alignment so both screens are perfectly level and flush with each other.
• Test and finalize: Power on the displays, verify content display, ensure stability during operation, and perform a final safety check on all fasteners and pivot points.

Frequently asked questions

• Q: How many displays does this system support? A: The setup is designed for two back-to-back displays suspended from the ceiling.
• Q: What is the weight limit per display? A: Each display can weigh up to 110 lb (50 kg).
• Q: Can the displays be tilted after installation? A: Yes. The tilting brackets allow downward tilt to optimize pedestrian visibility and readability from viewing angles below the installation.
• Q: Is this solution suitable for indoor installations only? A: Yes. This ceiling-mount system is intended for indoor digital signage deployments in high-traffic areas.
• Q: Do I need to source additional components? A: The system is a pre-configured solution built around Atdec’s ADB family components to simplify installation, but installation may require site-specific connectors or cables based on your displays and power sources.
