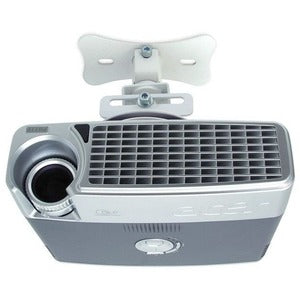

Atdec Ceiling Projector Mount - Fixed Drop, 33 lb Load, VESA 65x200

The TH-WH-PJ-FM flush ceiling projector mount is an expertly engineered solution designed for professional installations where reliability, clean aesthetics, and precise image alignment matter most. This fixed-drop ceiling mount delivers a low-profile, unobtrusive look while accommodating a wide range of projectors up to 33 pounds. With a robust build and thoughtful adjustability, it makes it easier to position your projector for optimal viewing in classrooms, boardrooms, home theaters, and multimedia spaces. The mount is engineered for straightforward installation, enabling you to deploy a secure, professional setup without compromising on flexibility or image quality.

• 360° projector rotation: Reposition your projection area with complete freedom. The mount allows full horizontal rotation so you can sweep your image across walls or screens without moving the projector from its ceiling position.
• Pitch and roll adjustment: Fine-tune alignment to achieve perfectly level images. Minor tilting (pitch) and rotation about the lens axis (roll) are simple to dial in, ensuring a crisp, square image on any screen.
• Fixed drop, flush ceiling design: A fixed drop keeps the projector at a consistent height, creating clean ceiling lines and a streamlined appearance that blends with any space while maintaining reliable projection geometry.
• Easy, quick installation: The TH-WH-PJ-FM is designed for straightforward mounting. With intuitive hardware and a compact footprint, you can install confidently and lock in your projector’s orientation with minimal effort.
• Compatibility and load capacity: Built to support a wide range of projectors, it handles up to 33 lb (approximately 15 kg) and accommodates VESA patterns up to 65 x 200 mm, making it suitable for many standard commercial and consumer projector models.

Technical Details of Atdec ceiling projector mount

• Load capacity: up to 33 lb (15 kg)
• VESA compatibility: up to 65 x 200 mm
• Rotation: 360° of projector rotation
• Tilt adjustments: Pitch and roll alignment available
• Mount type: Flush ceiling mount with fixed drop
• Installation: Designed for quick and straightforward mounting with included hardware
• Application: Suitable for classrooms, conference rooms, home theaters, and other fixed-install environments

How to Install Atdec Ceiling Projector Mount

• Plan the installation by selecting a ceiling location that provides clear projection with adequate clearance for vents, cables, and access. Verify structural integrity and weight capacity of the ceiling before mounting.
• Position the mounting plate or bracket as indicated by the included template, then mark the ceiling for drill locations. Use a stud finder or appropriate hardware to ensure secure anchoring into structural elements.
• Attach the mounting hardware to the ceiling, then secure the fixed-drop arm or plate to the ceiling hardware. Ensure the assembly is level and firmly tightened.
• Attach the projector to the mount using the projector’s VESA mounting holes. Align the projector with the mount and secure it with the appropriate bolts, ensuring a balanced configuration that avoids strain on any single point.
• Perform a test power-up and adjust the projection alignment. Use the 360° rotation to position the image, then fine-tune pitch and roll to achieve a perfectly square image on the screen or wall.

Frequently Asked Questions

• Q: What weight can this mount support? A: It supports up to 33 lb (15 kg), making it suitable for a wide range of standard projectors.
• Q: What VESA patterns are compatible? A: The mount accommodates VESA patterns up to 65 x 200 mm.
• Q: Can I adjust the projection angle after installation? A: Yes. The mount provides pitch and roll adjustments for precise image alignment, and 360° rotation for flexible positioning.
• Q: Is the drop fixed or adjustable? A: The model features a fixed drop, delivering a clean ceiling line and consistent projection height.
• Q: Is installation difficult for non-professionals? A: The design emphasizes ease of installation with clear hardware and instructions, but always ensure ceiling structure is suitable and follow safety practices during mounting.
