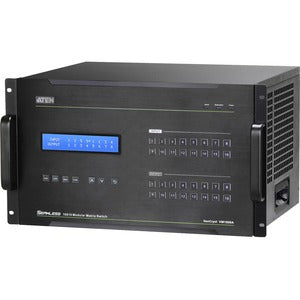

ATEN 16 x 16 Modular Matrix Switch - TAA Compliant

The ATEN Modular Matrix Solution Series delivers enterprise-grade video routing with unmatched flexibility. Designed around the VM1600A (16x16) and VM3200 (32x32) Modular Matrix Switches, it combines a scalable core with a family of hot-swappable I/O boards. This architecture enables real-time control and precise, reliable routing of video sources to displays across a single system, perfect for control rooms, broadcast environments, educational institutions, and corporate AV deployments. Built to meet solid industry standards, including Trade Agreements Act (TAA) compliance, ATEN’s modular matrix solution is engineered to grow with your needs—from compact setups to expansive matrix configurations—without sacrificing performance or control. Whether you’re consolidating sources, expanding display endpoints, or requiring robust access management, this solution delivers flexible, future-ready video routing in a compact, modular package.

• Real-time routing and control: Route 16 or 32 independent video sources to 16 or 32 displays with responsive, low-latency switching, enabling seamless, professional-grade AV experiences in mission-critical environments.
• Modular, hot-swappable I/O boards: Expand and customize your system on the fly. Swap or add I/O modules without powering down, delivering flexible configurations that adapt to evolving installation needs.
• Scalable architecture for growing deployments: Start with a compact 16x16 matrix and scale to 32x32 by adding compatible I/O boards and expanding inputs/outputs as your operation expands, all managed from a unified control interface.
• Centralized control and management: Intuitive user interfaces, front-panel controls, and networked management options provide real-time status, routing, and diagnostic capabilities for efficient operation and quick troubleshooting.
• TAA compliant and RoHS certified: Built to meet governmental procurement requirements and environmental standards, ensuring reliability, compatibility, and responsible design across professional installations.

Technical Details of ATEN 16 x 16 Modular Matrix Switch

• Model family and purpose: ATEN VM1600A and VM3200 Modular Matrix Switches designed to work with a range of hot-swappable I/O boards to create a flexible video routing matrix.
• Matrix configuration: 16 inputs x 16 outputs (VM1600A) or 32 inputs x 32 outputs (VM3200) depending on model and I/O board configuration, enabling comprehensive routing across multiple sources and displays.
• Modular I/O approach: Uses hot-swappable I/O boards to tailor the system to specific signal formats and connectivity requirements, allowing on-site expansion without downtime.
• Control options: Management via front panel controls, web-based GUI, and networked control interfaces, providing multiple ways to configure routes, monitor status, and integrate with existing management ecosystems.
• Compliance and reliability: TAA compliant with RoHS certification, designed for continuous operation in demanding environments, and suitable for enterprise-grade AV installations.

How to install ATEN 16 x 16 Modular Matrix Switch

• Plan your configuration: Determine whether VM1600A (16x16) or VM3200 (32x32) best fits your needs and select the appropriate modular I/O boards to support your video formats and connections.
• Rack and mount: Secure the matrix switch and any required I/O modules into a standard AV/IT rack, ensuring proper ventilation and cable management for reliable operation.
• Connect inputs and outputs: Attach video sources to the designated inputs on the I/O boards and connect the outputs to your displays or downstream equipment. Maintain clear labeling for easy routing management.
• Establish control paths: Connect control interfaces (front panel, Ethernet/LAN, or management network) to enable management software access. Ensure network settings conform to your IT/security policies.
• Configure routing and test: Access the management interface to define routing tables, create presets, and implement access controls. Test each route to verify signal integrity and latency, then save the configuration for production use.

Frequently asked questions

• What is the ATEN 16 x 16 Modular Matrix Switch? It is a modular, scalable video routing solution that combines VM1600A (16x16) or VM3200 (32x32) matrix switches with hot-swappable I/O boards to route multiple video sources to multiple displays in real time.
• How many inputs and outputs can it handle? The system supports 16x16 configurations (VM1600A) and up to 32x32 configurations (VM3200) when paired with compatible I/O modules, enabling flexible routing for sizable AV setups.
• What control options are available? You can manage routing via the front panel, a web-based GUI, or network management software, with options for local control and remote administration for large deployments.
• Is the solution TAA compliant? Yes, this ATEN modular matrix solution is TAA compliant, suitable for institutions and organizations that require adherence to trade and procurement standards.
• Can I upgrade or expand the system without downtime? Yes. The modular I/O boards are hot-swappable, allowing on-the-fly upgrades and expansion without powering down the matrix switch, minimizing downtime and disruption.
• What kind of formats and connectivity does it support? The system is designed with modular I/O boards to accommodate a range of video formats and interfaces; exact formats depend on the I/O modules installed, allowing customization for the specific AV environment.
• Is this suitable for control rooms and education environments? Absolutely. Its real-time routing, scalable architecture, and centralized management make it well-suited for control rooms, lecture halls, auditoriums, and corporate AV installations that demand reliability and flexibility.
