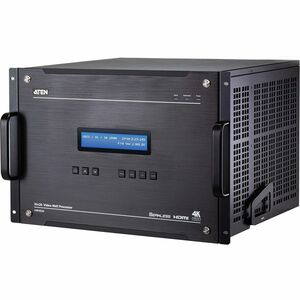

ATEN 36 x 20 Modular Video Wall Processor

ATENSKU: 9745746

Price:
Sale price$17,605.37

Description

ATEN 36 x 20 Modular Video Wall Processor

Experience immersive, edge-to-edge imagery with the ATEN VW3620—an enterprise-grade, True 4K hardware-based video wall processor engineered for demanding AV environments. Designed for control rooms, corporate lobbies, broadcast studios, and large-scale digital signage, this 36-in/20-out modular powerhouse delivers pristine 4K60 4:4:4 video across expansive canvases with seamless switching, ultra-low latency, and rock-solid reliability. Built to scale with your needs, the VW3620 couples advanced image processing with a flexible modular architecture, enabling you to assemble the exact input/output matrix required for today and expand as your project evolves. If you demand flawless real-time video, robust control, and future-proof performance, the VW3620 is the solution that merges technical excellence with practical operability.

  • 36 inputs x 20 outputs in a modular chassis architecture that scales with your display wall, enabling expansive layouts without data bottlenecks or latency spikes. This architecture supports complex video wall configurations, multi-source processing, and dynamic windowing across a large matrix, ensuring every screen receives crisp, synchronized video.
  • True 4K60 4:4:4 HDMI processing delivers uncompromising color fidelity and detail. The VW3620 handles HDMI sources up to 4K60 with full chroma sampling, guaranteeing accurate color reproduction, sharp edge detail, and reduced color banding across the entire video wall—essential for critical visualization, medical imaging, or financial dashboards.
  • Seamless switching and real-time processing minimize latency during source changes, wall reconfigurations, and window re-mapping. The hardware-based engine maintains consistent frame rates and smooth transitions, ensuring a professional viewing experience even in latency-sensitive applications such as live monitoring or news feeds.
  • Modular scalability with flexible input/output expansion allows you to adapt the video wall precisely to your venue. Add-on cards and modules enable more inputs, outputs, or processing features without replacing the core unit, protecting your investment as display demands evolve over time.
  • Robust control, bezel compensation, and reliability are built into the VW3620. Advanced bezel compensation corrects for screen gaps, while robust error handling, redundant power options (where available), and enterprise-grade management interfaces provide dependable operation in 24/7 environments.

Technical Details of ATEN 36 x 20 Modular Video Wall Processor

  • Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to install ATEN 36 x 20 Modular Video Wall Processor

  • Plan your wall configuration: Map out the desired wall layout, bezel compensation needs, and windowing strategy. Determine which sources will feed which sections of the wall and prepare cables accordingly to minimize install time.
  • Mount and power the chassis: Install the modular video wall chassis in a standard rack, ensuring proper ventilation and clearance for heats sinks and fans. Connect the power supply, following the manufacturer’s safety guidelines and power source recommendations for stable operation.
  • Insert and configure modules: Add the appropriate input/output processing modules for your deployment. Secure modules firmly, then connect HDMI cables from video sources to the input cards and from the outputs to the display panels or switchers as planned.
  • Connect control and network interfaces: Establish control access via RS-232, USB, or Ethernet as supported by your configuration. Ensure network connectivity for management software, firmware updates, and remote monitoring where applicable.
  • Configure wall matrix and content flow: Use the supplied management software or onboard control panel to define the matrix mapping, bezel compensation, color management, scaling, and windowing. Load test patterns and verify synchronization across all outputs, then test with real content to confirm alignment and timing.

Frequently asked questions

  • What resolutions are supported? The ATEN VW3620 supports HDMI sources up to 4K60 with 4:4:4 chroma sampling, enabling true 4K performance across the entire video wall. This is ideal for broadcast-grade displays, digital signage, and data-intensive visualization.
  • How many inputs and outputs can I use? The system provides 36 inputs and 20 outputs in a modular, scalable configuration. Depending on the exact card set and chassis options, you can tailor the matrix to fit large-scale installations and expand later as requirements grow.
  • Is bezel compensation available? Yes. The VW3620 includes advanced bezel compensation and warping capabilities to render seamless imagery across multi-panel walls, minimizing the visual gaps between screens for a cohesive display.
  • Is this solution hardware-based? Yes. The VW3620 is a hardware-based video wall processor, delivering low latency, deterministic performance, and consistent image quality even under demanding workloads and real-time switching demands.
  • Does it support HDCP and protected content? The device supports HDMI interfaces with HDCP compliance, allowing secure playback of protected content when connected to appropriate displays and sources.
  • How do I manage and monitor the system? Management is typically performed via a dedicated software suite or control panel, enabling real-time status monitoring, layout changes, firmware updates, and remote troubleshooting to streamline operations in control rooms or venues.
  • Can I upgrade the system later? Yes. The VW3620’s modular design supports expansion through additional input/output cards or processing modules, enabling you to scale your wall without replacing the core processor.
