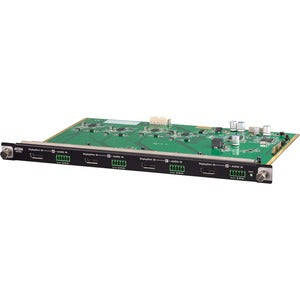

Aten VM7904: 4-Port 4K DisplayPort Input Board - TAA Compliant

The VM7904 is a high-performance 4K DisplayPort Input Board engineered to work with ATEN Modular Matrix Switch systems. It delivers a streamlined solution for routing four DisplayPort video and audio sources to a large number of displays—up to 16 or 32—by integrating seamlessly into a modular matrix environment. Designed for professional installations in control rooms, digital signage networks, classrooms, auditoriums, and executive boardrooms, this board offers reliable 4K video capture, synchronized audio handling, and a compact, modular approach to video routing. With TAA compliance, the VM7904 supports procurement needs for government and enterprise deployments, providing a trusted path to scalable, centralized AV distribution without sacrificing image quality or performance.

• 4-Port DisplayPort input with 4K capability: The VM7904 accepts four independent DisplayPort sources and brings them into your ATEN Modular Matrix Switch system, allowing high-resolution 4K video to be routed with minimal latency. This makes it ideal for applications requiring crisp, detailed imagery across multiple displays, from data-intensive dashboards to immersive digital signage.
• Unified video and audio routing: In addition to its robust video inputs, the VM7904 provides integrated audio support that enables synchronized audio transmission alongside video. This feature simplifies installations by consolidating AV signal management, ensuring that both picture and sound arrive at each destination display exactly when needed.
• Seamless integration with ATEN Modular Matrix Switches: The VM7904 is purpose-built to pair with ATEN’s modular matrix architectures, delivering a scalable path from a small number of sources to large, dynamic display networks. Its design emphasizes plug-and-play compatibility, streamlined configuration, and efficient use of switch resources to maximize routing options across your infrastructure.
• TAA compliant for government and enterprise deployments: The inclusion of Trade Agreements Act compliance broadens the range of environments where the VM7904 can be deployed, making it a practical choice for organizations with procurement requirements that emphasize legal and compliant hardware solutions.
• Optimized for multi-display environments with reliable performance: By combining four high-quality DisplayPort inputs with precise routing capabilities, the VM7904 helps deliver consistent image quality across complex display layouts. Operators gain predictable performance in environments that demand steady, uninterrupted AV distribution and easy management from a centralized control interface.

Technical Details of VM7904

• Model: VM7904
• Type: 4-Port DisplayPort Input Board
• Video inputs: 4 x DisplayPort (DP) inputs
• Resolution support: 4K DisplayPort input capable (high-resolution video signal capture for routing through ATEN Modular Matrix Switches)
• Audio support: 4-channel stereo audio associated with DisplayPort sources
• Core function: Routes four DP video and audio sources through the ATEN Modular Matrix Switch system to multiple displays
• Compatibility: Designed to work with ATEN Modular Matrix Switches for scalable multi-display distribution
• Compliance: TAA compliant
• Applications: Ideal for control rooms, digital signage networks, classrooms, auditoriums, and enterprise installations requiring centralized AV routing

How to install VM7904

• Prepare the system: Power down the ATEN Modular Matrix Switch chassis and ensure you have the proper ventilation and cable management for a clean installation.
• Install the board: Insert the VM7904 into the designated slot or backplane slot within the ATEN Modular Matrix Switch chassis according to the product manual for your model. Ensure a snug, secure fit to maintain signal integrity and reliable operation.
• Connect sources: Connect four DisplayPort sources to the DP inputs on the VM7904 using high-quality DisplayPort cables. Route each source to the corresponding input channel as required by your routing plan.
• Attach audio paths (if applicable): If your installation uses the VM7904’s audio capabilities in conjunction with DisplayPort signals, connect the associated audio cables or rely on the integrated DP-audio path as guided by your matrix configuration.
• Configure routing: Power on the system and use the ATEN management interface to configure routing rules. Define how each DP input will be distributed across the 16 or 32 displays in your matrix network, and set any required display alignment, EDID handling, or scaling options as supported by your switch.
• Test and validate: Run a thorough test of video and audio across all displays, confirming synchronization, latency, and quality. Make adjustments in the management software as needed to optimize performance for your venue or workflow.
• Documentation and maintenance: Keep the system documentation handy and monitor firmware updates from ATEN to ensure ongoing compatibility and performance with evolving AV networks.

Frequently asked questions

• What is the VM7904 used for?

  The VM7904 is a 4-Port DisplayPort Input Board designed to integrate with ATEN Modular Matrix Switches, enabling the routing of four DP video and audio sources to multiple displays in a scalable, centralized AV distribution system.

• Does the VM7904 support 4K resolution?

  Yes. The VM7904 is a 4K DisplayPort input board, enabling high-resolution video capture and routing when used in conjunction with compatible ATEN matrix switches.

• Is the VM7904 compatible with all ATEN matrix switches?

  The VM7904 is designed to work with ATEN Modular Matrix Switch systems. For best results, ensure your matrix chassis and software version are compatible with the VM7904 and follow the official setup guidance.

• What does TAA compliance mean for this board?

  TAA compliance indicates the product meets specific procurement and trade requirements applicable to government and enterprise deployments, making it eligible for purchase through programs that require Trade Agreements Act-compliant hardware.

• How many displays can I drive with this setup?

  The VM7904 routes four DP inputs through a compatible ATEN Modular Matrix Switch to up to 16 or 32 displays, depending on your matrix configuration and how you distribute outputs across the display network.

• How do I install the VM7904?

  Installation involves powering down the chassis, inserting the board into the appropriate slot, connecting DP sources and any audio paths, powering up, and configuring routing via the ATEN management software. Following the user manual for your specific ATEN model ensures a smooth setup.
