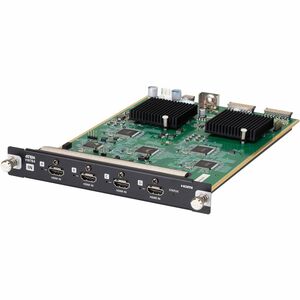

ATEN VW784: 4-Port 4K HDMI Input Board for VW Series
The ATEN VW784 is a high-performance 4-port 4K HDMI input board purpose-built to elevate video-wall applications powered by the VW3620 Modular Video Wall Processor. Designed for mission-critical environments, VW784 enables you to bring in four independent HDMI sources and route them to a large, immersive display wall with precision, reliability, and real-time responsiveness. It’s the ideal solution for control rooms, broadcast studios, command centers, corporate lobbies, and any scenario where uninterrupted, high-quality visual information is essential. With Seamless Switch technology, VW784 delivers instantaneous input changes without black screens, ensuring smooth, continuous operation even as sources shift in or out of the wall. In short, VW784 expands your video-wall capabilities while maintaining the stability and predictability required by demanding installations.
- Four HDMI inputs: Capture up to four simultaneous video sources and feed them into your VW wall topology for flexible display configurations.
- Seamless Switch support: Real-time, blank-free switching between sources to preserve viewer immersion and keep critical information visible during transitions.
- Designed for VW3620 integration: Optimized to work seamlessly with the VW3620 Modular Video Wall Processor, delivering tight coordination between source input and wall output.
- 4K-capable performance: Supports high-resolution input to maintain crisp, detailed imagery across large-scale video walls in demanding environments.
- Reliability for mission-critical deployments: Built to endure continuous operation in control rooms and other environments where uptime matters, with robust integration and setup flexibility.
Technical Details of VW784
- Product family: VW784 4-Port 4K HDMI Input Board for VW Series
- Inputs: 4 x HDMI inputs for multi-source ingestion
- Resolution support: Supports high-resolution video up to 4K for compatible VW Series configurations
- Switching: Seamless Switch for instant, uninterrupted source transitions
- Compatibility: Specifically designed to integrate with the VW3620 Modular Video Wall Processor
- Form factor: Internal board module intended for VW chassis installations
- Application: Ideal for mission-critical video walls across control rooms, broadcast facilities, and executive environments
How to install VW784
- Power down the VW3620 system and unplug the power to ensure a safe installation.
- Open the VW3620 chassis and locate the expansion slot or slot compatible with VW784 as described in the VW3620 installation guide.
- Insert the VW784 into the designated slot, ensuring the interface contacts are fully seated and secure.
- Connect each HDMI source to one of the VW784 input ports using high-quality HDMI cables rated for the desired resolution and refresh rate.
- Reassemble the chassis, reconnect power, and boot the VW3620 system. Use the VW3620 control interface to configure input routing and enable Seamless Switch for live operation.
Frequently asked questions
Q: What is VW784?
A: VW784 is ATEN’s 4-port 4K HDMI input board designed for use with the VW3620 Modular Video Wall Processor. It allows you to bring in four HDMI sources to feed a video wall and manage them with seamless switching for uninterrupted displays.
Q: What does Seamless Switch do on VW784?
A: Seamless Switch enables real-time, blank-free switching between input sources. This minimizes display downtime during source changes and helps maintain continuous on-wall content in busy environments such as control rooms or command centers.
Q: What hardware is required to use VW784?
A: VW784 is designed to work with the VW3620 Modular Video Wall Processor. Install VW784 into a compatible VW chassis, connect four HDMI sources to the inputs, and manage routing and switching through the VW3620 control interface.
Q: What resolutions are supported by VW784?
A: VW784 supports high-resolution input suitable for 4K video walls when used in conjunction with compatible VW Series hardware. This enables detailed, impactful visuals on multi-display walls.
Q: Where is VW784 best used?
A: VW784 shines in mission-critical environments such as control rooms, security operations centers, broadcast studios, corporate lobbies, and large conference rooms where multiple HDMI sources must be monitored and presented on a single cohesive video wall.
