ATEN VM7814-TAA: 4-Port 4K HDMI Input Board for Modular Matrix Switches

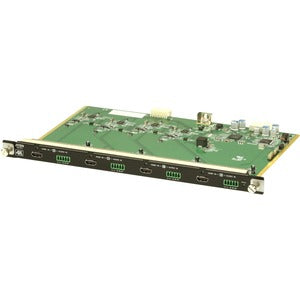

The VM7814-TAA is a high-performance 4K HDMI input board designed to slot into ATEN’s Modular Matrix Switch ecosystem. This compact module adds four independent HDMI input channels to your matrix system, enabling seamless routing of up to four HDMI sources to four displays with the convenience and reliability that ATEN is known for. Built to integrate with ATEN’s versatile matrix switching solutions, the VM7814-TAA streamlines multisource AV control in conference rooms, classrooms, control rooms, digital signage environments, and entertainment venues. With four stereo audio input ports, it also supports audio embedding, allowing you to synchronize and embed room or device audio directly into HDMI streams for a clean, unified AV presentation.

• Four HDMI input ports for effortless routing of four distinct sources into an ATEN Modular Matrix Switch.
• Four stereo audio input ports for embedding audio into HDMI signals, enabling synchronized AV playback without extra wiring or external audio routes.
• Designed to work in concert with ATEN Modular Matrix Switches to deliver flexible, scalable routing to multiple displays from a single centralized matrix system.
• 4K HDMI capability ensures high-resolution input support for today’s UHD content, supporting sharp visuals and clear detail on connected displays.
• TA A (Trade Agreement Act) compliant, making it suitable for use in government and educational procurement where compliance is required.

Technical Details of VM7814

• Model: VM7814
• Product Type: HDMI input board for ATEN Modular Matrix Switches
• Inputs: 4 x HDMI input channels
• Audio Inputs: 4 x stereo audio inputs for embedding
• Video Support: 4K HDMI input compatibility for ultra-high-definition sources
• Audio Embedding: Stereo audio embedded into HDMI outputs via the matrix switch workflow
• Compliance: TAA compliant for government and education procurement
• Compatibility: Designed to integrate seamlessly with ATEN Modular Matrix Switch systems
• Form Factor: Modular board intended for easy installation within ATEN chassis

How to Install VM7814

Follow these steps to deploy the VM7814 within your ATEN Modular Matrix Switch environment:

• Power down your ATEN chassis and confirm compatibility with a VM7814 installation in the modular frame.
• Locate an available expansion slot or bay in your ATEN Modular Matrix Switch and slide the VM7814 into place according to the chassis guidelines.
• Connect four HDMI sources to the four HDMI input ports on the VM7814. Ensure that cables are fully seated to prevent intermittent signal loss.
• Attach four stereo audio sources to the corresponding audio input ports if you plan to embed audio into HDMI outputs. This enables synchronized video and audio routing through the matrix.
• Power on the chassis and use the matrix switch management software or control interface to configure input-to-output routing. Assign each HDMI input to the desired display outputs according to your layout and presentation needs.
• Test each source on each display, verify audio synchronization, and adjust routing or audio embedding as necessary. Save your configuration for quick recall in future sessions.
• Ensure firmware, switch software, and the VM7814 are running compatible versions to maintain optimal performance and reliability across all four channels.

Frequently asked questions

Q: What is the VM7814 used for?

A: The VM7814 is an HDMI input board designed to add four HDMI input channels to ATEN Modular Matrix Switches. It enables you to route four separate video sources to four displays, with the option to embed stereo audio from dedicated inputs into the HDMI streams for a clean, consolidated AV signal.

Q: How many HDMI inputs does the VM7814 provide?

A: The VM7814 provides four independent HDMI input ports, allowing four simultaneous source connections to be routed within a compatible matrix system.

Q: Does the VM7814 support 4K content?

A: Yes. The VM7814 is designed to handle 4K HDMI input signals, enabling high-resolution content to be routed to compatible displays through the ATEN Modular Matrix Switch.

Q: Can I embed audio with the VM7814?

A: The VM7814 includes four stereo audio input ports that enable embedding of audio into HDMI streams as you route sources through the matrix, simplifying cabling and synchronization across displays.

Q: Is the VM7814 TA A compliant?

A: Yes. The VM7814 is TA A (TAA) compliant, making it suitable for procurement in government and educational environments that require compliance with trade regulations.

Q: What is required to use the VM7814?

A: To utilize the VM7814, you need a compatible ATEN Modular Matrix Switch chassis, the VM7814 board itself, HDMI cables for inputs, and optional stereo audio sources if you plan to embed audio. Proper firmware and management software are recommended to configure routing and maintain system performance.
