ATEN 4-Port HDBaseT Input Board - TAA Compliant

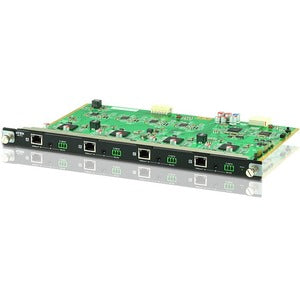

Discover a scalable, enterprise-ready solution for HDBaseT routing with the ATEN VM7514 4-Port HDBaseT Input Board. This compact module is designed to sit at the heart of ATEN’s Modular Matrix Switches, enabling a streamlined path for four HDBaseT transmitters to four HDBaseT receivers. When integrated into a larger ATEN matrix system, it unlocks the capability to support up to 32 input and 32 output HDBaseT connections, delivering a flexible, centralized routing platform for classrooms, boardrooms, houses of worship, broadcast studios, and other professional AV environments. The VM7514 is built to meet Trade Agreements Act (TAA) requirements, providing procurement-friendly compliance for government and educational deployments. A key feature is the bi-directional IR channel, which allows remote control signals to travel across the HDBaseT link, simplifying remote management and reducing the need for extra cabling or adapters. With its sturdy construction and straightforward integration, this 4-Port HDBaseT Input Board is an essential building block for scalable AV systems that demand reliability, performance, and simplified maintenance.

• 4-Port HDBaseT Input Board: The VM7514 consolidates four HDBaseT input ports into a compact module, enabling you to route four independent sources into your ATEN matrix. Each port transports video, audio, and control signals over a single CATx cable, delivering a clean, efficient wiring scheme and reducing installation time in complex environments.
• Seamless integration with ATEN Modular Matrix Switches: When paired with ATEN’s Modular Matrix Switches, the VM7514 expands routing capacity and simplifies system design. It helps you achieve a scalable HDBaseT network with up to 32 input and 32 output connections, making it easier to manage multiple sources and destinations across rooms or floors without sacrificing performance.
• Bi-directional IR channel for remote control: The built-in IR channel supports bi-directional communication, enabling remote control of sources and displays over the HDBaseT link. This feature minimizes additional cabling and simplifies control workflows, allowing presenters and technicians to navigate sources, displays, and presets from a single control point.
• TAA compliant for government and education procurement: The VM7514 is designed to meet Trade Agreements Act requirements, ensuring suitability for procurement in government agencies, schools, and other public-sector environments where compliance is essential.
• Easy integration, robust performance: The 4-Port HDBaseT Input Board is engineered for reliable, long-term operation within ATEN’s modular matrix ecosystem. Its compact form factor, solid connectors, and straightforward installation offer a practical path to scalable AV distribution with minimal wiring complexity and maintenance.

Technical Details of ATEN 4-Port HDBaseT Input Board-TAA Compliant

• Ports: 4 HDBaseT input channels for routing from transmitters to receivers within an ATEN Modular Matrix Switch environment.
• Compatibility: Designed to work in concert with ATEN Modular Matrix Switches, enabling scalable HDBaseT networks up to 32x32 in supported configurations.
• IR Channel: Bi-directional infrared transmission to support remote control signals across the HDBaseT link.
• Compliance: TAA compliant, suitable for procurement in government and educational settings.
• Form Factor: 4-port input board intended for easy integration into compatible ATEN matrix chassis.
• Signal Domain: HDBaseT-based routing that carries video, audio, and control signals over a single cable where supported by HDBaseT standards.

How to install ATEN 4-Port HDBaseT Input Board

• Power down the ATEN Modular Matrix Switch and all connected devices before installation. Ensure you have a clean, static-free workspace and the correct rack or enclosure space for the VM7514 module.
• Open the chassis or modular enclosure and locate the available slot designated for the VM7514. Confirm compatibility with your matrix model and confirm any required orientation or mounting guidelines.
• Insert the VM7514 module firmly into the designated slot, aligning connectors and securing it according to the manufacturer’s instructions. Make sure the module is seated properly and that any retention hardware is engaged to prevent movement.
• Connect four HDBaseT transmitters to the VM7514 input ports using high-quality CATx cables rated for HDBaseT transmission. Route cables neatly to minimize strain, interference, and accidental disconnections. Label cables for easy future maintenance.
• Link the corresponding HDBaseT receivers to the matrix outputs in accordance with your routing plan. Use shielded cables where possible to reduce potential interference and ensure signal integrity across the network.
• Power on the matrix switch and connected devices. Use the ATEN control interface to verify signal presence on each input port, then configure routing rules, and adjust any system-level settings such as input names and presets as needed for your installation.
• Test the IR path by sending control commands from the source side and confirming that the remote signals are correctly received and acted upon by the target displays or receivers. If issues arise, recheck cabling, port assignments, and control configuration within the matrix controller.
• Document the final configuration and perform a functional sweep to confirm stability under typical usage scenarios. Schedule routine checks to ensure continued reliability as your AV network scales.

Frequently asked questions

• What is the ATEN VM7514 responsible for? The VM7514 is a 4-Port HDBaseT Input Board that routes four HDBaseT transmitters to four HDBaseT receivers and integrates with ATEN Modular Matrix Switches to enable larger HDBaseT networks.
• Is the VM7514 TAA compliant? Yes. The board is described as TAA compliant, making it suitable for procurement in government and education contexts where this compliance matters.
• Can this board support a 32x32 HDBaseT network? When used with ATEN Modular Matrix Switches, it helps enable a scalable setup that can reach up to 32 input and 32 output HDBaseT connections in a matrix configuration.
• Does the VM7514 include an IR path? Yes. The board includes a bi-directional IR channel that allows infrared control signals to pass through the HDBaseT link, simplifying control without extra cabling.
• What environments benefit most from the VM7514? Educational institutions, corporate boardrooms, broadcast or houses of worship, and other professional AV deployments that require scalable, reliable HDBaseT routing with centralized control.
