ATEN VM8514 4-Port HDBaseT Output Board - TAA Compliant

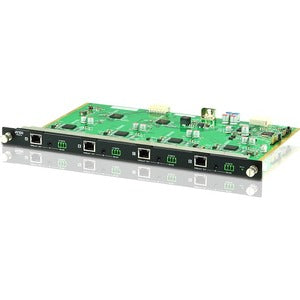

The VM8514 4-Port HDBaseT Output Board is a purpose-built solution for scalable AV distribution. Designed to work in harmony with ATEN Modular Matrix Switches, it streamlines the routing of four HDBaseT transmitters to four HDBaseT receivers, enabling flexible, room-to-room or zone-based AV layouts. This board helps you maximize the potential of your HDBaseT network by delivering clean, synchronized signals across multiple displays and receivers with minimal cabling and maximum reliability.

• 4-Port HDBaseT output board for flexible routing. The VM8514 provides four independent HDBaseT outputs, allowing you to route four distinct AV streams from a centralized matrix to four displays or receivers. Each port carries video, audio, and control signals over a single category cable, simplifying installation and reducing cable clutter in conference rooms, classrooms, auditoriums, or hospitality spaces. With robust shielding and high-quality connectors, this board preserves signal integrity even in environments with electrical noise or dense cabling.
• Seamless integration with ATEN Modular Matrix Switches. When deployed as part of an ATEN modular matrix ecosystem, the VM8514 unlocks scalable HDBaseT routing across extensive networks. It supports up to 32 input and 32 output HDBaseT channels within the matrix, enabling sophisticated multi-zone configurations. The combination provides an efficient path to future-proofed AV distribution, allowing IT teams and AV technicians to re-map destinations and adapt to changing room layouts without swapping hardware.
• TAA compliant for regulated procurement. The VM8514 is engineered to meet Trade Agreements Act requirements, making it suitable for government, education, and enterprise deployments that mandate compliant hardware. This compliance ensures easier bidding, procurement, and procurement transparency while delivering dependable performance and reliability that AV stakeholders expect from ATEN.
• Simple deployment and maintenance for professional environments. The design emphasizes practical installation: clearly labeled ports, straightforward cabling, and compatibility with existing matrix chassis. The HDBaseT pathways use standard CAT cables, reducing cabling complexity and cost. Routine maintenance and firmware updates can be performed via familiar ATEN control software or the matrix’s control interface, helping you keep the system current with minimal downtime.
• Enhanced AV delivery with durable performance across channels. HDBaseT technology carried by the VM8514 supports high-quality video, audio, ethernet, and remote control signals across long distances. The board maintains signal fidelity across all four channels, enabling synchronized playback and reliable performance in meeting rooms, classrooms, retail environments, and entertainment venues. Its resilient design mitigates interference from nearby electronics, delivering consistent results in challenging installation sites.

Technical Details of VM8514 HDBaseT Output Board

• Model: VM8514
• Ports: 4 HDBaseT outputs
• HDBaseT distance: Up to 100 meters over CAT5e/6/7 cable (distance depends on cable quality and installation conditions)
• Compatibility: Designed for use with ATEN Modular Matrix Switches to enable scalable HDBaseT routing
• Compliance: TAA Compliant

how to install VM8514

• Power down the ATEN modular matrix system and ensure all connected devices are safely disconnected before beginning installation.
• Insert the VM8514 into the appropriate slot or expansion bay in the ATEN matrix chassis as per the manufacturer’s installation guidelines, ensuring proper alignment and seating.
• Connect four HDBaseT transmitters to the four input points on the VM8514 using shielded CAT5e/6 cables of appropriate length, labeling each connection to match your planned routing map.
• Attach four HDBaseT receivers to the four output ports corresponding to the destinations you intend to drive; verify that each cable is secure and that the receivers are powered as required by your setup.
• Power on the matrix system and use the ATEN control software or the built-in matrix interface to map each input channel to the desired output(s). Run a quick test to confirm that video, audio, and control signals are synchronized and correctly routed to each receiver, adjusting latency or timing settings if your environment requires it.

Frequently asked questions

• Q: What does the VM8514 do? A: It provides a dedicated 4-port HDBaseT output board that routes four HDBaseT signals from transmitters to receivers, enabling scalable, multi-zone AV distribution when used with ATEN Modular Matrix Switches.
• Q: Is VM8514 compatible with ATEN matrix switches? A: Yes. The VM8514 is designed to work with ATEN Modular Matrix Switches, expanding HDBaseT routing capabilities and allowing you to build flexible 32x32 HDBaseT networks as your needs grow.
• Q: How far can HDBaseT run on VM8514? A: HDBaseT channels can extend up to 100 meters over CAT5e/6/7 cabling, though actual distance may vary based on cable quality, connectors, and installation conditions. Always test in your environment to confirm performance.
• Q: Is VM8514 TAA compliant? A: Yes, VM8514 is TAA compliant, making it suitable for government, education, and enterprise procurement that requires compliant hardware.
• Q: Do I need special software to configure VM8514? A: Routing is managed through ATEN’s control software or the matrix’s built-in control interface. After installation, you map inputs to outputs using the software, enabling flexible, on-demand reconfiguration without hardware changes.
