Description

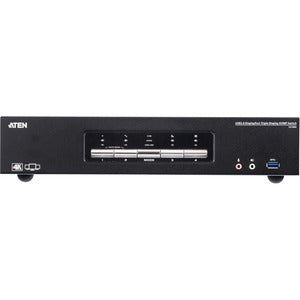

ATEN 4-Port USB3.0 4K DisplayPort Triple Display KVMP Switch
The ATEN CS1964 is a high-performance KVMP switch engineered to streamline a multi-PC, multi-monitor workflow. This 4-port USB3.0 device lets you control up to four computers from a single keyboard, mouse, and a triple-display setup, delivering crisp 4K visuals and rock-solid reliability. Designed for professionals who juggle multiple apps, datasets, and creative content, the CS1964 minimizes desk clutter while maximizing productivity, enabling seamless transitions between machines without sacrificing display quality or input responsiveness.
- Triple-display performance with true 4K capability: Support for three monitors at resolutions up to 4K DCI (4096 x 2160) at 60 Hz per display means you can lay out expansive workspaces for video editing, 3D design, software development, or financial modeling. This configuration keeps reference materials, tool palettes, and primary canvases visible simultaneously, reducing window-hopping and boosting focus and speed.
- Quad-Computer KVM with instant switching: Gain instant, reliable access to four different computers through a single USB keyboard and mouse. Choose switching methods that fit your workflow—front-panel push-buttons for tactile control, keyboard hotkeys for rapid toggling, or OS-level switching—to keep your hands on the work and your attention where it matters most. Per-PC EDID awareness ensures each machine maintains stable display output without manual recalibration.
- USB 3.0 keyboard and mouse sharing with peripherals: The built-in USB 3.0 hub supports fast peripheral sharing, enabling seamlessly responsive input from your keyboard, mouse, and supported USB devices across all connected hosts. This is especially helpful when you’re moving between tasks that demand quick access to USB peripherals like graphic tablets, external drives, or specialized hardware while preserving a smooth user experience.
- Flexible video compatibility with professional-grade reliability: Designed to work with three HDMI displays at 4K 60 Hz, the CS1964 delivers color-accurate, crisp imagery across multiple screens. EDID management and HDCP support help maintain compatibility with a broad range of monitors, graphics cards, and content-protected sources, reducing issues during complex multi-monitor deployments.
- Smart switching, management, and ergonomic design: Expect intuitive operation via a sturdy front panel, reliable hotkey switching, and convenient automatic switching features. The CS1964 is built to fit into busy workstations, providing clean cable management, quiet operation, and dependable performance in demanding environments such as design studios, engineering labs, and control rooms.
Technical Details of ATEN 4-Port USB3.0 4K DisplayPort Triple Display KVMP Switch
- Model: CS1964
- Ports and configuration: 4-port USB 3.0 KVMP hub with triple display outputs for three monitors; console USB ports for keyboard and mouse
- Video resolution: Supports up to 4K DCI (4096 x 2160) at 60 Hz per display on the triple-monitor setup
- Video interfaces: HDMI-based monitor connections for the triple display arrangement; EDID management and HDCP compatibility to ensure stable, protected content delivery
- USB capability: Built-in USB 3.0 hub for high-speed sharing of keyboard, mouse, and peripherals across all connected computers
- Switching methods: Front-panel push-buttons, keyboard hotkeys, and OS-level switching to accommodate different workflows
- Power and compatibility: External power supply included; designed for broad compatibility with common operating systems and hardware configurations
- Reliability and management: EDID auto-detect and adjustment help maintain stable display output; hot-plug support facilitates easy system reconfiguration without reboot
how to install ATEN 4-Port USB3.0 4K DisplayPort Triple Display KVMP Switch
To set up the ATEN CS1964 in a typical multi-PC, triple-monitor workspace, begin by planning your cable layout so that video, USB, and power cables can reach the switch without tension. Place the CS1964 on a stable desk surface near your computers, monitors, and peripherals to minimize cable clutter and simplify access during daily tasks.
Step 1: Connect the video outputs from each computer to the CS1964 using HDMI cables for the triple-monitor configuration. Assign each computer to a different input channel on the switch, ensuring that the trio of displays can be driven in the desired arrangement. If needed, verify that your graphics cards and cables support 4K at 60 Hz to achieve the best visual fidelity.
Step 2: Attach the three monitors to the corresponding monitor outputs on the CS1964. Make sure each display is powered on and set to the correct input source. If you intend to run mixed resolutions, rely on the switch’s EDID management to preserve consistent output across all screens.
Step 3: Connect your keyboard and mouse to the console USB ports on the switch. This placement allows you to control any of the connected computers without reconnecting peripherals when you switch hosts. If you use additional USB devices, plug them into the switch’s USB 3.0 hub so they can be shared across all systems.
Step 4: Plug the CS1964 into its power supply. Ensure that the power adapter is connected to a reliable outlet, and verify that the front-panel indicators show normal operation after powering on the setup. A stable power source helps prevent intermittent performance or display issues during switching.
Step 5: Power on all connected computers. Use the front-panel switch, keyboard hotkeys, or OS-level commands to begin switching between hosts. Begin with a simple configuration, such as Computer 1 driving all three displays, then gradually enable additional configurations as your workflow demands. If you encounter any display stability issues, re-check EDID settings or reseat cables to ensure secure connections.
Optional optimization: Configure hotkeys and display preferences to align with your most common tasks. For example, assign a specific host to a dedicated shortcut when you’re performing a recurring task across multiple machines. This optimization can dramatically reduce the amount of time spent navigating between systems and enhancing focus on high-priority work.
Frequently asked questions
- Q: How many computers can I control with the CS1964? A: The CS1964 supports instant control of up to four computers from a single keyboard and mouse, enabling coordinated work across multiple machines without constantly swapping cables.
- Q: Can I drive three 4K monitors at 60 Hz each? A: Yes. The triple-monitor setup is designed to deliver up to 4K DCI (4096 x 2160) at 60 Hz per display, assuming compatible graphics hardware and appropriate cabling.
- Q: What video connections are supported? A: The CS1964 provides HDMI-based monitor outputs for triple-display configurations and includes EDID management and HDCP support to ensure compatibility with modern displays and protected content.
- Q: Is EDID management automatic? A: Yes. The CS1964 includes EDID auto-detect and adjustment to maintain stable output when switching between hosts or reconfiguring the display setup.
- Q: Do I need software to operate the switch? A: No software installation is required for basic operation. The CS1964 uses hardware-based switching via front-panel controls and keyboard hotkeys, with OS-level switching available for advanced workflows.
