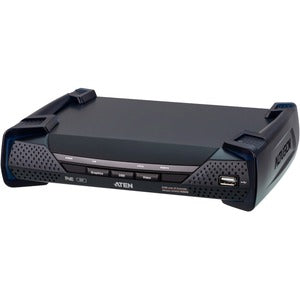

ATEN 4K DisplayPort Single Display KVM over IP Receiver with PoE

ATENSKU: 5694492

Price:
Sale price$1,484.58

Description

ATEN 4K DisplayPort Single Display KVM over IP Receiver with PoE

The KE9952 4K DisplayPort Single Display KVM over IP Extender is a high-performance solution designed to put full control of a host computer at your fingertips from a remote location. This IP-based KVM extender comprises two rugged, purpose-built units: the KE9952T transmitter that connects directly to the computer and the KE9952R receiver that delivers a responsive console at a distant site. By combining a single DisplayPort display with USB keyboard/mouse and peripheral support, this system enables seamless remote management for data centers, control rooms, and distributed workstations. Its PoE capability simplifies deployment by powering the remote receiver through the Ethernet network, reducing cabling clutter and eliminating unnecessary power bricks. If you need reliable, secure access to your computer from anywhere on your network, the KE9952 is engineered to deliver crisp 4K visuals, smooth input responsiveness, and flexible installation in a compact, scalable package.

  • 4K DisplayPort video path with single-display support: Experience crystal-clear visuals for professional tasks, design work, and multimedia playback. The KE9952 enables a single DisplayPort monitor at the remote site with the rich detail and color fidelity intrinsic to 4K content, making it ideal for engineering, media production, and data-intensive dashboards.
  • IP-based KVM over Ethernet for remote console access: Access and control the host computer from a distant location across your LAN or WAN. The KE9952T transmits video, USB keyboard/mouse, and other USB peripherals over IP, letting operators work as if they were directly connected to the PC without being physically present.
  • Remote USB console and peripheral passthrough: Interact with the host OS through a remote USB keyboard and mouse, and pass through USB devices such as flash drives, HID devices, and selected peripherals. This enables seamless operation and data transfer as part of daily workflow from the remote location.
  • Power over Ethernet (PoE) for streamlined deployment: The receiver unit supports PoE, enabling power delivery over the Ethernet connection. This reduces cable clutter, eliminates extra power adapters at the remote site, and simplifies installation in space-constrained environments.
  • Modular transmitter and receiver design for scalable deployment: The KE9952T and KE9952R work together to deliver a reliable, scalable solution suitable for single-user remote access or expanding to support multiple workstations in a centralized management model, ideal for data centers, operations rooms, and secure facilities.

Technical Details of ATEN 4K DisplayPort Single Display KVM over IP

  • Product family: ATEN KE9952 4K DisplayPort Single Display KVM over IP Extender
  • Transmitter: KE9952T connects directly to the host computer’s DisplayPort video output and USB (keyboard/mouse) signals for transmission over IP
  • Receiver: KE9952R provides the remote console with DisplayPort video and USB input/output, enabling local keyboard, mouse, and peripheral interaction
  • Video path: 4K DisplayPort video channel to the remote display, supporting a single-monitor configuration for high-definition output
  • Power: PoE-enabled receiver for simplified power delivery via Ethernet; transmitter power typically supplied separately according to installation requirements
  • Networking: IP-based link over standard Ethernet infrastructure, enabling remote access and control across local networks or remote sites
  • USB passthrough: Remote USB keyboard and mouse passthrough with compatibility for common USB devices drawn through the IP connection

how to install ATEN KE9952

  • Place the KE9952T transmitter near the host computer. Connect the computer’s DisplayPort output to the KE9952T DisplayPort input, and attach the local USB keyboard/mouse to the KE9952T’s USB ports. Connect the KE9952T to your network via an Ethernet switch or direct link, using a standard network cable.
  • Position the KE9952R receiver at the remote console. Connect the remote DisplayPort monitor to the KE9952R, and attach a USB keyboard/mouse (and any supported USB peripherals) to the KE9952R. Connect the KE9952R to the same Ethernet network, ensuring the PoE option is enabled on the switch if you plan to power the receiver through PoE.
  • Link the transmitter and receiver over IP. Ensure both units are powered, and configure IP addresses (DHCP or static) as required by your network policy. Use the included management interface to pair the KE9952T and KE9952R for secure, reliable operation.
  • Test the remote console. Power on the devices, switch to the remote console, and verify that keyboard/mouse input is correctly captured by the host and that the DisplayPort video is accurately presented at the remote display. Adjust resolution and performance settings if needed.
  • Fine-tune security and access controls. If your environment requires authentication or user-specific access, configure these settings in the KE9952 management interface. Validate that only authorized users can access the host via the remote console.

Frequently asked questions

What is the KE9952? The KE9952 is ATEN’s 4K DisplayPort Single Display KVM over IP Extender, composed of a transmitter (KE9952T) that connects to the host computer and a receiver (KE9952R) that provides remote console access. It enables remote control of a PC over a network with a single DisplayPort display and USB keyboard/mouse support.

Does KE9952 support PoE? Yes. The KE9952R receiver is PoE-enabled, allowing it to be powered through the Ethernet connection. This reduces the need for separate power adapters at the remote site and simplifies deployment, especially in distributed environments.

What resolutions are supported? The system is designed for 4K DisplayPort video with a single display. This delivers high-quality visuals suitable for professional applications that require sharp detail and accurate color reproduction.

Can I access the host over a WAN or across different sites? The KE9952 is IP-based and designed for networked environments. It can be used over LAN or WAN, depending on network configurations, bandwidth, and security policies. Ensure appropriate firewall rules and network routing are in place to support remote access.

What peripherals can I use with KE9952? The KE9952 supports remote USB keyboard and mouse, and can passthrough USB peripherals over the IP link as supported by the system. For compatibility details, refer to ATEN’s documentation for supported USB devices and driver requirements.
