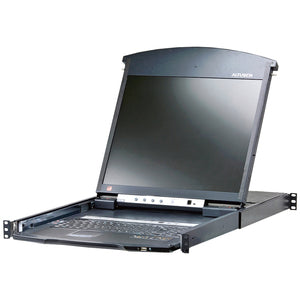

Aten 8-Port 19" Dual Rail LCD IP Cat5 KVM

Designed for high-demand data centers and IT rooms, the Aten 8-Port 19" Dual Rail LCD IP Cat5 KVM unites eight servers under a single, feature-rich console. With an integrated 19" LCD, secure IP-based remote access, and flexible Cat5 cabling, this compact KVM switch delivers efficient local control and versatile, scalable management for busy IT environments. The dual-rail design maximizes rack real estate while enabling seamless front- and rear-access for maintenance, ensuring you can manage servers quickly without compromising space or security.

• Consolidated control for up to eight servers from one console, enabling rapid cross-server management, streamlined maintenance windows, and increased operator efficiency. Switch between servers with intuitive hotkeys or the on-screen display, and perform BIOS-level tasks without juggling multiple keyboards and mice.
• Integrated 19" LCD display provides immediate on-site visibility into server status, boot messages, and video output. The built-in panel eliminates the need for a separate monitor in many rack setups, reducing clutter and simplifying situational awareness during routine maintenance and troubleshooting.
• Secure IP-based remote access lets administrators manage servers from anywhere on the network. Centralize control for data center operations, remote offices, or disaster recovery sites with authenticated sessions and convenient, browser- or OS-assisted interaction from remote workstations.
• Flexible Cat5 connectivity supports easy deployment across dense racks and long cable runs. By leveraging standard Cat5/Cat5e/Cat6 copper cabling, you gain installation flexibility, lower cabling costs, and reliable signal integrity for KVM over IP operations.
• Rugged, rack-mountable 19" chassis with a dual-rail design facilitates straightforward installation and ongoing maintenance in active IT environments. The dual-rail configuration allows front- and rear-access, simplifying serviceability without interrupting critical systems.

Technical Details of Aten 8-Port 19 Dual Rail LCD IP Cat5 KVM

• Ports: 8-port KVM switch that consolidates control of up to eight servers from a single console
• LCD: Integrated 19" LCD panel for on-site monitoring and quick server diagnostics
• Management: IP-based remote management for secure, remote server control across LANs and WANs
• Cabling: Cat5/Cat5e/Cat6 compatible for flexible deployment and simplified cabling
• Chassis: 19" rack-mountable with dual-rail support to maximize rack density and accessibility
• Power: Global power compatibility with standard AC input for data-center environments
• Security: Built-in access controls for local and remote sessions to help safeguard critical IT assets
• Video: Local LCD display delivers direct video output from selected servers for quick verification
• Installation: Designed for straightforward rack mounting and integration into existing IT infrastructure
• SKU/UPC: Not provided in product details; reference documentation or vendor portal may list exact identifiers

how to install Aten 8-port 19 Dual Rail LCD IP Cat5 KVM

Follow these steps to install the Aten 8-port 19" Dual Rail LCD IP Cat5 KVM in your data center:

1) Prepare the rack and rails: Ensure you have a standard 19" rack with a compatible dual-rail kit. Attach the KVM unit to the rack using the supplied rails and mounting hardware, securing it firmly to prevent vibration or movement in busy environments.

2) Mount and align servers: Plan port-to-server mapping to simplify operation. Position the eight servers in adjacent rack spaces, ensuring orderly alignment with the KVM ports. This makes it easy to reference port numbers during maintenance or troubleshooting.

3) Connect servers to the KVM: Use the appropriate KVM cables to connect each server’s keyboard, video, and mouse signals to the corresponding ports on the Aten unit. Verify cable integrity and seating to prevent intermittent connections.

4) Establish network and power: Connect the KVM’s management Ethernet port to your network switch or management VLAN. Plug in the power supply and power on the unit. Confirm that the LCD powers up and the console is ready for configuration.

5) Configure IP and access: Access the on-screen display (OSD) or the web-based management interface to configure the IP address, user accounts, and access permissions. Set up role-based access as needed and define which administrators can remotely connect to specific ports or groups of servers.

6) Verify functionality: Test both local and remote access by switching the console focus among the eight servers. Confirm that video, keyboard, and mouse inputs are correctly routed for each port. Validate remote connections by initiating an IP login from a management workstation and performing a basic server operation to ensure reliability.

7) Document and secure: Record port assignments, IP addresses, user roles, and security policies in your IT documentation. Establish routine maintenance procedures, including firmware updates, password changes, and regular checks of the LCD display for readability and responsiveness.

8) Routine maintenance and optimization: Periodically review access logs, verify that firmware is up to date, and adjust power-management settings to optimize energy usage in the data center. Maintain cabling hygiene to prevent accidental unplugging or signal interference in high-density racks.

Frequently asked questions

• Q: How many servers can the Aten 8-Port 19" Dual Rail LCD IP Cat5 KVM manage?
  A: It supports control of up to eight servers from a single console.
• Q: Does this KVM support remote management via IP?
  A: Yes. The unit provides IP-based remote access to manage servers from networked workstations or remote locations.
• Q: Is the built-in LCD sufficient for on-site diagnostics?
  A: The integrated 19" LCD offers direct visibility for quick status checks and local operations without needing an external monitor.
• Q: What cabling is recommended?
  A: Flexible Cat5/Cat5e/Cat6 copper cabling is recommended for KVM over IP connections and console communication, depending on your setup and distance requirements.
• Q: Is the unit rack-mountable in standard 19" racks?
  A: Yes. The unit is designed for standard 19" racks with dual-rail installation to facilitate front- and rear-access during maintenance.
