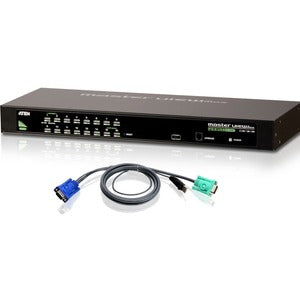

Aten CS1316KIT KVM Switch
Designed for busy data centers, server rooms, and IT environments where efficiency and scalability matter, the Aten CS1316KIT KVM Switch provides centralized control of up to 16 computers from a single, space-saving console. This 1U rack-mountable solution supports USB- and PS/2-based keyboards and mice, and its cascade capability lets you expand to 128 computers by layering two switches. With 16 SPHD-15 connections for keyboard, video, and mouse, it delivers reliable cross-platform performance across Windows 2000/XP and compatibility with diverse operating systems, making it an essential tool for administrators who demand speed, reliability, and flexibility in their KVM setup.
- 16-port single-console KVM switch that consolidates control of 16 computers from one keyboard, video, and mouse setup, dramatically reducing desk and rack clutter while speeding up access during maintenance, debugging, and deployment tasks.
- Cascade capability up to two levels, enabling management of up to 128 computers from a single GUI or physical console, which is ideal for growing data centers, lab environments, or multi-server farms.
- Dual interface support for the console and client machines—works with both USB and PS/2 keyboards and mice—providing seamless compatibility with modern USB devices and legacy PS/2 peripherals alike.
- Multiplatform compatibility, including Windows 2000 and Windows XP, ensuring broad OS support for mixed environments and mixed hardware configurations without requiring separate adapters or complicated software.
- 1U rack-mountable chassis with SPHD-15 keyboard/video/mouse connections, designed for professional installation in standard 19" racks and optimized for efficient cable management and cooling in dense rack layouts.
Technical Details of Aten CS1316KIT KVM Switch
- Port configuration: 16 computer ports with SPHD-15 connectors for keyboard, video, and mouse
- Console interface: USB-PS/2 compatible, allowing use of either USB or PS/2 keyboards and mice
- Cascade capability: Up to two levels, enabling control of up to 128 computers from a single management point
- Form factor: 1U rack-mountable chassis for easy integration into standard 19" racks
- Operating system compatibility: Multiplatform support including Windows 2000/XP and interoperability with mixed USB/PS/2 peripherals
- Installation type: Desktop or rack-mounted KVM switch kit designed for centralized, scalable server management
How to install Aten CS1316KIT KVM Switch
- Choose a suitable location in your rack and mount the CS1316KIT in a standard 19" rack using the provided mounting hardware or rails, ensuring adequate clearance for airflow and cabling behind the unit.
- Connect each of the 16 target computers to the corresponding SPHD-15 KVM ports on the switch using appropriate KVM cables; route cables neatly to maintain airflow and reduce strain on connectors.
- Connect your local console devices—keyboard, mouse, and monitor—to the designated console ports on the CS1316KIT, selecting USB or PS/2 connections depending on your peripherals.
- If you need to scale beyond 16 computers, implement cascade connections to a second CS1316KIT or compatible device following the manufacturer’s cascade guidelines; keep cable lengths within recommended limits to ensure reliable signal integrity.
- Power on the system and verify that each connected computer can be selected from the console; configure hotkeys or any available on-screen display options to facilitate quick switching between machines.
Frequently asked questions
- Q: Does the CS1316KIT support USB and PS/2 keyboards/mice on the console?
- A: Yes. The switch features a dual-interface console that accommodates both USB and PS/2 peripherals for keyboards and mice, ensuring compatibility with a wide range of devices.
- Q: How many computers can I control with this device?
- A: The base unit controls 16 computers. With cascading up to two levels, you can manage up to 128 computers from a single console.
- Q: Can I cascade this KVM switch to expand beyond 16 ports?
- A: Yes. You can cascade up to two levels to reach a total of 128 computers, making it suitable for mid-size data centers or labs with growing requirements.
- Q: What operating systems are supported?
- A: The CS1316KIT offers multiplatform compatibility, including Windows 2000 and Windows XP, allowing mixed operating system environments to share a single KVM console.
- Q: Is the unit rack-mountable?
- A: Yes. It is designed as a 1U rack-mountable device, ideal for professional server rooms and equipment racks with standard 19" widths.
