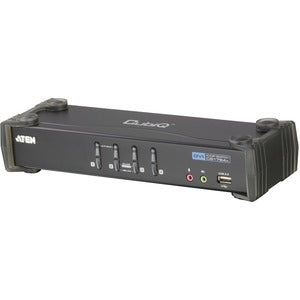

ATEN CS1764A KVM Switch

Experience streamlined multi‑system control with the ATEN CS1764A KVM Switch. This innovative device combines a 4‑port KVM switch with a 2‑port USB 2.0 hub while providing a dedicated interface for a DVI digital monitor. Built for efficiency and reliability, the CS1764A lets you manage up to four computers from a single keyboard, mouse, and high‑definition display, helping you reduce desk clutter and simplify workflows in IT labs, data centers, control rooms, and developer workstations.

• 4‑Port KVM Switching with Integrated USB 2.0 Hub: Seamlessly control up to four computers from one keyboard, one mouse, and a single DVI monitor, while sharing USB peripherals like flash drives, printers, and other devices via the built‑in hub.
• Digital Video Versatility: Connect a DVI digital monitor for crisp, high‑quality video output across all connected hosts, delivering sharp text, vibrant graphics, and smooth video playback for multitasking environments.
• Flexible, User‑Friendly Switching: Switch between connected hosts using front‑panel push buttons, keyboard hotkeys, or on‑screen display, enabling fast, hands‑free control without leaving your seat.
• Broad Compatibility with EDID Emulation: Designed to work with a wide range of USB keyboards and mice, the CS1764A also emulates display timing to ensure stable video output when switching between hosts and monitors.
• Compact Reliability and Easy Deployment: A space‑saving enclosure, straightforward cabling, and durable construction make the CS1764A ideal for clutter‑free workstations, server rooms, and shared‑desk setups with minimal setup effort.

Technical Details of ATEN CS1764A KVM Switch

• Ports and connectivity: 4 computer inputs with integrated USB 2.0 hub support (2 ports) for shared peripherals
• Video interface: DVI‑D digital video output for each connected host, enabling high‑definition display quality
• Keyboard and mouse: USB keyboard and USB mouse support for all connected computers
• Switching methods: Front‑panel push buttons, keyboard hotkeys, and optional on‑screen display for convenient control
• Video stability features: EDID emulation to preserve display timing and prevent flicker or resolution changes during switching
• Power and reliability: Standard power input for stable operation and consistent performance
• Form factor: Compact, desktop‑friendly enclosure designed for easy installation and integration into existing desks or racks
• Compliance and safety: Built to industry standards for safety and reliability in professional environments

How to install ATEN CS1764A KVM Switch

Setting up the CS1764A is a straightforward process designed to minimize downtime and maximize compatibility with your existing peripherals. Follow these steps to establish a clean, reliable multi‑computer workstation:

• Power down all connected devices before wiring to prevent electrical surges and ensure a safe setup.
• Connect each of your four computers to the CS1764A using the supplied KVM cables or the standard KVM cable kit. These connections provide the video (DVI), keyboard, and mouse signals to the switch from each host.
• Attach your DVI monitor to the CS1764A’s video output, ensuring the monitor is powered on and set to the correct input source for the switch’s output.
• Plug a USB keyboard and USB mouse into the CS1764A or connect them through the integrated USB 2.0 hub if you prefer sharing peripherals across hosts.
• Connect any USB devices you want to share (such as flash drives or printers) to the CS1764A’s built‑in USB 2.0 hub ports.
• Plug the CS1764A into its power supply and turn on the device, followed by the connected computers. If you use hotkeys or the on‑screen display, configure them per your preference.
• Test switching by selecting each computer in turn through the front panel, hotkey sequences, or the on‑screen display. Verify that the keyboard, mouse, monitor, and USB devices respond correctly on each host.
• Optionally enable EDID emulation if your setup includes displays with variable or non‑standard timing, ensuring consistent display output across hosts.

Frequently asked questions

• What does the ATEN CS1764A KVM Switch do? It lets you control four computers from a single keyboard, mouse, and DVI monitor while sharing USB 2.0 peripherals through an integrated hub, simplifying multi‑host management.
• Which video interface does it use? The CS1764A uses a DVI‑D digital video interface, enabling high‑quality, digital display output for modern monitors.
• How do I switch between computers? You can switch using the front‑panel push buttons, keyboard hotkeys, or the on‑screen display for quick and flexible control.
• Can I share USB devices between hosts? Yes. The built‑in USB 2.0 hub provides shared access to peripherals like USB drives and printers across connected computers.
• Is EDID emulation supported? Yes. EDID emulation helps maintain stable display output when switching between hosts, reducing the risk of monitor detection issues.
