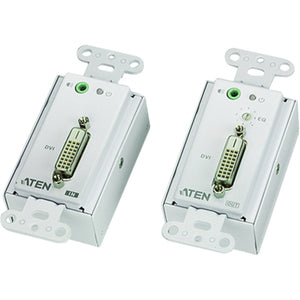

ATEN DVI Over Cat5 Extender Wall Plate – VE606, TAA Compliant

Elevate your video distribution with the ATEN VE606 DVI Over Cat5 Extender Wall Plate. This compact, TAA-compliant solution delivers high-definition DVI video and audio over standard Cat5e/Cat6 cabling, extending signals up to 60 meters to fit classrooms, conference rooms, home theaters, and professional installations. Designed for clean, professional installations, the VE606 wall plate integrates two essential AV endpoints into a single, elegant wall-mounted module, making it easier to route signals without sacrificing video quality or reliability. Whether you’re upgrading a single display or building a multi-point system, this extender is engineered to maintain image clarity and audio integrity over long runs, while supporting wide-screen formats that today’s media players demand.

• Extends DVI video and audio signals up to 60 meters (196 feet) over standard Cat5e/Cat6 cable, enabling flexible, long-distance placements without sacrificing image or sound quality.
• Wall-plate form factor for clean, professional installations in classrooms, meeting rooms, auditoriums, and home theaters. Built to fit standard double-gang backboxes for a seamless, low-profile look.
• Supports widely used wide-screen formats and high-definition resolutions, including DVI-D single-link up to 1920x1200 and 1080p, ensuring sharp, vibrant visuals with accurate color reproduction across the entire viewing area.
• VE606 compatibility allows cascading or pairing with additional extenders to extend distance further or multiply sources and displays, providing scalable options for growing AV environments.
• TAA compliant, making it ideal for government procurement, education, and enterprise deployments where compliance and reliability are essential.

Technical Details of ATEN DVI Over Cat5 Extender Wall Plate

• Product family/model: VE606 DVI Over Cat5 Extender Wall Plate (DVI-D, audio support) – wall plate version for integrated AV routing
• Distance extension: Up to 60 meters (196 feet) over Cat5e/Cat6 twisted-pair cable
• Video support: DVI-D single-link, compatible with resolutions up to 1920x1200 and 1080p
• Audio support: Dedicated/embedded audio signals carried alongside video where available
• Cable requirements: Standard Cat5e or Cat6 twisted-pair network cable for the DVI and audio paths
• Form factor: Wall-plate design that blends into standard wall cavities and backboxes for a tidy installation
• Scalability: Can be used in a VE606 configuration to extend distance or multiply sources/displays for multi-room or multi-display setups
• Compliance: TAA compliant, suitable for procurement in regulated environments

How to install ATEN DVI Over Cat5 Extender Wall Plate

• Prepare the installation site by selecting two compatible wall boxes (one for the source side and one for the display side) and ensuring power and cable pathways comply with local electrical codes.
• Mount the VE606 wall plates at the source and display locations. Secure the plates in the wall boxes to ensure a solid, flush fit.
• Connect the DVI output from your source device (such as a computer or media player) to the DVI input on the VE606 wall plate at the source location using a standard DVI cable.
• Run a Cat5e or Cat6 cable between the two wall plates, keeping runs clear of interference and avoiding long parallel runs with power lines to minimize noise and signal loss.
• At the display end, connect the DVI input of your monitor or projector to the DVI output on the VE606 wall plate and connect any required audio devices if you’re using audio-enabled DVI paths. Power up the source and display devices and verify signal integrity.

Frequently asked questions

• Q: What is the VE606 DVI Over Cat5 Extender Wall Plate?
  A: The VE606 is ATEN’s wall-plate extender that transmits DVI video and audio over Cat5e/Cat6 cable, enabling long-distance connections up to 60 meters with support for common wide-screen resolutions. It is designed for clean, in-wall installation and can be combined with other VE606 units for expanded configurations.
• Q: How far can I extend the signal?
  A: The VE606 supports up to 60 meters (196 feet) over Cat5e/Cat6 cable, making it suitable for classroom stages, boardrooms, and large home theater layouts where video routing needs to reach distant displays.
• Q: What resolutions are supported?
  A: The extender supports DVI-D single-link resolutions up to 1920x1200 and 1080p, which covers the majority of modern display formats used in educational, corporate, and consumer environments.
• Q: Does it carry audio?
  A: Yes, the VE606 extension can carry audio along with the DVI video signal, enabling synchronized audio playback at the far end when connected to compatible displays or audio devices.
• Q: Can I expand beyond a single pair?
  A: Yes. The VE606 can be combined with additional VE606 units to extend distances further or to multiply sources and displays, offering scalable multi-point distribution for larger AV installations.
• Q: Is the VE606 compliant with government procurement?
  A: Yes, it is TAA compliant, aligning with procurement requirements for many government and enterprise projects.
