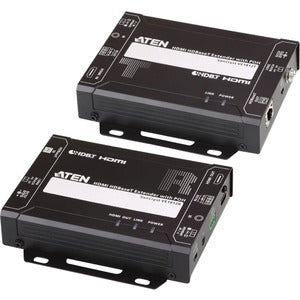

ATEN VE1812 HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A) - TAA Compliant

The VE1812 HDMI HDBaseT Extender with POH is the premier solution for distributing high-definition HDMI signals across remote locations with a single Cat 5e/6/6a cable. Engineered for reliability in professional environments such as corporate boardrooms, classrooms, entertainment venues, and digital signage, this extender delivers pristine video and flexible control options over long distances. With support for up to 4K at 100 meters and a Long Reach Mode that extends HDMI transmission to 150 meters at 1080p, the VE1812 is built to handle demanding AV installations while minimizing cable clutter and power requirements. Its Power over HDBaseT (POH) capability powers the remote receiver, reducing the need for extra power adapters at the display end, and the inclusion of RS-232 and IR pass-through enables seamless integration with existing control systems. The VE1812 is compliant with HDBaseT Class A specifications and is TA A (Trade Agreement Act) compliant, making it a dependable choice for both commercial and regulated environments.

• Delivers 4K video at up to 100 meters over a single Cat5e/6/6a cable, preserving HDMI quality and enabling high-resolution displays across large rooms or linked venues.
• Long Reach Mode expands transmission to 150 meters when operating at 1080p, providing extra flexibility for installations with substantial distances between source and display.
• Power over HDBaseT (POH) powers the remote receiver, reducing the need for an additional local power supply at the display end and simplifying installation.
• RS-232 and IR signaling pass-through offer comprehensive remote control and system integration, enabling centralized control of displays, projectors, and other AV gear from a single location.
• HDBaseT Class A design with TA A compliance ensures robust performance, reliability in professional settings, and compatibility with a wide range of professional AV equipment.

Technical Details of ATEN VE1812

• HDBaseT Extender with POH supporting HDMI, 4K video up to 100 meters over Cat5e/6/6a
• Long Reach Mode enables extending HDMI to 150 meters at 1080p
• Power over HDBaseT (POH) powers the remote receiver to simplify installation
• RS-232 and IR pass-through for integrated control of connected devices
• HDBaseT Class A design with TA A compliance for reliability and regulatory compatibility

How to Install ATEN VE1812

Installing the VE1812 is straightforward and designed to minimize downtime during setup. Follow these steps to deploy a clean, high-performance AV link between your source and display.

• Mount or place the transmitter (TX) unit near the HDMI source and connect the HDMI output from the source device to the TX HDMI input. Use a high-quality HDMI cable to ensure signal integrity for 4K content.
• Connect the VE1812 receiver (RX) unit near the display. Attach the RX HDMI output to the display’s HDMI input with another reliable HDMI cable.
• Run a single Cat5e/6/6a cable between the TX and RX units. This single cable carries video, audio, control signals, and (where supported) POH power to the remote unit.
• If you are using POH, ensure the TX unit is powered according to product instructions and verify that the RX unit is powered through the POH link. If you are not using POH, connect the RX unit to its power adapter as supplied.
• Power on all devices and select the appropriate input on the display. If needed, enable Long Reach Mode on the TX unit to maximize distance for 1080p content. Use the RS-232 or IR passthrough as required to integrate with control systems.

Frequently asked questions

• What is the ATEN VE1812? The VE1812 is an HDMI HDBaseT extender with POH designed to extend HDMI signals over a single Cat5e/6/6a cable up to 100 meters for 4K content, with Long Reach Mode for 150 meters at 1080p, plus RS-232 and IR pass-through for comprehensive AV control.
• What does POH stand for? POH stands for Power over HDBaseT. It powers the remote receiver over the HDBaseT cable, reducing the need for an external power supply at the display end and simplifying installations.
• Can I use this extender for 4K content? Yes. The VE1812 supports 4K video up to 100 meters over a single Cat5e/6/6a cable, making it suitable for high-resolution displays in large rooms or venues.
• What distances can I reach with Long Reach Mode? In Long Reach Mode, you can extend HDMI to up to 150 meters at 1080p, providing added flexibility for longer installations while maintaining reliable signal quality.
• Which cables are recommended? Use standard Cat5e, Cat6, or Cat6a Ethernet cables of good quality. Ensure the cable length and routing comply with local building and safety codes to maintain signal integrity.
• Is the VE1812 compliant with regulatory standards? Yes. The VE1812 is HDBaseT Class A compliant and is TA A (Trade Agreement Act) compliant, making it suitable for professional and regulated environments.
• Does it support control integration? Yes. The VE1812 includes RS-232 and IR pass-through, enabling centralized control of connected displays and other AV devices from a single control system or processor.
