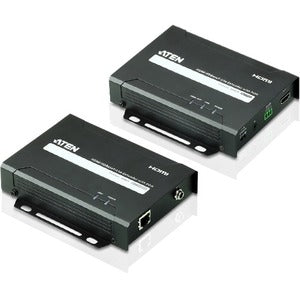

ATEN VE802 HDMI HDBaseT-Lite Extender with POH (4K@40m) – HDBaseT Class B, TAA Compliant

The ATEN VE802 HDMI HDBaseT-Lite Extender with POH is a reliable, professional-grade solution for distributing high-definition video and control signals over a single Cat 5e/6/6a cable. Built to meet the needs of corporate AV, education, hospitality, and critical government environments, this extender leverages HDBaseT-Lite technology to deliver pristine 4K video (up to 4K@40m) and full HD signals (up to longer distances) while simplifying installation. The VE802 system includes both a transmitter and receiver (VE802R) that work together to extend HDMI, along with RS-232 and IR passthrough, so you can control the source from the display location. Power over HDBaseT (PoH) further streamlines installations by enabling power delivery to the remote unit over the same Cat cable, reducing cable clutter and the need for multiple power supplies. With HDBaseT Class B compatibility and TAA compliance, the VE802 is a compact, enterprise-ready solution designed for durable performance in demanding environments.

• Extends HDMI signals over a single Cat5e/6/6a cable to long distances, making it feasible to place video sources in equipment rooms, lecture halls, or meeting spaces while locating displays in optimized viewing areas. The VE802 family uses HDBaseT-Lite to deliver reliable video, audio, and control signals with minimal latency and high signal integrity.
• Supports 4K video at up to 40 meters and 1080p/HD content at even greater distances, ensuring sharp, vibrant imagery with HDR-capable color reproduction where applicable. This makes the VE802 a versatile choice for modern digital signage, conference rooms, and classrooms that require high-resolution presentation without the need for multiple cables or complex wiring schemes.
• RS-232 and IR passthrough capabilities enable seamless, centralized control of the HDMI source from the remote VE802R location. This is ideal for environments where technicians need to power, switch, or configure the source device remotely, with compatible control signals traversing the HDBaseT link intact.
• Power over HDBaseT (PoH) support powers the remote VE802R over the same Ethernet cable used for video and control signals. PoH reduces the need for an extra AC outlet at the display side, simplifies installation, and keeps installation footprints clean and unobtrusive.
• Compact, durable design that is HDBaseT Class B compliant and TAA (Trade Agreements Act) compliant, making it suitable for government procurement, corporate deployments, and venues with strict sourcing requirements. The VE802 series is designed for rack-mount or shelf installation, delivering professional performance in a space-efficient package.

Technical Details of ATEN VE802 HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B) - TAA Compliant

• HDBaseT-Lite technology with Class B profile for efficient, cost-effective distribution of AV signals over a single Cat5e/6/6a cable
• Video resolution support: up to 4K (3840×2160) at 40 meters; 1080p at longer distances, optimized for reliable performance across typical AV installations
• Transmission distance: up to 70 meters for standard HD signals (depending on resolution and cable quality); up to 40 meters for 4K signals with HDBaseT-Lite limitations
• Interfaces: HDMI input on the transmitter, HDMI output on the receiver, HDBaseT channels for video/audio, RS-232 passthrough, and IR passthrough for source control
• Power delivery: Power over HDBaseT (PoH) available to the remote VE802R; local power adapters recommended for the transmitter and/or remote unit as required by installation
• Remote control: RS-232 and IR pass-through enable centralized control of the HDMI source from the VE802R location
• Compliance: HDBaseT Class B; TAA compliant for government and enterprise procurement
• Supported environments: ideal for conference rooms, classrooms, digital signage, and hospitality installations requiring clean cable management and reliable long-distance HDMI distribution

How to install ATEN VE802 HDMI HDBaseT-Lite Extender with POH

Installing the VE802 is designed to be straightforward and fast, with minimal configuration required. Follow these steps to achieve a clean, reliable installation:

• Plan the layout: decide which room will house the HDMI source and which room will host the display. Determine the most convenient path for the Cat5e/6/6a cable, ensuring it is within the supported distance range for the chosen resolution.
• Connect the transmitter: connect your HDMI source (such as a Blu-ray player, laptop, or media player) to the HDMI input on the VE802 transmitter. If your installation uses PoH, verify that the transmitter is connected to a suitable power source or relies on PoH as configured.
• Run the network cable: use a high-quality Cat5e/6/6a cable to connect the VE802 transmitter to the VE802R receiver. Keep runs free from excessive bends or interference sources, and avoid running parallel to power cables where possible to minimize noise.
• Connect the receiver to the display: attach an HDMI cable from the VE802R HDMI output to the display or projector input. If the remote unit will be powered via PoH, ensure the cable supports power transfer or connect the unit to an appropriate power source if PoH is not utilized.
• Power and verify: power on both units. If PoH is active, the VE802R should power from the transmitter through the HDBaseT link. If not, supply dedicated power adapters to both units as required. Use the control features (RS-232/IR) to verify that the display shows the source content correctly and that remote commands reach the source device.
• Test the video path and control signals: check the video quality, color accuracy, and sharpness at the display. Test IR passthrough by issuing a command from the VE802R to control the HDMI source, and verify RS-232 commands (such as device power or input switching) reach the source correctly.
• Troubleshoot and optimize: if you encounter signal dropouts or degraded video, re-check cable quality, shorten the link length if necessary, or reduce the resolution to maintain stable performance. Ensure firmware is up to date if updates are available from ATEN.

Frequently asked questions

• Q: What is the maximum distance for 4K video with the VE802? A: 4K video is supported up to 40 meters on HDBaseT-Lite, with longer distances possible at lower resolutions such as 1080p depending on cable quality and installation conditions.
• Q: Does the VE802 support RS-232 and IR passthrough? A: Yes. The VE802 extender supports both RS-232 and IR passthrough, enabling centralized control of the HDMI source from the remote VE802R location.
• Q: What about Power over HDBaseT (PoH)? A: The VE802 supports PoH, allowing the remote VE802R to be powered over the same Cat5e/6/6a cable, reducing power infrastructure requirements at the display end.
• Q: Is this product compliant with government procurement requirements? A: Yes. The VE802 is TAA compliant, making it suitable for government and enterprise procurement in applicable regions.
• Q: What type of cabling is recommended? A: Use high-quality Cat5e/6/6a cables designed for AV use. Shielded cables may be preferred in environments with electrical interference to preserve signal integrity.
