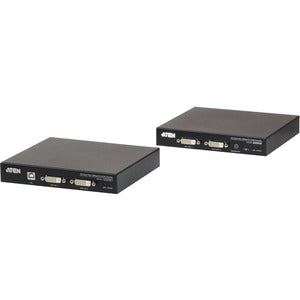

ATEN CE624 USB DVI Dual View HDBaseT 2.0 KVM Extender

The ATEN CE624 USB DVI Dual View HDBaseT 2.0 KVM Extender is engineered to simplify and accelerate data center and control-room operations by delivering trusted, high-fidelity KVM extension over a single Cat X cable. Designed for reliability in demanding environments, this extender transfers USB, DVI video, PCM stereo audio, and RS-232 signals from a local host to a remote console with exceptional clarity and responsiveness. Featuring HDBaseT 2.0 technology and support for DVI Dual View video, the CE624 enables seamless remote access, centralized management, and streamlined workstation layouts—ideal for control rooms, server rooms, broadcast environments, and digital signage applications. With a focus on performance, compatibility, and simplicity, ATEN’s CE624 empowers IT and AV teams to work smarter, not harder, by consolidating control across distance and reducing travel and downtime.

• Long-range, high-quality KVM extension: Transmit video, USB data, audio, and RS-232 over a single Cat X cable up to 100 meters, preserving image integrity and responsive control for mission-critical operations.
• DVI Dual View video: Delivers high-quality DVI Dual View output, enabling dual-monitor configurations to be controlled from a single local host while maintaining sharp, accurate imagery at 1920x1200 resolution.
• HDBaseT 2.0 reliability: Leverages the latest HDBaseT 2.0 technology for robust, low-latency transmissions with better EMI tolerance, ensuring stable performance in industrial and data-center environments.
• Comprehensive signal support: Provides PCM 2-channel digital audio and bidirectional USB paths for keyboard, mouse, and peripherals, plus RS-232 for device control and management, all through a single cable.
• Effortless deployment and compliance: Designed for easy integration with plug-and-play in mind, the CE624 is TAA compliant and suitable for government, education, and enterprise deployments, reducing installation time and total cost of ownership.

Technical Details of ATEN CE624

• Video: DVI Dual View video capable, designed to deliver crisp, detailed images on remote displays with up to 1920x1200 resolution at 100 meters.
• Transmission technology: HDBaseT 2.0 for reliable, long-distance extension of video, USB, audio, and RS-232 signals over a single Cat X cable.
• Distance: Up to 100 meters (328 feet) between local transmitter and remote receiver over Cat 6/6a/7 cabling.
• Audio: PCM 2-channel digital audio to preserve stereo quality for voice or media playback on the remote console.
• USB and peripherals: USB data channel supports keyboard, mouse, and select USB peripherals, enabling full control from the remote side.
• RS-232: RS-232 signal path for device control, management, or integration with serial peripherals at the remote end.
• Compliance: TAA compliant, suitable for government and enterprise environments.
• Product family: Extender pair consisting of a local transmitter and remote receiver to extend KVM across distances while maintaining performance.

how to install ATEN CE624

• Prepare the installation site: Place the local transmitter near the computer or source device and the remote receiver near the desired console(s). Ensure proper ventilation and a clean, organized cabling path.
• Connect video: Attach the computer or DVI source to the CE624 transmitter’s DVI input. Connect the CE624 remote receiver’s DVI outputs to the displays that will be used at the remote console(s).
• Route the cable: Run a single Cat X cable (Cat 5e/6/6a) between the transmitter and receiver, up to 100 meters. Avoid tightly coiled cables and EMI sources to maintain signal quality.
• Attach USB and peripherals: Connect USB peripherals (keyboard, mouse, and supported devices) to the transmitter end. The USB data path will be extended to the remote console via the same Cat X link.
• Integrate audio and RS-232: If needed, connect analog or digital audio devices to the appropriate ports and route RS-232 connections between local and remote units for device control.
• Power and testing: Apply power to both the transmitter and receiver units. Power stability is important for consistent performance, especially over longer cable runs. Turn on the computer and remote console, then verify video, USB functionality, and audio across the extension.
• Configuration and alignment: If your setup requires dual displays or specific webcam/USB device configurations, adjust the display properties on the remote console and confirm device responsiveness. Ensure the DVI Dual View setup matches your operating environment.

Frequently asked questions

• What is the maximum extension distance for the ATEN CE624? The CE624 supports up to 100 meters of extension distance over a Cat X cable, enabling full KVM control from a remote console while preserving video quality and input responsiveness.
• What video resolutions does the CE624 support? It delivers high-quality DVI Dual View video up to 1920x1200 resolution, ensuring sharp images for routine office tasks as well as graphic-intensive applications at the remote end.
• Which signals are extended by the CE624? The extender transmits DVI video, PCM 2-channel digital audio, USB data for HID devices and peripherals, and RS-232 for device control—through a single network cable.
• Is the CE624 compatible with other ATEN extenders or KVM products? The CE624 is designed as part of ATEN’s KVM extension ecosystem and is compatible with corresponding ATEN accessories and components within the same product family to create scalable, multi-user configurations.
• Is the CE624 compliant with government or enterprise procurement standards? Yes. The device is TAA compliant, making it suitable for procurement in governmental and enterprise environments requiring traceable, standards-aligned equipment.
• Do I need special drivers to use the CE624? The CE624 is designed for plug-and-play operation with typical operating systems; drivers are generally not required for basic KVM operation, though certain USB peripherals may require driver support on the host or remote side.
