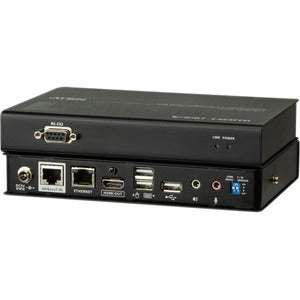

Aten USB HDMI HDBaseT2.0 KVM Extender

The Aten USB HDMI HDBaseT2.0 KVM Extender is a premium solution for professional environments that demand seamless control of a host computer from a distant console. Built around the high-bandwidth capabilities of HDBaseT 2.0, this extender delivers crystal-clear HDMI video, fast and reliable USB peripheral passthrough, and robust KVM functionality over a single CATx cable. Whether you’re outfitting a control room, data center rack, classroom, or industrial monitoring station, this device unifies your workstation’s display, input devices, and management console while reducing cable clutter and preserving signal integrity over long distances. Expect plug-and-play deployment, flexible mounting, and dependable performance that minimizes downtime and maximizes productivity in demanding environments.

• Long-distance KVM extension with HDBaseT 2.0 — Extend complete keyboard, video, and mouse control from the host computer to the remote console over a single category cable. Designed for enterprise-scale deployments, it supports accurate signal delivery over distances up to 100 meters (328 feet) on CAT6/CAT6A/CAT7 cables, preserving video quality, USB responsiveness, and control signals with minimal latency. This makes it ideal for data centers, control rooms, and large lecture halls where a direct cable run is impractical.
• Integrated USB, HDMI, and audio/video support — The extender consolidates USB 2.0 peripheral passthrough (keyboard, mouse, USB storage, and select HID devices) with HDMI video, and bidirectional audio so your remote console can interact with the host as if it were seated at the original workstation. The simplified, single-cable approach reduces installation complexity while maintaining high compatibility with a broad range of USB devices and display configurations.
• High-resolution video and broad compatibility — Engineered to handle demanding video requirements, the Aten extender supports high-resolution output up to 4K on compatible displays, with color fidelity and refresh rates designed to preserve detail for professional graphics, CAD, finance dashboards, and multi-monitor setups. It also supports multiple audio formats and HDCP-compliant content delivery, ensuring secure, standards-based playback across encoders and decoders.
• Reliability and ease of deployment — With a sturdy, professional-grade enclosure and plug-and-play operation, the extender minimizes setup time and troubleshooting. Features such as automatic EDID management and robust signal integrity checks help ensure consistent performance across varying host, display, and peripheral configurations. From a single location, administrators can deploy centralized KVM control without laddering power supplies to multiple endpoints.
• Flexible power and management options — The system supports flexible power configurations, enabling power delivery to one or both ends depending on the installation. This flexibility is valuable in rack-mounted or remote installations where power availability may be constrained. The KVM extender also supports practical management controls, including hot-plug detection, signal integrity monitoring, and straightforward troubleshooting to keep operations running smoothly.

Technical Details of Aten USB HDMI HDBaseT2.0 KVM Extender

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to install Aten USB HDMI HDBaseT2.0 KVM Extender

• Power down all devices before beginning the installation. Place the transmitter unit near the host computer and the receiver unit near the remote console. Ensure you have a CAT6/6A/7 patch cable on hand for the long-distance run.
• Connect the host computer’s HDMI output to the transmitter’s HDMI input and connect the transmitter’s USB ports to the host computer’s USB ports (keyboard/mouse) or to the local USB hub as required. Attach the remote console’s display to the receiver’s HDMI output and connect any USB devices you want to pass through to the receiver’s USB ports.
• Run a single CATx cable from the transmitter to the receiver. This cable carries the HDMI video, USB signals, audio, and control channels in a synchronized, streamlined fashion. If Power over HDBaseT (PoH) is supported by your hardware, enable PoH to simplify power distribution along the same cable.
• Power on the transmitter and receiver units. Allow the system to initialize and perform EDID negotiation. Verify that the remote console displays the host desktop correctly and that keyboard and mouse input is registered without noticeable latency. If necessary, adjust display resolution settings at the host or display to optimize clarity and performance.
• Test the full KVM workflow by opening applications on the host computer from the remote console. Confirm that USB devices, keyboard shortcuts, and video streams respond promptly and reliably. If you encounter signal degradation at longer runs, consider using higher-quality CAT cables or adding an EDID-compatible USB hub to stabilize compatibility between devices.

Frequently asked questions

• Q: What is the maximum distance supported by the Aten USB HDMI HDBaseT2.0 KVM Extender? A: The extender leverages HDBaseT 2.0 technology to deliver reliable KVM extension over a single CATx cable for distances up to approximately 100 meters (328 feet), depending on cable type and environmental factors. For installations requiring even greater reach, consult installation guidelines or consider repeaters or multi-link configurations as recommended by Aten.
• Q: Does this extender support 4K video? A: Yes. When connected to compatible sources and displays, the extender supports high-resolution HDMI video up to 4K (3840x2160) at 60 Hz, with color accuracy and deep color depth preserved through HDBaseT 2.0. Always verify your source and display capabilities to ensure the full 4K experience.
• Q: Can I pass USB peripherals through the extender? A: The device provides USB 2.0 peripheral passthrough suitable for keyboards, mice, and select HID devices. Some high-bandwidth USB peripherals may not perform optimally due to distance or cable quality. For critical peripherals, test compatibility with your specific devices in advance.
• Q: Is HDCP or DRM content protected when using this extender? A: The extender supports HDCP-compliant content delivery where the source and display both support HDCP, ensuring authorized playback of protected content. Ensure all connected devices are configured to enable HDCP as needed.
• Q: Do I need both power adapters plugged in? A: Power requirements depend on your installation and whether Power over HDBaseT (PoH) is available and enabled. Some setups operate with power supplied to both transmitter and receiver; others may only require power at one end if PoH is used. Always follow the included setup guidance for your model variant.
• Q: What kind of cabling is recommended? A: Use high-quality CAT6A or CAT7 cable for best performance, especially for 4K video at longer distances. Poor cable quality or damage can affect signal integrity, latency, and overall KVM responsiveness. Keep runs free from EMI sources where possible to maintain reliability.
