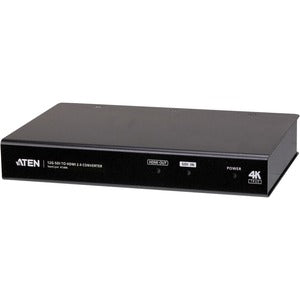

ATEN VC486 12G-SDI to HDMI Converter

The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, the converter works with ATEN VC486 Configuration Software, allowing users to configure the device's input, output, and audio settings with ease. The VC486 is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.

• Locking power connector
• Analog Audio channel selection with a 8-step rotary switch
• Supports analog stereo audio output with RCA (R/L) connector
• Automatic detection of input video signals
• Supported SDI formats: HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps), 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps), 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps), 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)
• Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m (3G-SDI) and 150 m (HD-SDI)
• Supports SDI standard SMPTE-292/424/425-3/2081/2082
• SDI signal re-clocked for high signal quality
• Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time
