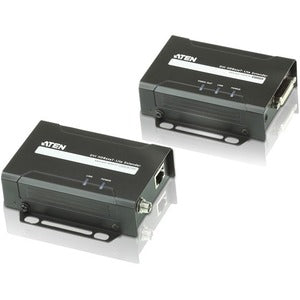

ATEN VE601 DVI HDBaseT-Lite Extender (HDBaseT Class B) - TAA Compliant

The VE601 DVI HDBaseT-Lite Extender is a compact, high-performance solution designed to extend DVI video signals over a single Ethernet cable, enabling clean, reliable distribution of crystal-clear displays across conference rooms, classrooms, and digital signage deployments. Built on HDBaseT-Lite Class B technology, this extender pair preserves image quality, minimizes cabling clutter, and offers a cost-effective path to long-distance DVI transmission. With its TAA compliant status, the VE601 line is well-suited for professional environments that require government-grade procurement compatibility, making it an ideal choice for corporate campuses, educational facilities, and hospitality venues seeking dependable AV distribution. Whether you’re installing a single presentation screen or a multi-zone display network, the VE601 delivers consistent performance with simple, plug-and-play setup and robust compatibility with standard DVI-D sources and displays.

• Extend DVI video up to 70 meters (approximately 230 feet) at 1080p over a single Cat5e/6 Ethernet cable, reducing the need for bulky long-run HDMI or DVI cables and simplifying room design.
• Support for higher resolutions: transmit 1920x1200 content up to 40 meters, enabling accurate, high-detail images for near-professional displays in classrooms, control rooms, and meeting spaces.
• HDBaseT-Lite Class B technology delivers the benefits of long-reach AV distribution with a streamlined, cost-efficient approach, combining solid video performance with straightforward installation and minimal system complexity.
• Plug-and-play usability with automatic source-to-display negotiation and EDID handling, ensuring compatibility with a wide range of DVI-D sources and displays without extensive configuration.
• Durable, two-unit design (transmitter and receiver) that fits easily into most AV rack setups, with reliable signaling across standard Ethernet infrastructure and compatibility with existing IT networks for simple integration.

Technical Details of ATEN VE601 DVI HDBaseT-Lite Extender

• Technology: HDBaseT-Lite Class B extends DVI-D video over a single Cat5e/6 cable, delivering long-distance video transmission with reduced cabling complexity.
• Video Interface: DVI-D signaling supported between the transmitter (TX) and receiver (RX); designed for uncompressed digital video from a DVI source to a DVI display.
• Distance and Resolution: Up to 70 meters for 1080p video; up to 40 meters for 1920x1200; supports high-detail images while preserving color fidelity and sharpness.
• Video Quality: Maintains uncompressed digital video with reliable signal integrity over standard Ethernet cabling, ideal for meeting rooms, classrooms, and displays requiring precise imaging.
• HDBaseT Class B Profile: A cost-effective extension format that provides dependable, school- and office-friendly performance without the need for a full HDBaseT-Lite feature set.
• Compatibility: Works with DVI-D sources and displays, making it suitable for legacy AV setups that rely on DVI connections rather than HDMI.
• Power and Installation: External power supplies are required for proper operation of the TX and RX units, enabling stable performance across the extended link and easy field deployment.
• Compliance: TAA compliant, suitable for procurement in government and enterprise environments seeking standard-compliant AV hardware.
• Mounting and Form Factor: Compact transmitter and receiver units designed for rack-mount or shelf installation, minimizing space requirements in AV closets and control rooms.

How to install ATEN VE601 DVI HDBaseT-Lite Extender

• Power up: Connect external power supplies to both the transmitter (TX) and receiver (RX) units to ensure stable operation across the extended link.
• Source connection: Attach a DVI-D video source (such as a computer, media player, or other DVI-enabled device) to the TX unit using a standard DVI-D cable.
• Display connection: Connect the RX unit to your DVI display using another DVI-D cable, ensuring the display is set to the correct input source.
• Link the pair: Run a single Cat5e/6 cable between the TX and RX units to carry the DVI video signal via the HDBaseT-Lite link. Ensure the cable is securely seated in both units’ RJ-45 ports.
• Power on and test: Power on both ends, verify that the display shows the source signal, and confirm color accuracy and image sharpness. If needed, adjust EDID-related settings on the source or display to optimize compatibility.
• Optimization: If your installation requires specific color timing or non-standard resolutions, perform a brief test with different display presets to ensure the best possible picture quality across the extended link.

Frequently asked questions

• What video resolutions does the VE601 support over HDBaseT-Lite?
• What is the maximum distance for 1080p and for 1920x1200 using VE601?
• Are audio signals transmitted when using VE601 with DVI sources?
• Does VE601 require power on both the transmitter and receiver units?
• Is VE601 compatible with non-ATEN devices and standard DVI sources/displays?

Note: VE601 is designed specifically for DVI-D signals, which means it handles digital video without audio. If your application requires audio transmission, you would typically pair VE601 with a separate audio solution or use a different extender that supports audio along with video. The device’s EDID management helps maintain display compatibility and reduces mismatches that can cause blank screens or incorrect resolutions, making it easier to deploy in multi-display environments where sources and displays vary in capability.

In every deployment scenario, the VE601 stands out for its balance of distance capability and high-resolution support without requiring a heavy investment in more complex HDBaseT ecosystems. The use of standard Ethernet cabling keeps installation affordable and scalable, letting IT teams extend video to multiple rooms or zones with minimal cabling effort. The HDBaseT-Lite Class B profile ensures reliable delivery for typical corporate, educational, and small-to-medium-sized venue installations while remaining accessible for installers and technicians who need straightforward setup and maintenance.

The VE601 family also aligns with modern building standards and AV integration practices. Its compact form factor makes it easy to integrate into equipment racks, under tables, or behind displays, reducing clutter and preserving room aesthetics. The kit’s two-unit design—transmitter and receiver—provides a clear, point-to-point path for signal distribution while keeping each end easily serviceable should maintenance be required. The TAA-compliant status adds a layer of procurement confidence for organizations bound by regulatory sourcing guidelines, ensuring compatibility with public sector purchasing programs and reputable vendors.

Performance-wise, the VE601 delivers crisp video with dependable latency characteristics suitable for real-time display in presentations, lecture halls, and control rooms. The technology behind HDBaseT-Lite provides robust signal integrity, making it less susceptible to typical installation challenges such as moderate cable length, interference, and environmental conditions typical of AV rooms. This makes VE601 a practical choice for retrofits where existing CAT5e/6 runs can be re-purposed to carry DVI video without upgrading to more expensive fiber-based or HDMI-based solutions.

When selecting an HDBaseT extender solution, considerations include distance, display resolution, source capabilities, and the need for future scalability. VE601’s design prioritizes straightforward installation, predictable performance, and compatibility with standard DVI-D devices. It’s an ideal match for classrooms outfitting a single teacher station, conference rooms with a central AV rack feeding multiple displays, or signage installations that require a dependable long-distance DVI link without the overhead of full HDMI-based HDBaseT systems. The combination of DVI-D fidelity, 70-meter reach at 1080p, and 40-meter reach at 1920x1200 ensures versatility across a range of content types—from high-contrast presentations to detailed graphics—while maintaining reliable color and sharpness across the extended link.
