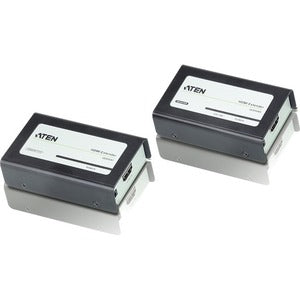

ATEN VE800A HDMI Extender: Extend HDMI Up to 60m Over Cat5e

The ATEN VE800A HDMI Extender is a high-performance solution designed to liberate you from short HDMI cable runs. By transmitting A/V signals over a single Cat5e cable, VE800A lets you place your HDMI source far away from the display—up to 60 meters away—without sacrificing image quality or audio fidelity. This makes it ideal for modern classrooms, corporate boardrooms, digital signage installations, auditoriums, and home entertainment setups where clean, reliable HDMI transmission is crucial. The device supports EDID management through a DDC port, enabling the display’s native resolution and color settings to be negotiated accurately, so you enjoy a plug-and-play experience with minimal configuration. Built with a focus on simplicity, compatibility, and dependable operation, VE800A delivers a scalable solution for expanding HDMI reach in both commercial and residential environments.

• Long-range HDMI extension: Transmits high-definition video and audio up to 60 meters via a single Cat5e cable, enabling flexible placement of source devices and displays without signal loss.
• HDMI quality and compatibility: Supports HDMI video up to 1080p at 60Hz and multi-channel audio formats, with HDCP compliance to safeguard premium content.
• EDID and DDC support: A dedicated DDC/EDID interface ensures the display’s native resolution and color depth are correctly negotiated, reducing misinterpretation and image flicker.
• Plug-and-play installation: Designed for quick setup with no software required—connect the transmitter to the HDMI source, run a Cat5e cable to the receiver, attach the HDMI display, and power both units.
• Versatile deployment: Ideal for classrooms, meeting rooms, retail signage, home theaters, and other AV environments where reliable long-distance HDMI delivery is essential.

Technical Details of VE800A

• Distance: Up to 60 m (196 ft) over a single Cat5e cable, enabling flexible placement of equipment.
• Video: HDMI support with compatibility for up to 1080p at 60 Hz; optimized for clear, sharp images on large displays.
• Audio: Multi-channel digital audio transmitted via HDMI, ensuring immersive sound alongside video.
• HDCP: HDCP-compliant to protect copyrighted content and maintain compatibility with a wide range of devices.
• Interfaces: HDMI input on the transmitter, HDMI output on the receiver; DDC/EDID port available for display EDID management.
• Power: External power requirement for both transmitter and receiver to ensure stable operation across long runs.
• Connectors: HDMI Type A on both ends; RJ45 connectors for Cat5e cable linking transmitter and receiver.
• Form factor: Compact, appliance-style units designed for desktop or rack-style installation with minimal footprint.
• Compliance: Built to meet typical safety and environmental standards for professional AV devices.

How to install VE800A

• Plan your layout: Position the HDMI source close to the VE800A Transmitter and the display near the VE800A Receiver. Ensure there is a clean path for the Cat5e cable between units.
• Connect the source: Attach your HDMI source (Blu-ray player, media streamer, computer, or media player) to the VE800A Transmitter’s HDMI input using a standard HDMI cable.
• Link the transmitter to the receiver: Run a single Cat5e cable from the VE800A Transmitter to the VE800A Receiver. Ensure the cable is category-rated for the distance and environment to maintain signal integrity.
• Connect the display: Attach an HDMI cable from the VE800A Receiver’s HDMI output to the display (monitor, projector, or TV).
• Power both ends: Connect the external power adapters to the Transmitter and Receiver, then power them on. If EDID is required, use the DDC port to select or confirm the display EDID settings for optimal resolution and color depth.
• Test and adjust: Power on the HDMI source and display, verify that the image and audio are correctly transmitted at the display’s native resolution, and adjust settings if necessary to optimize frame rate and color.

Frequently asked questions

• Q: What is the maximum distance supported by VE800A? A: VE800A supports HDMI extension up to 60 meters over a single Cat5e cable, enabling flexible placement of devices across rooms or larger spaces.
• Q: Which resolutions and formats are supported? A: VE800A supports HDMI video up to 1080p at 60 Hz and standard multi-channel audio formats. It is HDCP-compliant and designed for reliable playback of Blu-ray, streaming, and other HD sources.
• Q: Is EDID management automatic? A: The VE800A includes a DDC/EDID port that allows the display’s EDID to be read and used for correct resolution and color settings, reducing guesswork and ensuring stable performance.
• Q: Do I need special software to operate VE800A? A: No software is required. VE800A is plug-and-play—connect the transmitter, the receiver, the Cat5e cable, and the HDMI displays, then power up the units.
• Q: Can I use VE800A in a multi-display or matrix setup? A: VE800A is designed for one-to-one HDMI extension between a single transmitter and a single receiver. For multi-display or routing scenarios, consider ATEN’s matrix or distribution products designed for multi-point allocations.
