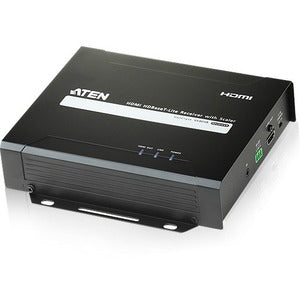

ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler - TAA Compliant

The ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler is a compact, high-performance solution designed to unlock flexible, long-range HDMI distribution in classrooms, conference rooms, retail spaces, and home theater setups. Engineered to pair seamlessly with ATEN’s HDMI HDBaseT transmitters, this receiver accepts an HDBaseT signal over a single Cat5e/6a cable and delivers pristine HDMI video, multi-channel audio, and control signals to a display. With an integrated scaler, the VE805R adapts output to match your display’s native resolution, ensuring crisp, correctly scaled images without manual adjustments. Built to meet strict compliance standards, including TAA, and optimized for enterprise deployments, the VE805R blends reliability with a clean, low-profile design that fits discreetly behind displays or in equipment racks. Whether you’re upgrading an existing AV setup or planning a new install, the VE805R gives you the power and flexibility to extend HDMI content across rooms, campuses, or storefronts with minimal cabling and maximum compatibility.

• Extend HDMI and control signals up to 60 meters over a single Cat5e/6a cable using HDBaseT-Lite (Class B) technology, enabling tidy, cost-efficient installations without multiple cables.
• Built-in scaler automatically adjusts the output resolution to match your display, removing the guesswork and ensuring the best possible image quality on screens of varying sizes.
• HDBaseT-Lite integration provides reliable distribution of audio, video, and control signals while maintaining compatibility with ATEN’s range of HDMI HDBaseT transmitters for scalable matrix and point-to-point setups.
• TI-compliant design with industry-standard features, including compatibility with commercial uses in education, business, and retail environments, while delivering consistent performance and ease of use.
• Compact, durable receiver that integrates into existing AV racks or mounts discreetly behind displays, delivering a clean, professional look with plug-and-play simplicity.

Technical Details of ATEN VE805R

• HDBaseT-Lite Receiver with Scaler for HDMI extension
• Transmission distance: up to 60 meters over Cat5e/6a
• Built-in scaler to adapt output to match display resolution
• HDMI output and HDBaseT input interfaces for straightforward integration
• TAA compliant and Class B certified for enterprise deployments
• Compact form factor designed for easy installation in racks or behind displays
• Cross-compatibility with ATEN HDMI HDBaseT transmitters to support flexible distribution matrices

How to install ATEN VE805R

• Plan your layout: determine the location of your HDMI source, the VE805R receiver, and the display. Confirm that a single Cat5e/6a cable can reach the VE805R from the corresponding HDBaseT transmitter.
• Connect the HDMI source to the HDBaseT transmitter (not shown here) using a standard HDMI cable. Ensure the transmitter is powered according to its own instructions.
• Run a single Cat5e/6a cable from the HDBaseT transmitter output to the VE805R’s HDBaseT input. Use high-quality cables rated for the installation distance to preserve signal integrity.
• Connect the VE805R’s HDMI output to your display using an HDMI cable. If you are using multiple displays or a matrix: configure each path as needed with the corresponding ATEN controller or transmitter.
• Provide power to the VE805R with the appropriate external power supply (not included if your kit requires it). Once powered, verify that the HDBaseT link indicators are active and that the built-in scaler correctly outputs to the attached display.
• Power on all devices, select the correct input on the display, and allow the VE805R’s scaler to optimize the resolution for the screen. Adjust display settings if necessary to achieve the best color, brightness, and sharpness.
• Test extended usage scenarios: switch sources or displays to confirm that the system reliably carries video, audio, and control signals over the Cat5e/6a link, and adjust how the scaler maps source content to each display if you have varying screen sizes.

Frequently asked questions

• What is the VE805R? The VE805R is an HDMI HDBaseT-Lite receiver with an integrated scaler. It is designed to receive an HDBaseT signal from a compatible transmitter over a Cat5e/6a cable and to deliver HDMI video, audio, and control signals to a display, with automatic scaling to match the display’s native resolution.
• How far can I extend my HDMI signal with the VE805R? The VE805R supports extension up to 60 meters over a single Cat5e/6a cable when paired with a compatible HDBaseT transmitter, making it suitable for classroom, conference room, and retail applications where long cable runs are needed.
• Does the VE805R require power? Yes. The VE805R requires an external power supply (not always included in every package). Ensure the unit is powered to maintain reliable operation of the HDBaseT link and the scaler.
• Is the VE805R compatible with all ATEN HDBaseT transmitters? The VE805R is designed to work within ATEN’s HDBaseT ecosystem. For optimal results, pair it with ATEN HDMI HDBaseT transmitters or kits specified as compatible to ensure seamless signaling of video, audio, and control data.
• Can the built-in scaler handle different display resolutions? Yes. The built-in scaler is designed to adapt the input signal to the display’s native resolution, enabling you to connect sources and screens with different resolutions without manual reconfiguration.
