ATEN VM7604 4-Port DVI Input Board

ATENSKU: 4114968

Price:
Sale price$753.70

Description

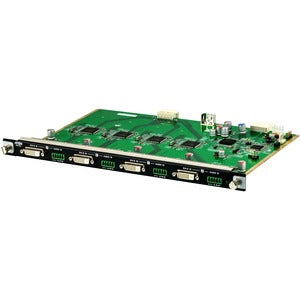

ATEN VM7604 4-Port DVI Input Board

The ATEN VM7604 is a high-performance 4-Port DVI Input Board designed to slot into ATEN’s VM1600/VM3200 modular matrix systems. Built for flexibility and reliability, this board lets you mix and match with other modular I/O boards to create tailored video routing solutions for digital signage, control rooms, conference rooms, and command centers. With superior video quality, robust HDCP handling, and smart EDID management, the VM7604 delivers smooth power-up and optimal signal integrity across all four input channels. If you’re deploying multi-source DVI content in a compact, scalable chassis, the VM7604 is engineered to meet the demands of professional environments where image clarity and dependable performance matter most.

  • Flexible 4-Port DVI input board: The VM7604 provides four independent DVI inputs that integrate seamlessly into ATEN’s modular VM systems, enabling you to route multiple sources through a single controller chassis with maximum layout flexibility.
  • Compatibility with VM1600/VM3200: Specifically engineered to work with ATEN VM1600 and VM3200 matrix controllers, the VM7604 fits into existing setups without requiring extensive reconfiguration, preserving your investment and simplifying deployment.
  • Mix and match with modular I/O boards: Designed for optically flexible installations, the VM7604 can be paired with a variety of modular I/O boards to assemble a custom video routing solution that scales with your needs.
  • Superior video quality up to 1920 x 1200 at 60 Hz: Each input supports full-resolution DVI video, delivering sharp images and smooth motion for high-end presentations, digital signage, and control-room applications.
  • HDCP 1.4 compatible with EDID Expert: The board supports HDCP 1.4 to protect premium content while EDID Expert intelligently selects optimum EDID settings for reliable power-up and the highest quality image across all inputs.

Technical Details of ATEN VM7604 4-Port DVI Input Board

  • Type: 4-Port DVI Input Board
  • Compatibility: VM1600 and VM3200 modular matrix systems
  • Input channels: 4 x DVI input ports
  • Maximum resolution: Up to 1920 x 1200 @ 60 Hz
  • HDCP support: HDCP 1.4 compatible
  • EDID: EDID Expert selects optimum EDID settings for smooth power-up and highest-quality image
  • Modular integration: Designed to be mixed with other modular I/O boards for flexible configurations
  • Application: Ideal for multi-source video routing in conference rooms, control rooms, digital signage, and multimedia displays

How to install ATEN VM7604 4-Port DVI Input Board

  • Power down the VM1600/VM3200 system and disconnect from the power source before installing any modules.
  • Open the chassis and locate an available slot compatible with the VM7604 module—designed for straightforward insertion into ATEN’s modular I/O framework.
  • Insert the VM7604 into the chosen slot and secure it with the appropriate fasteners or connectors as required by your chassis design.
  • Connect each of the four DVI sources to the corresponding DVI input ports on the VM7604. Ensure secure connections to prevent signal loss.
  • Power on the system and verify that the VM7604 is recognized by the VM1600/VM3200 controller. Use the controller software to confirm four active inputs and adjust EDID settings if necessary.
  • If you encounter any signal discrepancies, consult EDID Expert settings to optimize power-up behavior and maximize image quality across all inputs. Test each input at the expected resolution (up to 1920x1200 @ 60 Hz) to ensure stable performance.

Frequently asked questions

  • Q: What is the VM7604 used for? A: It serves as a 4-port DVI input board for ATEN VM1600/VM3200 modular matrix systems, enabling multiple DVI sources to feed a single controller for flexible routing and distribution.
  • Q: What resolutions does it support? A: The VM7604 supports up to 1920 x 1200 at 60 Hz per input, delivering high-definition image quality suitable for professional displays and signage.
  • Q: Is HDCP supported? A: Yes, it is HDCP 1.4 compatible, allowing protection of copyrighted content when used in compliant workflows.
  • Q: What is EDID Expert and why do I need it? A: EDID Expert selects optimum EDID settings for smooth power-up and the highest quality signal, ensuring reliable display detection and consistent image performance across all inputs.
  • Q: Can the VM7604 be mixed with other modular I/O boards? A: Yes, the design emphasizes mixing with modular I/O boards to build customized, scalable video routing configurations.
  • Q: Is additional software required to operate the VM7604? A: The VM7604 relies on the VM1600/VM3200 controller and its software suite for configuration and management of the four DVI inputs.
