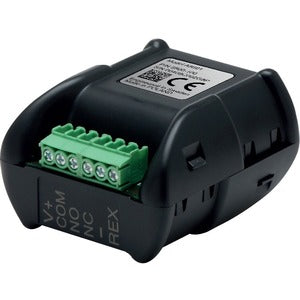

AXIS A9801 Security Relay

The AXIS A9801 Security Relay is a purpose-built solution engineered to strengthen door security in environments that rely on Axis network video door stations. By placing the relay box on the secure side of the door and bridging the connection between the door station and the door lock, this compact device adds a robust layer of protection against tampering while ensuring reliable door release control. Its design emphasizes easy installation, minimal wiring, and seamless integration with Axis ecosystems, making it an ideal choice for commercial installations such as offices, retail spaces, schools, hospitals, and any facility that prioritizes dependable access control paired with high-quality video verification. The A9801 is built to withstand the everyday demands of indoor security deployments, offering stable performance across a range of door configurations and lock types. With its secure-side placement, administrators can deploy a trusted, tamper-resistant solution that preserves the integrity of the lock circuit even if an attacker attempts to interfere with less secure components. The result is a streamlined, cost-effective upgrade to existing Axis door stations—one that enhances overall site security while keeping installation complexity to a minimum. Whether you’re modernizing an old entry or outfitting a new building with Axis security, the A9801 provides a reliable bridge between the video-powered door station and the mechanical or electronic strike, enabling precise timing for door release, robust logging for incident auditing, and smooth compatibility with Axis software workflows.

• Seamless integration with Axis network video door stations for dependable door release control, ensuring that the door lock activation is synchronized with live video verification and event logging.
• Secure-side installation designed to reduce tampering risk; the relay enclosure sits behind the protected barrier, keeping critical wiring and connections out of reach from potential intruders.
• Cost-effective, plug‑and‑play installation that minimizes wiring complexity and simplifies commissioning, allowing technicians to deploy a robust access control solution without expensive modifications or extensive re-wiring.
• Versatile compatibility with a wide range of electronic door locks and strike configurations, supporting standard door release methods while maintaining compatibility with Axis ecosystem tools and analytics.
• Compact, durable enclosure optimized for indoor use and professional deployments, delivering reliable performance in everyday environments while preserving the clean aesthetic of modern security installations.

Technical Details of AXIS A9801 Security Relay

• Product Type: Security relay box designed to work with Axis IP door stations
• Model: A9801
• Brand: Axis Communications
• Intended Use: Bridges door station and door lock; mounted on the secure side of the door
• Compatibility: Axis network video door stations and standard electronic door lock systems
• Power and Wiring: Designed to interface with standard access control power supplies and door strike circuits
• Mounting: Compact enclosure suitable for indoor installation; designed for discreet mounting near the door
• Environmental Considerations: Built for typical hallway and entryway environments, with emphasis on reliability and long-term operation

How to install AXIS A9801 Security Relay

• Plan your installation by identifying the door station output, the door strike or lock control input, and the dedicated power supply routing. Position the A9801 on the secure side of the door, close to the lock mechanism for short, clean wiring runs.
• Mount the relay box in a location that is easily accessible for maintenance but well protected from direct tampering. Use provided mounting hardware and ensure the enclosure is secured to a solid surface following standard installation practices.
• Connect the door station’s release output to the A9801 input terminals, and connect the A9801’s output to the door strike or electronic lock. Follow the wiring diagram provided by Axis to ensure correct polarity and timing for reliable door release without ghosting or misfires.
• Verify power requirements and connect to a suitable power source that aligns with your existing access control infrastructure. Confirm that the door release circuit is isolated from other circuits to prevent cross-talk and interference.
• Configure Axis software to recognize the door release event, synchronize with video verification if applicable, and set any required fail-safe or fail-secure behavior. Run a sequence of test releases to confirm timing, permissions, and event logging.
• Perform a final check for cable management, strain relief, and cable routing to minimize wear and environmental exposure. Document the installation for future maintenance and warranty considerations.

Frequently asked questions

• What is the AXIS A9801 Security Relay used for? It acts as a secure bridge between Axis door stations and door locks, enabling controlled door release while keeping critical connections on the secure side of the door to reduce tampering risks.
• Is the A9801 compatible with all Axis door stations? The A9801 is designed to work with Axis network video door stations and standard electronic door lock configurations, making it suitable for most Axis-enabled access control setups.
• Does the A9801 improve security against tampering? Yes. By placing the relay on the secure side, it minimizes opportunities for tampering with the door release circuit and door lock wiring, contributing to a more robust security posture.
• Do I need special tools or training to install it? The A9801 is intended to simplify installation for qualified security technicians. Basic wiring, mounting, and configuration knowledge is recommended, along with following Axis installation guidelines.
• What benefits does this bring to an Axis-powered security system? It provides a reliable, integrated mechanism for door release, improves auditability through event logging, and enhances overall system integrity by separating the door station from the lock control path.
