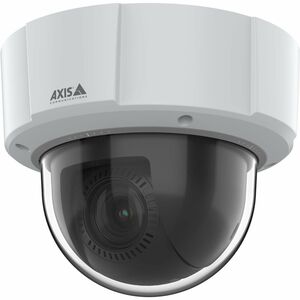

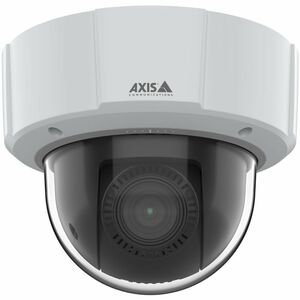

AXIS M5526-E 4MP Indoor/Outdoor Network Camera – Dome – White

The AXIS M5526-E 4MP Indoor/Outdoor Network Camera combines affordable high-resolution imaging with flexible 360° coverage and long-range zoom, making it ideal for storefronts, campuses, transportation hubs, and outdoor perimeters. Built on the advanced ARTPEC-8 platform, this dome camera delivers crisp 4 MP video, smooth autofocus, and reliable performance in a compact, white dome housing. Its compatibility with all Axis PTZ mounts means you can deploy it in a wide range of environments, from indoor atriums to weather-exposed exterior walls, while maintaining a discreet, low-profile aesthetic. With continuous 360° pan and potent onboard analytics, the M5526-E helps you monitor large areas with fewer cameras, reduce blind spots, and speed up incident response—all at an affordable price point.

• 4 MP image quality — Crisp, high-resolution video at up to 30 fps enables reliable identification of details such as faces and license plates over broad scenes, with efficient encoding options to balance bandwidth and storage requirements.
• 10x optical zoom with autofocus — Seamlessly zoom from wide-area surveillance to precise close-ups without sacrificing clarity, supported by rapid and accurate autofocus for dynamic environments.
• 360° continuous pan — Full, uninterrupted rotation provides complete coverage of large areas, reducing blind spots and enabling smooth tracking of moving subjects across the scene.
• Built-in deep learning analytics — On-board AI capabilities detect and classify objects (e.g., people, vehicles) and trigger intelligent alerts, loitering detection, line-crossing events, and other security workflows to boost responsiveness and minimize false alarms.
• Indoor/Outdoor versatility — A durable, white dome design that performs in both indoor and outdoor settings, compatible with Axis PTZ mounts for flexible mounting on walls, ceilings, or poles while maintaining reliable performance in varying conditions.

Technical Details of AXIS M5526-E 4MP Indoor/Outdoor Network Camera

• Resolution: 4 MP (2688x1520) progressive scan for sharp detail across wide scenes
• Lens: 10x optical zoom with autofocus for versatile framing and close-ups
• Pan/Tilt: Continuous 360° pan for full-area coverage and precise subject tracking
• Video code support: H.265, H.264, and MJPEG for flexible streaming and bandwidth optimization
• Processor: ARTPEC-8-based system on chip delivering robust performance and enhanced security features
• Analytics: Built-in deep learning analytics for object detection (people, vehicles) and event-based triggers
• Environment: Indoor/outdoor design with weather-resistant housing; compatible with Axis PTZ mounts for versatile installation
• Power: Power over Ethernet (PoE) or 12 V DC power input for easy cabling and deployment

how to install AXIS M5526-E

Installing the AXIS M5526-E is straightforward when you plan for flexible coverage and reliable connectivity. Start by selecting a mounting location that leverages the camera’s 360° panoramic capabilities while minimizing obstructions. The camera is designed to work with Axis PTZ mounts, so choose a mounting base that matches your site requirements and supports the preferred orientation (ceiling, wall, or pole) for optimal field of view. Ensure a solid mounting surface and prepare a clean, weather-protected cable path if installing outdoors. Use a PoE-capable network switch or PoE injector to simplify power and data transmission with a single Ethernet cable. After physically installing the camera, proceed with the following steps to finalize the setup: connect power and network, discover the device on your network, and access the built-in web interface or Axis Companion/Video Management System (VMS) integration for configuration. Update the firmware to the latest version for security and performance improvements, then configure the video streams (resolutions, frame rates, and codecs), enable autofocus, and set up privacy masks to protect sensitive areas. Turn on the deep learning analytics to start detecting people and vehicles, and create event rules such as motion alerts, line-crossing detections, or loitering alarms. Finally, verify the camera’s live view, test PTZ responsiveness, and perform a quick multi-camera calibration if deploying a multi-camera surveillance zone. Documentation and labeling of the installation location will help maintenance teams navigate future service or upgrades.

Frequently asked questions

• What resolution and frame rate does the AXIS M5526-E support? It delivers 4 MP video with up to 30 frames per second, depending on encoding settings and scene complexity.
• Is the camera suitable for outdoor use? Yes. The M5526-E is designed for both indoor and outdoor installations and works with Axis PTZ mounts to fit a variety of environments.
• What power options are available? The camera supports Power over Ethernet (PoE) and 12 V DC power, enabling flexible and simplified wiring in most installations.
• What analytics are included? Built-in deep learning analytics provide intelligent detection for people and vehicles, as well as behavior-based alerts such as loitering or line-crossing, which can be integrated with VMS workflows for faster responses.
• Is it compatible with Axis PTZ mounts? Yes. The AXIS M5526-E is designed to be compatible with all Axis PTZ mounts, offering adaptable mounting options for a wide range of sites and installations.
