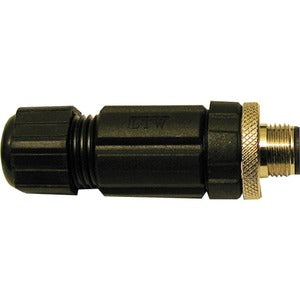

AXIS Male M12 4p Connector, 10 pcs

AXISSKU: 8935219

Price:
Sale price$201.54

Description

AXIS Male M12 4p Connector, 10 pcs

The AXIS Male M12 4p Connector is engineered for rugged, professional deployments where reliability matters most. With an IP67-rated enclosure, field-installable screw-in contacts, and a design tailored for AXIS P39 M12 models, this connector delivers secure, weatherproof connectivity for surveillance systems in challenging environments. Whether you’re upgrading outdoor cameras, securing industrial facilities, or expanding a network of Axis devices, this 4-pin M12 connector offers a robust solution that minimizes downtime and preserves signal integrity across long runs and tough conditions. Each pack includes 10 connectors, ensuring you have ample supply for multiple installations or spare parts for ongoing maintenance.

  • Rugged IP67 protection for harsh environments: The M12 4p connector is built to withstand dust, water exposure, and temperature fluctuations, making it an ideal choice for outdoor installations, industrial sites, and enclosures where environmental sealing is critical. Its rugged housing helps maintain a pristine signal path and reduces the risk of corrosion or ingress that could compromise performance. This level of protection translates to longer device life, less maintenance, and more reliable operation in all seasons.
  • 4-pin configuration optimized for Axis devices: The 4-pin layout supports essential power and data sharing necessary for AXIS camera systems. Designed to maintain stable electrical connections, the connector ensures consistent transmission of video, power, and control signals in a compact form factor. Its standardized M12 interface aligns with common industrial cabling practices, simplifying integration with Axis accessories and third-party components that are compatible with M12 4-pin standards.
  • Field-installable with screw-in contacts for quick on-site wiring: This connector is built for field serviceability, allowing technicians to assemble and terminate cables on-site without specialized tooling. Screw-in contacts provide secure, repeatable connections that resist loosening due to vibration or impact—an important consideration for outdoor camera poles, vehicle mounts, or ceiling installations where movement is common. The field-installable design minimizes downtime, keeps wiring tidy, and ensures a tight seal around each contact bond.
  • Exclusive compatibility with AXIS P39 M12 models: The connector is designed to pair seamlessly with AXIS P39 M12 cameras and accessories, delivering optimized performance and reliability when used within the Axis ecosystem. This compatibility ensures proper mating geometry, electrical characteristics, and sealing interfaces, helping to prevent misalignment or mismatch that can lead to signal loss or corrosion. For installers, using the AXIS-approved pairing reduces troubleshooting time and supports long-term warranty considerations.
  • Convenient 10-piece pack for installers and distributors: Each purchase includes 10 connectors, providing ample quantity for multi-camera deployments, spare parts, or ongoing projects. A consistent pack size helps with inventory planning, budgeting, and rapid scaling of surveillance networks. The value-oriented packaging supports professional installers who need dependable components that arrive ready for assembly, with predictable performance across all units in the batch.

Technical Details of AXIS Male M12 4p Connector, 10 pcs

  • Configuration: 4-pin M12 male connector
  • IP rating: IP67-rated enclosure for dust and water immersion resistance
  • Installation: Field-installable with screw-in contacts for on-site wiring
  • Compatibility: Designed for AXIS P39 M12 models only
  • Pack size: 10 connectors per pack

How to install AXIS Male M12 4p Connector

  • 1. Verify compatibility and safety: Before starting, confirm that your device is an AXIS P39 M12 model and that the installation location supports outdoor or harsh-environment mounting. Power down any connected equipment according to site safety procedures, and prepare a clean workspace to prevent contamination of the connector contacts.
  • 2. Prepare the cable and conductors: Measure the required length of cable run, then strip insulation to expose conductors for the screw-in contacts. Use appropriate wire gauges recommended for M12 4-pin systems and ensure the conductors are clean and free of nicks or oxidation. It helps to trim to a uniform length for consistent contact seating and sealing.
  • 3. Install screw-in contacts into the M12 housing: Insert the conductors into the screw-in contact cavities following the product’s wiring diagram. Tighten the set screws to secure each conductor, ensuring a firm, low-resistance connection. Check for any stray strands and trim them as needed to prevent short circuits, then inspect the interface for a clean seal around the contact entries to maintain IP67 integrity.
  • 4. Attach the contacts to the housing and complete the seal: Once all conductors are secured, assemble the contact set into the M12 housing, ensuring proper alignment and seating. Perform a final check of the gasket or sealing interface to ensure dust and water ingress protection is maintained. If applicable, engage any strain relief or cable clamps to prevent movement at the single-point connection.
  • 5. Connect to the AXIS P39 device and test: Mating the connector with the AXIS P39 M12 receptacle should be smooth and tactile. Tighten any mounting hardware as required, then power on the system and run a full continuity and functional test. Verify data transmission, power delivery, and network performance, and check the IP67 seal by simulating exposure conditions in accordance with your organization’s testing standards.
  • 6. Document and secure installation: Record the installation details, including cable length, routing path, and connector part numbers for future maintenance. Use appropriate cable management to keep the area tidy, protect against inadvertent damage, and preserve seal integrity over time.

Frequently asked questions

  • Q: Is this connector compatible with Axis models other than the P39 M12?
    A: The connector is specified as compatible with AXIS P39 M12 models. It is not advertised for universal compatibility with all Axis devices, so verifying model compatibility before purchase is recommended.
  • Q: Will the IP67 rating protect against full submersion?
    A: IP67 denotes dust-tight protection and temporary immersion in water up to 1 meter for a limited period. For extended submersion or higher pressures, refer to installation guidelines and use appropriate sealing methods to maintain protection in your specific environment.
  • Q: How many connectors come in a pack?
    A: Each pack includes 10 AXIS M12 4p connectors, designed for multiple installations or replacement parts across projects, enabling consistent procurement and inventory management.
  • Q: Can I install this connector in the field without specialized tools?
    A: Yes. The field-installable design with screw-in contacts is intended for practical on-site wiring. Basic hand tools and standard inspection practices are typically sufficient, though follow your organization’s standards for torque tolerances and sealing to ensure long-term reliability.
