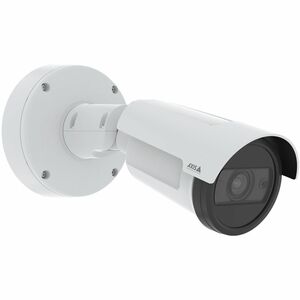

AXIS P1468-LE 5 Megapixel 4K Network Camera – Indoor/Outdoor, Color & Monochrome

The AXIS P1468-LE is a high-performance, bullet-style network camera designed to deliver crystal-clear 4K Ultra HD video in both color and monochrome modes. Built to handle challenging outdoor and indoor environments, this rugged, TAA-compliant camera combines a versatile 6–13 mm varifocal lens with a reliable weatherproof housing, making it an ideal choice for entrances, perimeters, parking lots, and other high-traffic surveillance areas. With flexible mounting options and advanced compression technologies, the P1468-LE provides sharp detail, efficient bandwidth usage, and long-term reliability in demanding security deployments.

• Crystal 4K image quality: Captures up to 3840 × 2160 resolution at 30 frames per second, delivering highly detailed footage that supports effective identification even at a distance. The 4K output ensures you can zoom in on critical moments without sacrificing clarity.
• Versatile day/night imaging: The camera supports color imaging during daylight and switches to monochrome for enhanced contrast in low-light conditions, helping you maintain visibility when lighting is inconsistent.
• 6–13 mm varifocal lens with 2.2x optical zoom: The adjustable focal length enables flexible field of view—from broad scenes to tightly detailed areas—without needing to reposition the camera, simplifying installation and ongoing adjustments.
• Rugged, weatherproof build: A bullet-style enclosure rated IP66/IP67 for water and dust resistance, combined with IK10 impact protection, ensuring reliable operation in harsh weather and tamper-prone environments.
• Flexible mounting and broad compatibility: Supports bracket, wall, and ceiling mounting options, plus TAA compliance for government procurement. It also accommodates multiple streaming profiles and efficient codecs (H.264, H.265, Zipstream, Motion JPEG) to optimize bandwidth and storage.

Technical Details of AXIS P1468-LE

• Product line: AXIS P1468-LE Bullet Network Camera (Indoor/Outdoor)
• Resolution: 3840 × 2160 (4K) at up to 30 fps
• Image sensor: 5 megapixel sensor delivering high-detail imaging for surveillance applications
• Lens: 6–13 mm varifocal lens with 2.2× optical zoom for flexible framing
• Day/Night: Color imaging during the day; monochrome imaging for improved night detail
• Video compression: H.264, H.265, Zipstream, and Motion JPEG for adaptable streaming and efficient bandwidth use
• Protection rating: IP66 and IP67 ingress protection, enabling reliable outdoor and exposure to the elements
• Durability: IK10 impact resistance for enhanced tamper and vandal resilience
• Mounting options: Bracket mount, wall mount, and ceiling mount to suit a variety of installation environments
• Compliance: TAA compliant for procurement in restricted government programs
• Imaging versatility: Indoor/outdoor design supports a wide range of surveillance scenarios, from building entrances to exterior perimeters

how to install AXIS P1468-LE

• Plan the installation by identifying critical areas to monitor (entry points, high-traffic zones) and selecting a mounting surface that provides stable support and protected cabling. Consider weather exposure and potential line-of-sight obstructions when choosing bracket, wall, or ceiling mounting.
• Attach the appropriate mounting hardware for your chosen configuration (bracket, wall, or ceiling). Ensure the mounting surface is solid, and use appropriate anchors and seals to preserve the camera’s IP66/IP67 rating.
• Run the network cable to the camera location and connect it to your network (use Power over Ethernet if available). Verify secure connections and cable seals to protect against moisture ingress and dust.
• Power up the camera and access the Axis web-based interface or your preferred VMS (video management system). Configure basic settings, assign a unique IP address, and set up streaming profiles tailored to your surveillance needs.
• Calibrate the lens, set day/night mode preferences, and adjust image parameters (exposure, brightness, contrast). Enable region-based motion detection and privacy masking as needed to meet privacy and security requirements.

Frequently asked questions

• What resolution does the AXIS P1468-LE support? It supports up to 3840 × 2160 (4K) at 30 frames per second for crisp, highly detailed footage.
• Is this camera suitable for outdoor use? Yes. It is designed for indoor and outdoor use with IP66/IP67 protection and IK10 impact resistance, making it resilient in challenging environments.
• Does it offer day/night capabilities? Yes. It provides color imaging during daylight and switches to monochrome imaging to enhance visibility in low-light conditions.
• What video codecs are available? The camera supports H.264, H.265, Zipstream, and Motion JPEG, giving you flexible options for bandwidth management and storage efficiency.
• What mounting options does it support? It offers bracket, wall, and ceiling mounting possibilities to adapt to a variety of installation scenarios.
• Is the AXIS P1468-LE TAA compliant? Yes, it is TAA compliant, suitable for procurement in government and other restricted markets.
