Description

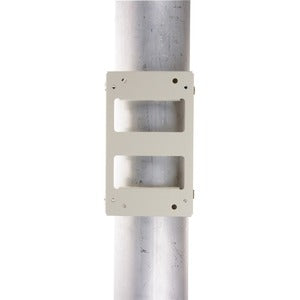

AXIS TD9301 Pole Mount for Power Injector
The AXIS TD9301 Pole Mount for Power Injector is a purpose-built mounting solution designed to simplify and secure outdoor deployments of AXIS Outdoor Midspan 30W power injectors. Built to handle the rigors of outdoor environments, this pole mount provides an adjustable, reliable attachment point on vertical poles and supports clean, efficient cable management for enhanced network reliability. Whether you’re upgrading a surveillance network, expanding a campus security system, or deploying cameras along long perimeters, the TD9301 helps you position the power injector precisely where it’s needed while protecting connections from the elements.
- Universal pole compatibility: The TD9301 is engineered to fit poles with a diameter ranging from 25.4 mm to 203.2 mm (1 to 8 inches), enabling installation on a wide array of light poles, utility poles, or mounting columns commonly found in outdoor security deployments.
- Optimized for AXIS Outdoor Midspan 30W: This pole mount is purpose-built to work seamlessly with AXIS Outdoor Midspan 30W injectors, ensuring efficient power delivery and stable performance for IP cameras and related gear in outdoor settings.
- Adjustable and versatile: The design supports adjustable positioning, allowing you to tilt or align the injector to optimize cable routing, reduce strain, and achieve ideal alignment with connected devices for reliable PoE power.
- Secure mounting options: The TD9301 tightens with either two sturdy brackets or two stainless steel straps, giving you flexible installation approaches that prioritize security and ease of maintenance in harsh environments.
- Rugged, weather-ready construction: Built for outdoor use, this pole mount withstands sun exposure, rain, wind, and temperature fluctuations, helping to protect connectors and maintain performance over time.
Technical Details of AXIS TD9301 Pole Mount for Power Injector
- Product type: Outdoor pole mount for AXIS Outdoor Midspan 30W power injector, designed to securely attach the injector to vertical poles.
- Compatibility: Specifically engineered for AXIS Outdoor Midspan 30W injectors, with broad applicability to compatible PoE deployments in outdoor environments.
- Pole diameter range: Fits poles with a diameter of 25.4–203.2 mm (1–8 in), offering flexibility for a wide variety of installation sites.
- Mounting methods: Tightening options include two brackets or two stainless steel straps, providing versatile installation choices based on site conditions and security needs.
- Adjustability: The mount provides adjustable positioning to optimize injector orientation and cable management for minimal stress on connectors.
- Outdoor design considerations: Built for outdoor environments to resist weather-related wear while keeping the midspan power injector securely in place.
How to install AXIS TD9301 Pole Mount for Power Injector
Step 1: Prepare the mounting site - Inspect the installation location and verify pole diameter and condition. Ensure the pole is structurally sound and free of damage that could compromise the mount or injector.
Step 2: Choose your mounting method - Decide between using two brackets or two stainless steel straps based on pole type, site accessibility, and preferred maintenance cadence. Gather the appropriate hardware and verify that components are clean and free from corrosion.
Step 3: Attach the TD9301 to the pole - If using brackets, align them around the pole and secure with the supplied fasteners. If using stainless steel straps, wrap the straps around the pole and tighten to a snug, vibration-free fit without restricting pole movement.
Step 4: Secure the AXIS Outdoor Midspan 30W injector - Mount the power injector onto the TD9301’s corresponding mounting surface, ensuring that the injector sits firmly and that any mounting holes or strap points are oriented to support clean cable routing. Avoid over-tightening to prevent damage to the injector housing.
Step 5: Route and secure cables - Run PoE and data cables along the pole and toward the device being powered. Use cable clamps or ties to minimize movement and prevent strain on the connector, then perform a final check of all fasteners and clearances to ensure reliable operation in wind or rain.
Step 6: Test and confirm - Power on the injector and verify that connected devices receive stable power and data signals. Inspect connections for signs of looseness or movement after a wind event, and adjust the mounting if necessary to maintain optimal alignment.
The AXIS TD9301 Pole Mount is designed to simplify outdoor deployments by providing a robust, adaptable solution that keeps the power injector secure while allowing easy serviceability. With its flexible mounting options and weather-conscious design, this pole mount reduces installation time and helps ensure that AXIS IP cameras and other devices receive reliable PoE power in challenging outdoor conditions.
Frequently asked questions
- Q: What poles does the TD9301 fit? A: It accommodates poles with diameters from 25.4 mm to 203.2 mm (1 to 8 inches), making it suitable for a wide range of installation scenarios.
- Q: Is the TD9301 compatible only with AXIS Outdoor Midspan 30W? A: The mount is designed for AXIS Outdoor Midspan 30W power injectors, offering secure mounting and reliable power delivery in outdoor deployments; while it may be physically adaptable to other injectors, use with non-specified devices should be validated for safety and performance.
- Q: What mounting options are included? A: The TD9301 supports mounting via two brackets or two stainless steel straps, giving you two flexible methods to secure the injector to the pole depending on site requirements.
- Q: Does it require special tools? A: Basic hand tools for securing brackets or straps are typically sufficient. Always follow your organization’s safety guidelines and manufacturer recommendations during installation.
- Q: Is this product weather-resistant? A: Yes, it is designed for outdoor use, providing sturdy support for the AXIS Outdoor Midspan 30W injector in various weather conditions.
- Q: Can I adjust the orientation after installation? A: Yes, the TD9301 is adjustable to help you align your power injector and optimize cable routing while preserving a clean, professional installation.
