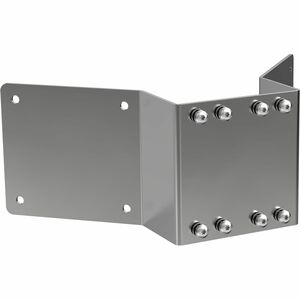

AXIS TQ1303-E Corner Mount for Surveillance Camera

The AXIS TQ1303-E Corner Mount is a rugged, stainless steel solution engineered to position AXIS PTZ cameras with precision in corner configurations. Specifically designed for use with AXIS XPQ1785 and in tandem with the AXIS TQ1001-E Wall Mount, this corner mounting accessory enables secure, low-profile installations where space is at a premium. Built to withstand demanding environments—onshore facilities, offshore platforms, marine vessels, and heavy industrial sites—the corner mount delivers dependable performance, easier serviceability, and flexible coverage that helps you optimize surveillance angles without compromising camera stability or reach. Its robust construction, thoughtful cable routing, and easy-access fasteners make it a practical choice for complex sites where corners provide the best vantage points for monitoring critical zones, approaches, and perimeters.

• Premium stainless steel construction delivers exceptional strength and corrosion resistance, ensuring durability in salt spray, humidity, and wide temperature ranges common to marine and offshore environments. The rugged build reduces maintenance cycles and extends service life, so you can rely on steady performance over years of operation.
• Precise alignment and a vibration-resistant mounting interface minimize drift caused by wind, vessel movement, or equipment vibrations. This rigidity helps maintain accurate pan/tilt settings, preserves framing consistency, and supports high-quality, repeatable video capture for reliable analytics over time.
• Seamless integration with AXIS XPQ1785 cameras and the AXIS TQ1001-E Wall Mount enables a true corner installation without sacrificing accessibility. The design supports straightforward alignment, secure connections, and uncomplicated retrofit or upgrades when your surveillance strategy evolves.
• Optimized for versatile environments where space and sightlines matter—from dock entrances and narrow passages to perimeters and loading bays. The corner-mount configuration expands coverage options while preserving a compact profile that minimizes obstructions in surveillance blind spots.
• Installation-friendly features, including accessible fasteners and organized cable pathways, simplify setup and ongoing maintenance. The modular approach supports easy reconfiguration if camera positioning or coverage requirements change, reducing downtime during system upgrades.

Technical Details of AXIS TQ1303-E Corner Mount for Surveillance Camera

• Material: Stainless steel for corrosion resistance and long-term durability in harsh environments
• Mounting type: Corner mount designed to support PTZ cameras when installed with AXIS XPQ1785
• Compatibility: Designed for AXIS XPQ1785; requires AXIS TQ1001-E Wall Mount for complete corner configuration
• Recommended applications: Onshore facilities, offshore platforms, marine vessels, and heavy industrial sites
• Construction features: Robust fasteners and integrated cable routing to facilitate secure, neat installations and easy service access

How to install AXIS TQ1303-E Corner Mount

• 1. Verify mounting surface suitability and confirm compatibility with AXIS XPQ1785 and AXIS TQ1001-E components. Ensure substrate strength and appropriate environmental protection are in place for the installation location.
• 2. Install the AXIS TQ1001-E Wall Mount to the chosen corner structure using appropriate anchors and fasteners rated for the substrate and environmental conditions. Ensure the wall mount is level and securely fixed.
• 3. Attach the AXIS TQ1303-E corner bracket to the wall mount, align mounting holes precisely, and tighten fasteners to specification. Check for square alignment to ensure optimal camera orientation once the PTZ unit is mounted.
• 4. Route signal and power cables through the corner mount’s built-in channels or conduits, providing proper strain relief and weatherproofing where needed. Maintain clean routing to minimize cable wear and simplify future service.
• 5. Mount the AXIS XPQ1785 PTZ camera onto the corner assembly, perform a basic alignment, and verify pan/tilt/zoom movement and camera control integration with the video management system. Conduct a coverage check to confirm the desired field of view and target tracking performance.

Frequently asked questions

• Q: What environments is the AXIS TQ1303-E Corner Mount suitable for?

  A: The corner mount is designed for demanding environments, including onshore facilities, offshore platforms, marine vessels, and heavy industrial sites. Its stainless steel construction provides corrosion resistance and stability in challenging conditions, helping ensure reliable operation over the long term.

• Q: Which components are required for a complete corner installation?

  A: For a corner configuration, this mount is designed to work with AXIS XPQ1785 cameras and the AXIS TQ1001-E Wall Mount. The combination enables secure corner placement while preserving accessibility for maintenance and future upgrades.

• Q: Can I adapt this mount for other AXIS camera models?

  A: The AXIS TQ1303-E is specified to pair with AXIS XPQ1785 in conjunction with the AXIS TQ1001-E wall mount. Compatibility with non-AXIS or alternative camera models is not specified and may require verification with AXIS support or a qualified installer.

• Q: How does the corner mount improve surveillance coverage?

  A: Corner mounting expands the field of view by leveraging two perpendicular surfaces to position the camera. This arrangement reduces blind spots at entryways, perimeters, and confined spaces, enabling a broader and more flexible monitoring solution while maintaining a compact footprint.

• Q: What maintenance considerations are there?

  A: With its stainless steel construction, the mount resists corrosion and wear in challenging environments. Routine inspections of fasteners, cable routing, and camera alignment are advised to ensure continued stability and optimal performance over time.
