Description

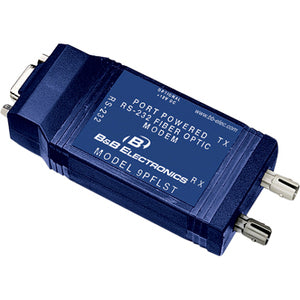

Meet the B&B Electronics 9 PIN 232 FO MODEM W/HANDSHAKE, a high-performance serial to fiber optic converter engineered for robust industrial networking. This compact module enables seamless communication between RS-232 devices and RS-422/485 networks by translating serial signals into fiber-optic transmission, delivering long-distance reach, superior noise rejection, and galvanic isolation. Ideal for factory floors, remote monitoring, and control systems, this device replaces multiple adapters and isolators with a single, reliable solution that simplifies installation while preserving data integrity and timing. Whether upgrading legacy equipment or expanding an existing network, this 9-pin to fiber modem is designed to maximize uptime and minimize infrastructure costs.
- Flexible protocol compatibility: Connect RS-232 devices on the local side to RS-422/485 devices on the remote side through a fiber optic link. This enables mixed-standard deployments and streamlines integration by replacing separate converters and isolators with one versatile module.
- Automatic Send Data (ASD) control for RS-485: The onboard ASD feature manages bus control automatically, eliminating the need for specialized driver software and reducing configuration time. This is particularly beneficial in multi-drop RS-485 networks where bus contention can impact performance.
- Fiber optic advantages for reliability: Transmission over fiber provides immunity to EMI/RFI, eliminates ground loops, and delivers galvanic isolation. These characteristics are essential in environments with electrical noise, varying ground potentials, or safety requirements.
- Plug-and-play deployment: Designed for straightforward installation with standard serial cabling and fiber links. Its compact form factor fits easily into enclosures and on equipment racks, enabling quick integration into existing systems without extensive rewiring.
- Durable, industrial-ready design: Built to withstand challenging environments, the modem features rugged connectors and a form factor suitable for deployment in manufacturing, remote sites, and process control installations.
Technical Details of B&B 9 PIN 232 FO MODEM W/HANDSHAKE
- Serial Interface: 9-pin D-sub (DB9) connector for RS-232 communication; supports connection to DTE/DCE devices as required by the network topology.
- Fiber Optic Interface: Fiber link to carry RS-422/RS-485 signals between the local serial device and remote equipment, enabling long-distance transmissions with high immunity to interference.
- Supported Standards & Bridging: Enables seamless bridging between RS-232 and RS-422/485 standards within a single device, allowing mixed-standards networks to operate without additional converters.
- Handshaking & Data Control: Features handshake-enabled operation with Automatic Send Data (ASD) for RS-485 to coordinate data flow and minimize collisions on the bus.
- Durability & Compatibility: Engineered for industrial environments with robust construction and compatibility with a range of serial equipment and fiber transceivers.
How to Install B&B 9 PIN 232 FO MODEM W/HANDSHAKE
Install the B&B 9 PIN 232 FO MODEM W/HANDSHAKE by following these general guidelines to ensure reliable operation and optimal performance. Always refer to the equipment manuals and safety guidelines for your specific environment.
- Prepare the system: Ensure power availability and verify that you have the appropriate fiber optic transceiver and fiber cabling rated for your network distance and bandwidth requirements. Confirm the RS-232 device and the RS-422/485 devices are powered and ready for integration.
- Connect the RS-232 side: Attach the RS-232 device to the 9-pin D-sub (DB9) port according to the host’s DTE/DCE orientation. Use standard straight-through or crossover serial cables as required by the device and the modem’s configuration.
- Link the fiber side: Connect the fiber optic transmitter and receiver to the corresponding fiber ports, then run the fiber cable to the remote device or network node. Ensure proper polarity and secure connectors to prevent signal loss.
- Power and grounding: Apply the appropriate power supply as specified by the manufacturer. Verify grounding requirements and ensure the installation adheres to safety and electrical codes relevant to your facility.
- Configure the device: If ASD or handshake settings are adjustable, set them to factory defaults or adjust according to your network plan. In most cases, factory defaults provide a reliable starting point. Test with a known-good host to confirm data integrity and network throughput.
- Test and verify: Power up the system and verify link indicators, LED statuses, and basic data transmission between the local RS-232 device and the remote RS-422/485 device. Perform a loopback or end-to-end test to confirm reliability across the fiber link.
Frequently asked questions
-
Q: What does the B&B 9 PIN 232 FO MODEM W/HANDSHAKE do?
A: It acts as a bridge between RS-232 serial equipment and RS-422/485 networks over a fiber optic link. This enables long-distance, noise-immune communication while supporting mixed standards in a single device. -
Q: Do I need driver software to use this modem?
A: No driver software is required for RS-485 operation when using the Automatic Send Data (ASD) control. The device handles bus control automatically, simplifying installation and reducing potential driver conflicts on host machines. -
Q: What environments is this modem best suited for?
A: Industrial environments with electrical noise, long-distance transmission needs, and a requirement for galvanic isolation. It is well-suited for factory automation, SCADA, machine-to-machine communication, and remote monitoring systems. -
Q: Can this unit be mounted in equipment racks or enclosures?
A: Yes, the modem is designed with a compact, rugged form factor suitable for mounting in standard equipment racks or enclosures found in industrial settings. -
Q: How should I determine the fiber distance and type?
A: Select fiber type (multimode or single-mode) and distance based on your transceivers and network design. Refer to the official specifications for recommended fiber types and maximum link distances for your configuration.
