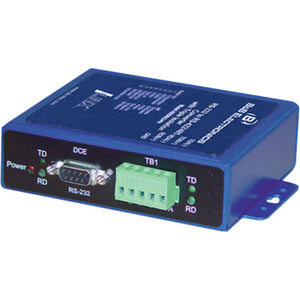

B&B Heavy Industrial RS232 to RS485 Converter — Rugged Industrial Serial Gateway

Introducing the B&B Heavy Industrial RS232 to RS485 Converter, a purpose-built bridge engineered for harsh industrial environments where dependable serial communication is non-negotiable. This high-performance converter transforms RS232 signals into RS485 with precision, enabling reliable, long-distance data transmission across complex automation and control networks. Built to endure demanding conditions, it adheres to key industrial standards such as IEEE-61850-3 and IEEE 1613, ensuring compatibility with substations, manufacturing plants, and energy infrastructure. The rugged metal panel-mount enclosure, wide operating temperature range, and robust protection features guarantee stable operation in environments prone to dust, vibration, and electrical noise. With a flexible 10-48 VDC power input and 2kV triple isolation, this device provides a resilient, safe, and easy-to-maintain serial bridging solution for industrial automation, process control, and field deployments that demand high reliability and minimal downtime.

• Industrial-grade rugged design and environmental resilience: The converter is built for tough environments with an IP30 metal panel-mount enclosure, operating from -40°C to 85°C, and a rugged chassis that resists dust, moisture, and physical wear. Its compact form fits neatly into control panels, cabinets, or equipment racks, ensuring dependable performance even in crowded or heat-prone installations.
• Reliable RS232 to RS485 conversion for industrial networks: Seamlessly bridges RS232 devices to RS485 networks, enabling high-speed data transfer over longer distances with reduced signal degradation. By aligning with IEEE-61850-3 and IEEE 1613 standards, it delivers deterministic, error-free communications essential for automation, substation, and factory-floor applications.
• Extreme durability against shock and vibration: With a 50G shock rating and 4G vibration capability, this converter maintains stable signaling in moving equipment, freight vehicles, and machinery installations where shifting loads or transit could otherwise disrupt data.
• Enhanced electrical isolation for safety and reliability: The device features 2kV triple isolation, safeguarding connected equipment and networks from surges, transient events, and ground loops, which helps protect critical control systems and prolongs equipment life in mixed-power environments.
• Flexible power options and simple upgrade path: Powered by a wide 10-48 VDC input, the unit accommodates diverse industrial power supplies and systems. Its design emphasizes easy maintenance, including a straightforward replacement path for high-speed serial components to minimize downtime during upgrades or repairs.

Technical Details of B&B HEAVY INDUSTRIAL RS232 TO RS485 CONVERTER

• Standards and compliance: IEEE-61850-3 and IEEE 1613 compliant for robust substation and industrial network interoperability
• Operating temperature: -40°C to 85°C
• Enclosure and ruggedness: IP30 rated, metal panel-mount housing designed for harsh environments
• Mechanical durability: 50G shock resistance and 4G vibration tolerance
• Electrical isolation: 2kV triple isolation to protect devices and networks from surges
• Power requirements: 10-48 VDC input
• Interface and conversion: RS232 to RS485 serial conversion for reliable, long-distance communications
• Reliability and performance: Designed for high-speed data transfer with emphasis on error-free transmission
• Maintenance: High-speed serial adapter is designed for easy replacement to minimize downtime

How to install B&B HEAVY INDUSTRIAL RS232 TO RS485 CONVERTER

Installing this converter is straightforward and designed to minimize downtime in demanding environments. Begin by powering down all connected equipment and ensuring power sources are isolated. Choose a secure panel or enclosure location with adequate ventilation to prevent overheating. Mount the unit in the panel using the provided hardware, ensuring solid grounding and protection from mechanical stress. Connect the RS232 device to the converter’s RS232 interface and wire the RS485 network to the RS485 interface according to your topology, keeping RS485 cabling twisted-pair and properly shielded where possible. Apply 10-48 VDC power from a suitable industrial supply and verify correct voltage at the input before powering on. After wiring, recheck connections for any loose terminals or signs of strain relief issues. Power up the system and perform a functional test to confirm data integrity and communication with all connected devices. For best results, maintain short, clean cable runs, observe shielding practices, and avoid introducing EMI sources near the converter. If replacing an existing serial adapter, plan a maintenance window to swap units quickly and verify network stability post-installation.

Frequently asked questions

• Q: What is the primary function of this converter?

  A: It converts RS232 serial signals to RS485, enabling robust, long-distance, multi-device communication within industrial networks while providing rugged protection and compliance with key standards.

• Q: In what environments can I expect reliable operation?

  A: It is designed for industrial environments with wide temperature variations, vibration, and electrical noise, including substations, manufacturing floors, and harsh outdoor settings, thanks to its -40°C to 85°C range, IP30 enclosure, and rugged construction.

• Q: How is power supplied to the device?

  A: The converter accepts a versatile 10-48 VDC input, allowing integration with a wide range of industrial power supplies and backup power configurations.

• Q: Does it support IEEE standards?

  A: Yes—it's designed with compatibility for IEEE-61850-3 and IEEE 1613, ensuring reliable performance in automation, energy, and control networks that rely on these specifications.

• Q: How easy is it to replace or upgrade components?

  A: The high-speed RS485/RS232 interface is designed for straightforward replacement, enabling quick maintenance and minimal downtime when upgrades or service are required.
