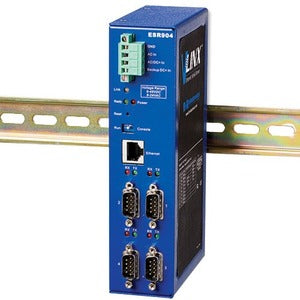

B+B SmartWorx 4 Port Ethernet Serial Server

The B+B SmartWorx ESR 4-Port Ethernet Serial Server is a rugged, reliable bridge that brings legacy serial devices into modern IP networks. Perfect for factory floors and control rooms, this device converts Ethernet to RS-232, RS-422, or RS-485, enabling seamless communication with PLCs, CNC machines, HMI panels, and other industrial equipment that still rely on traditional serial interfaces. With four independent ports, scalable deployment options, and industrial-grade construction, it simplifies integration, boosts data visibility, and supports efficient remote diagnostics and control across your LAN.

• Versatile four-port serial platform: Each of the four ports can be configured for RS-232, RS-422, or RS-485, allowing you to match the exact electrical and distance requirements of your devices without extra adapters or converters.
• Industrial Ethernet bridge for automation: By bridging your serial devices to the Ethernet network, you gain centralized monitoring, data logging, and remote access. This ESR supports network protocols commonly used in industrial environments, enabling smooth interaction with PLCs, CNCs, HMIs, and other equipment over TCP/IP, UDP, and Telnet sessions.
• Remote management and diagnostics made easy: A web-based configuration interface plus command-line options give you full control over port mappings, serial parameters, and network settings. Quick status indicators and diagnostic tools help identify issues before they impact production, reducing downtime and maintenance time.
• Rugged, flexible installation: Built for harsh industrial environments, the ESR is designed for easy mounting on DIN rails or wall surfaces in control cabinets, machine rooms, or field deployments. It’s compact, reliable, and engineered to withstand typical factory temperatures and vibrations.
• Future-ready integration for Industry 4.0: Turn legacy serial devices into network-enabled assets, enabling centralized data collection, remote operation, and enhanced production visibility across multiple locations. This makes it easier to implement SCADA, MES, or IoT strategies without replacing existing serial equipment.

Technical Details of B+B SmartWorx 4 Port Ethernet Serial Server

• Serial ports: 4 independent channels with per-port configuration for RS-232, RS-422, or RS-485 to match diverse equipment interfaces.
• Networking interface: 10/100 Mbps Ethernet connection for fast, reliable LAN access and remote communication with networked devices.
• Protocols and control: Supports TCP/IP, UDP, Telnet, and RFC 2217 for remote port management, data transport, and flexible integration with SCADA and automation systems.
• Mounting and enclosure: DIN-rail and wall-mount compatibility to fit small control panels, enclosures, or cabinet layouts typical of industrial facilities.
• Power and environment: DC-powered industrial device designed to operate in challenging environments; exact voltage and environmental specifications depend on SKU, with rugged construction to support long-term uptime.

How to Install B+B SmartWorx 4 Port Ethernet Serial Server

• Choose a secure, ventilated installation location in or near the equipment you’re integrating. Mount the ESR on a DIN rail or wall-mount it to fit your panel layout.
• Connect up to four serial devices to the ESR ports using appropriate cables configured for RS-232, RS-422, or RS-485. Ensure proper grounding and cable routing to avoid interference.
• Run an Ethernet cable from your network switch or router to the ESR’s LAN port. Verify the network path to your IT or OT network to ensure seamless data flow.
• Apply the correct DC power supply according to your SKU’s specifications. Confirm power stability to prevent interruptions during operation.
• Access the ESR’s web interface (or use RFC2217 clients) to configure port mappings, serial settings (baud rate, data bits, parity, stop bits, and flow control), and network options. Save the configuration, reboot if required, and test each port by communicating with the connected devices. Use built-in diagnostics to verify link status, error counters, and data throughput, then fine-tune as needed for optimal performance.

Frequently asked questions

• What is the B+B SmartWorx 4 Port Ethernet Serial Server?
  A four-port Ethernet-to-serial bridge that enables RS-232, RS-422, and RS-485 devices to communicate over a standard Ethernet LAN. It provides remote access, data collection, and control for industrial equipment.
• How many serial ports does it have?
  It includes four independent serial ports, each configurable to the appropriate serial standard for your devices.
• Which devices can I connect?
  Industrial equipment such as PLCs, CNC machines, HMI panels, sensors, and other serial devices that require RS-232/RS-422/RS-485 interfaces.
• What network protocols are supported?
  TCP/IP, UDP, Telnet, and RFC 2217 to facilitate remote management, data transport, and integration with IP networks and control systems.
• How do I configure the ESR?
  Use the built-in web interface or RFC2217 for port mapping and serial/network settings. Diagnostics and status pages help with troubleshooting and optimization.
• Is it suitable for industrial environments?
  Yes. The ESR is designed for rugged industrial deployments with mounting options and robust construction to withstand typical factory conditions.
