B+B SmartWorx 480W Single Output Industrial Din Rail With PFC Function

B+B SmartWorxSKU: 4294015

Price:
Sale price$323.77

Description

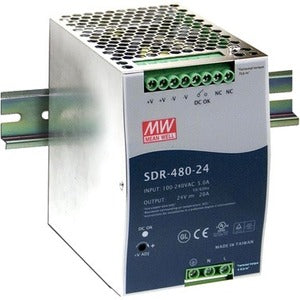

Experience reliable, industrial-grade power for automation panels with the B+B SmartWorx SDR-480-24. This 480-watt single-output DIN rail power supply delivers clean, stable 24 V DC to PLCs, motor drives, sensors, I/O modules, and other automation components. Built for harsh environments and continuous operation, it combines robust electrical protection, safety-conscious terminal design, and easy installation to minimize downtime in control enclosures. With universal input, active power factor correction (PFC), a DC OK relay, and peak-load capability, the SDR-480-24 is a dependable backbone for demanding industrial systems, whether in manufacturing, packaging, process control, or building automation.

  • 480 W continuous power at 24 V DC, capable of delivering up to 20 A to support demanding automation loads.
  • Universal input range (85–264 VAC) with 47–63 Hz operation, enabling worldwide use without voltage selection or transformers.
  • Active PFC for improved power factor, reduced input current distortion, and enhanced energy efficiency in commercial and industrial environments.
  • DIN-rail mounting with touch-guard screw terminals for safe, quick wiring and clean panel integration.
  • Integrated protections including short-circuit, overload, overvoltage, and thermal protection, plus a DC OK relay contact for remote monitoring and alarms.

Technical Details of SDR-480-24

  • Model: SDR-480-24
  • Output: 24 V DC, up to 20 A (480 W)
  • Input: Universal 85–264 VAC, 47–63 Hz
  • Efficiency: High efficiency with active PFC, minimizing heat and energy loss
  • Power factor: Active PFC to meet modern harmonic standards
  • Protections: Short-circuit protection, overload protection, overvoltage protection, and thermal protection
  • Monitoring: DC OK relay contact for remote status indication
  • Indicators: Power-on indicator for quick system health checks
  • Connectors: Touch-guard screw terminals for safe, reliable field wiring
  • Mounting: DIN rail mountable enclosure for standard TS-35 rails
  • Operating environment: Suitable for industrial environments and panel installations
  • Temperature range: Designed for typical industrial operating temperatures with thermal protection
  • Certifications: Common industry certifications (UL/CE/ RoHS family compliance) for worldwide use

How to install SDR-480-24

  • Power down the control panel and verify there is no supply voltage present before wiring the unit.
  • Mount the SDR-480-24 on a standard DIN rail (TS-35) inside the enclosure, ensuring it sits securely and remains free of obstructions.
  • Connect the input wiring to the L and N terminals on the power supply, observing correct polarity and tightening screws to a secure connection. Connect Protective Earth (PE) if provided or required by local code.
  • Attach the output load to the 24 V DC (+V) and 0 V (-V) terminals, keeping wiring neat and within current ratings to avoid overheating.
  • Power up the cabinet and verify the Power-on LED illuminates. Check the DC OK relay contact status and ensure it is signaling proper output health to your controller or alarm system.
  • Test critical loads with a controlled inrush scenario to confirm peak-load tolerance and protective features respond as expected.
  • Document the installation with panel photos and wiring diagrams for future maintenance, and ensure cable management keeps inputs and outputs segregated from high-noise sources.
  • Regularly inspect terminal connections and enclosure ventilation to prevent heat buildup and maintain reliable operation in continuous-duty applications.

Frequently asked questions

  • Q: What is the output voltage and current rating?

    A: The SDR-480-24 provides a fixed 24 V DC output with a maximum current of 20 A, delivering up to 480 W of power for continuous operation.

  • Q: What input voltage does this supply accept?

    A: It features a universal input range of 85–264 VAC (47–63 Hz), allowing operation across most global electrical standards without external transformers.

  • Q: Does it include protection against electrical faults?

    A: Yes. The SDR-480-24 includes short-circuit protection, overload protection, overvoltage protection, and thermal protection to safeguard both the power supply and connected equipment.

  • Q: What safety features aid in wiring and maintenance?

    A: The unit uses touch-guard screw terminals for safer, tool-friendly field wiring, and a DC OK relay contact provides an easy way to monitor output health from a controller or alarm system.

  • Q: How is the unit installed in an enclosure?

    A: The SDR-480-24 is designed for DIN rail mounting in standard enclosures. It fits on TS-35 rails, making it straightforward to install alongside other DIN-rail components in a control cabinet.

  • Q: Is this supply suitable for peak-load conditions?

    A: Yes. The design includes peak-load capability to handle brief surge currents typical of motors, drives, and other inductive loads without tripping or dropping output, assuming the overall system remains within the unit’s 480 W rating.

  • Q: Are there any certifications?

    A: The SDR-480-24 carries common industrial certifications (such as UL/CE/RoHS family compliance) appropriate for use in global markets and regulated environments.
