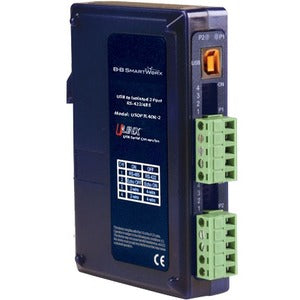

B+B SmartWorx Isolated USB to RS-422/485 Converter

Experience robust and reliable serial communication from your USB-enabled workstation to industrial devices with the B+B SmartWorx Isolated USB to RS-422/485 Converter. Designed for demanding environments, this compact adapter pairs a high-retention USB interface with advanced isolation and protection features, delivering safe, high-speed data transfer for automation, instrumentation, and control systems. With 3000 V optical isolation and 15 kV ESD protection, your critical equipment stays protected from ground loops, transients, and voltage spikes while maintaining fast, deterministic communication over RS-422 or RS-485 links. The USB bus-powered design means you won’t need an external power supply, simplifying deployment in tight spaces and field installations. This high-quality serial/USB adapter is built to endure industrial use and deliver dependable performance across a wide range of applications.

• 3000 V optical isolation shields your host and devices from hazardous transients, ensuring operator safety and protecting equipment in noisy industrial environments.
• 15 kV ESD protection guards the USB-to-serial bridge against electrostatic discharges, reducing the risk of damage during maintenance or in harsh settings.
• USB bus-powered operation requires no external power supply, enabling quick, cable-friendly installation on desktops, laptops, or embedded systems.
• RS-422/485 compatibility supports both differential point-to-point (RS-422) and multi-point (RS-485) serial networks for versatile communication topologies.
• Data rates up to 921.6 Kbps offer fast, reliable data transfer suitable for real-time monitoring, data logging, and control applications, while maintaining compatibility with common serial devices.

Technical Details of B+B SmartWorx Isolated USB to RS-422/485 Converter

• Data interface: USB to RS-422/RS-485 bridge enabling seamless connection between USB hosts and differential serial networks.
• Isolation: 3000 V optical isolation to separate power and signal domains, protecting equipment and operators from high voltage transients.
• ESD protection: Up to 15 kV protection to withstand electrostatic discharge events that can occur in industrial and laboratory environments.
• Data rate: Supports data rates up to 921.6 Kbps, balancing speed and reliability for a wide range of serial devices.
• Power: USB bus-powered, eliminating the need for an external power adapter and simplifying field deployments.
• Connector quality: High retention USB connector designed for rugged use in environments with vibration, plugging, and unplugging.
• Interface versatility: Suitable for both RS-422 and RS-485 networks, enabling flexible wiring and topology depending on application.

how to install B+B SmartWorx Isolated USB to RS-422/485 Converter

To install the converter, begin by identifying a free USB port on your computer, industrial controller, or embedded system. As a USB bus-powered device, it draws power directly from the host, so no separate power supply is required. Insert the USB connector into the port and allow the operating system to recognize the device. In most modern systems, this process is plug-and-play, and the converter will appear as a USB-to-serial interface without requiring a separate driver. If prompted, follow on-screen instructions to complete the setup or install the vendor-provided driver package if your operating system requests it.

Next, connect your RS-422 or RS-485 devices to the converter’s serial ports. For RS-422, use a point-to-point differential pair, observing the device’s data sheet for correct wiring conventions. For RS-485, ensure the network topology matches the device requirements—RS-485 networks typically use a daisy-chained, multi-point configuration with proper termination and biasing as needed by the network. Take care to maintain proper pair twisting and impedance where applicable to minimize noise and reflections on longer runs.

With the hardware connected, configure your host software or terminal program to use the assigned COM port, selecting the appropriate baud rate, data bits, parity, and stop bits that your target device requires. If you’re unsure of the exact serial settings, consult the device documentation or run a quick compatibility test with common configurations. On multi-device networks, ensure the software and hardware addressing match the intended endpoint, and verify one device at a time to isolate potential wiring or terminator issues. After configuration, perform a basic loopback or data test to confirm that the converter is transmitting and receiving correctly, and that the data integrity remains intact across the USB-to-serial bridge.

For long-term reliability, avoid exposing the converter to extreme temperatures, moisture, or mechanical stress beyond its intended operating range. When mounting in chassis, panels, or enclosures, use appropriate cable management and secure connections to minimize strain on the USB and RS-422/485 ports. If you encounter intermittent communication or unexpected errors, double-check wiring polarity, RS-422/RS-485 mode selection, and termination/biasing requirements of the connected devices. Keeping firmware, if available, up to date, and following the manufacturer’s recommendations will help maintain compatibility with evolving serial devices and host platforms.

In summary, installing the B+B SmartWorx Isolated USB to RS-422/485 Converter is a straightforward, driver-light process that leverages USB plug-and-play functionality, optical isolation for safety, and a flexible RS-422/485 interface. With proper wiring and correct serial settings, you can quickly establish fast and secure serial communications between a host computer and a broad range of industrial peripherals, sensors, and controllers.
